Electrical connections
Instruction handbook bmaXX 5000
Document No.: 5.09021.19 Baumüller Nürnberg GmbH
164
of 346
7.14
7.14 Electrical connections
7.14.1 Electrical connections of the BM50XX-XX0X-... without safety function

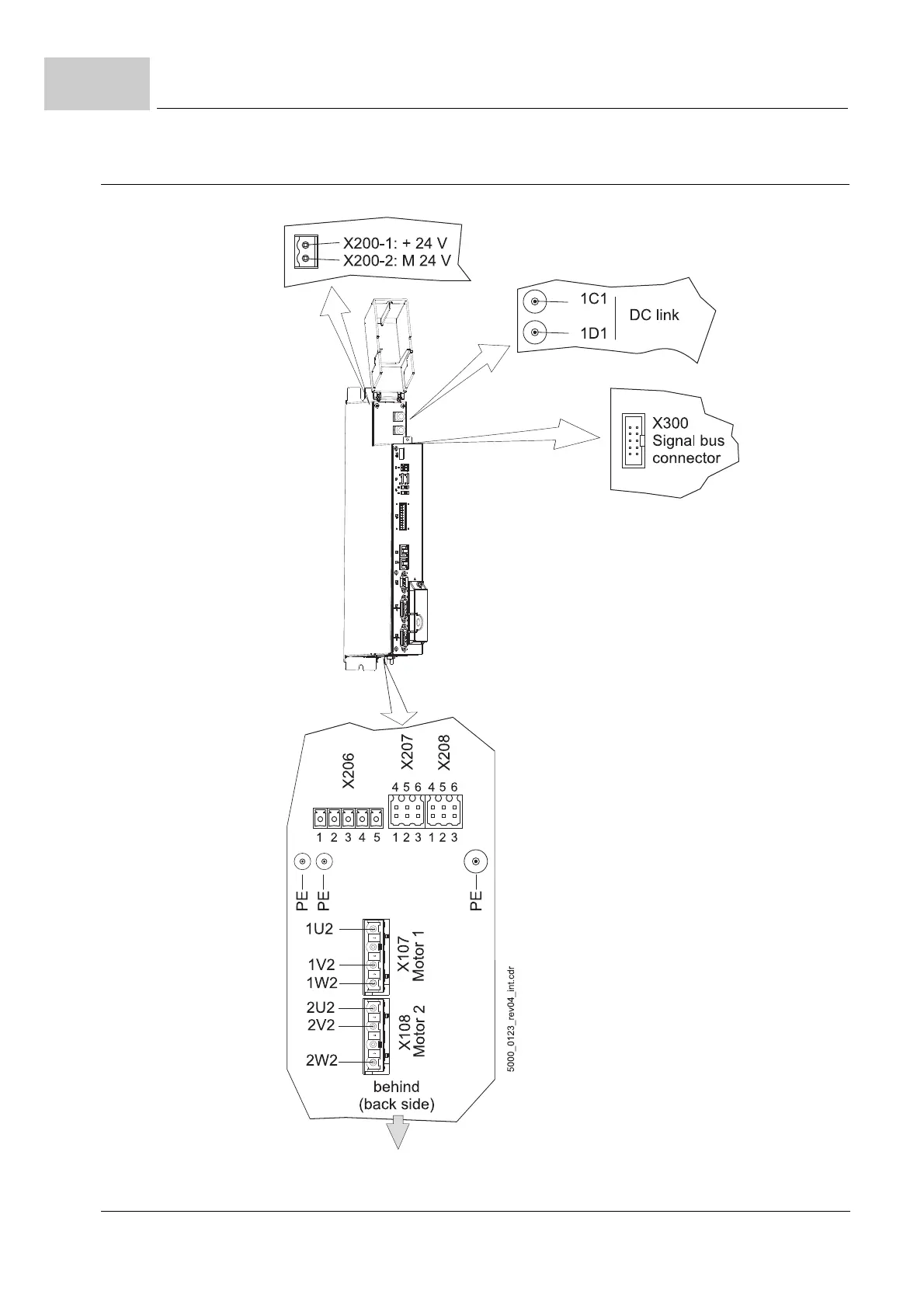

Figure 80: Electrical connections of the BM503, BM504XX without safety function
NOTE!
Description of BM5030 with safety function BM5030-XX2X-...
see ZD.6 Electrical connections BM5030 with safety function– as from page 330.
Error
External
brake
resistor
NOTICE:
Connection for
external brake
resistor, only.
Do not connect
an additional
capacitance.
Supply
