Baumuller b maXX 5000 - Page 163

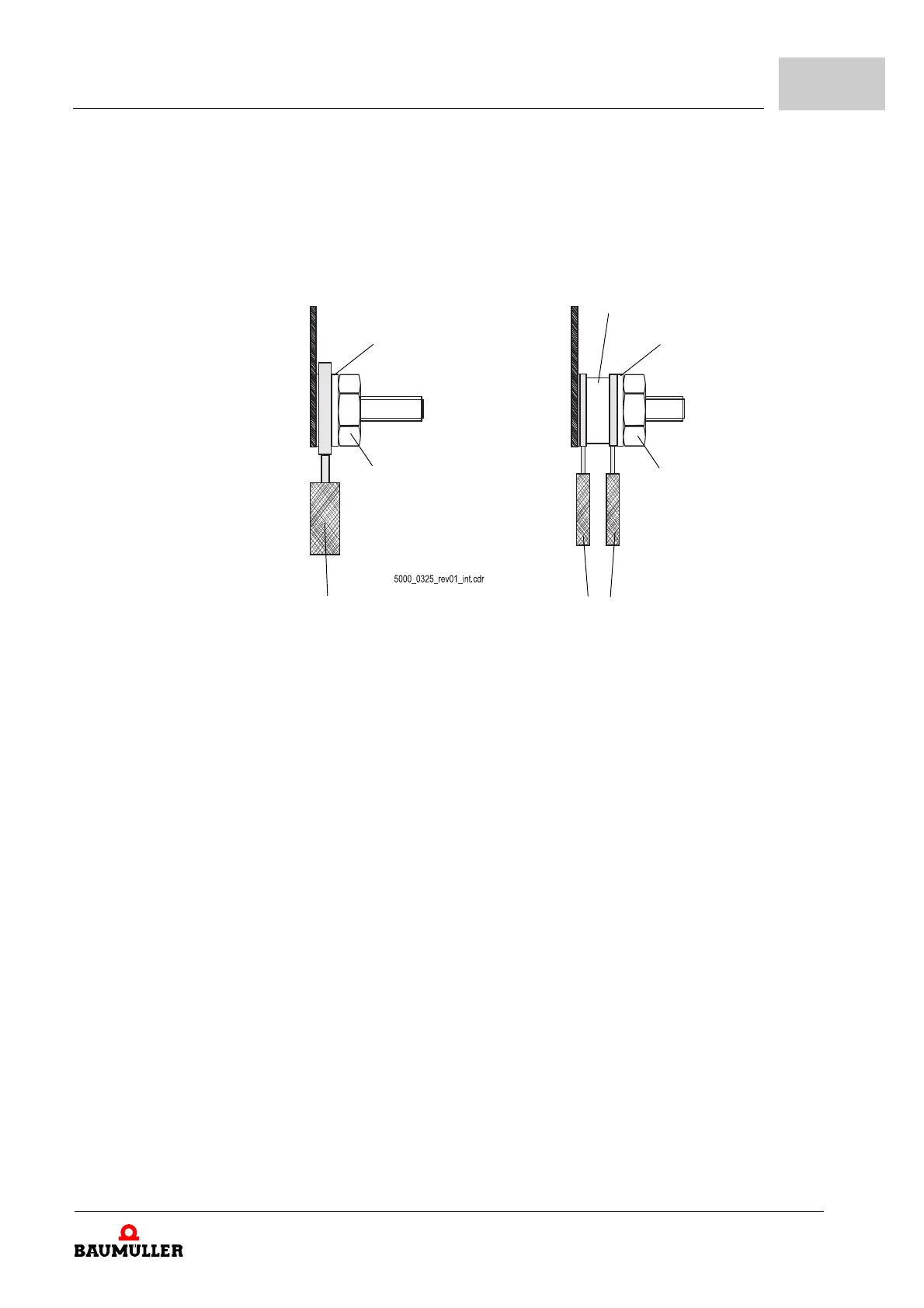

Installation
Instruction handbook bmaXX 5000
Document No.: 5.09021.19
163
of 346
7
1C1, 1D1 Connections for the DC link, see ZFigure 88– on page 172.
X2 Connections for pulse enable, etc. see ZX2 Digital inputs/outputs– on page 185
X7 Encoder evaluation 1
X8 Encoder evaluation 2
X107 BM5323, BM5325
Motor connection 1
BM5331, BM5332, BM5333
Motor connection 1 and 2
X108 BM5323, BM5325
Motor connection 2
X200 Connections for 24 V voltage supply; for additional information, see ZFigure 88– on page 172
(SELV/PELV).
X206 Connection for 24 V voltage supply for the motor brake, see Table X206 on Zpage 176–. For
connector assignment see ZX206/X207/X208– as from page 212.
X207 Connections for motor temperature and motor brake of motor 1, see table X207 on Zpage 177–.
For connector assignment see ZX206/X207/X208– as from page 212.
X208 Connections for motor temperature and motor brake of motor 2, see table X208 on Zpage 177–.
For connector assignment see ZX206/X207/X208– as from page 212.
X300 Signal bus
