Installation
Instruction handbook b maXX 5000
Document No.: 5.09021.16
143
of 328
7

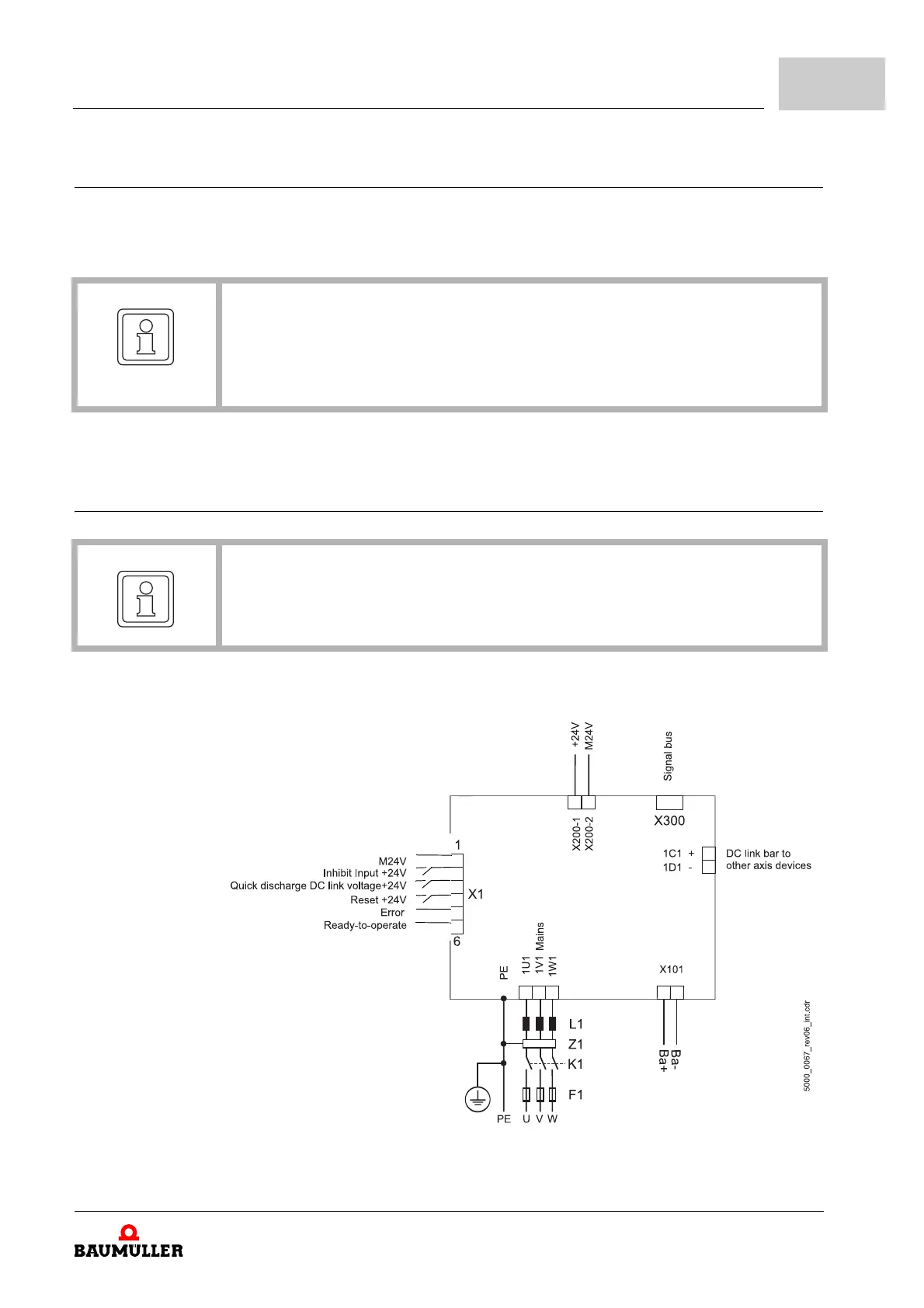

7.13 Connection diagrams
The connection diagrams are separated in connection diagrams for the electrical mains,
motor etc., Zpa
ge 145 and the front side connections Zpage 171.
NOTE!
The identifiers 1C1 and 1D1 were taken over from DIN EN 60445. 1C1 is the connec-
tion to the positive DC link cable/b
ar, and in the past was identified by Baumüller in
some devices as ZK+. 1D1 is the connection to the negative DC link cable/bar, and
in the past was identified by Baumüller in some devices as ZK-.
7.13.1 Connection diagram of BM50XX-XX0X-... mains rectifier without safety function
NOTE!
Description of BM5030 with safety function BM5030-XX2X-...
see ZC.5
Connection diagram BM5030 with safety functionas from page 308.
BM50XX-XX00 Normally open contact expected on the inhibit input.
NOTICE:
Connection for
external brake
resistor, only.
Do not connect
an additional
capacitance.
External brake
resistor
Figure 64: Connection diagram for the BM50XX-XX00 without safety function
