Connection diagrams
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
144
of 328
7.13
BM50XX-XX01 Normally closed contact expected on the inhibit input.
NOTICE:
Connection for
external brake
resistor, only.
Do not connect
an additional
capacitance.
External brake
resistor

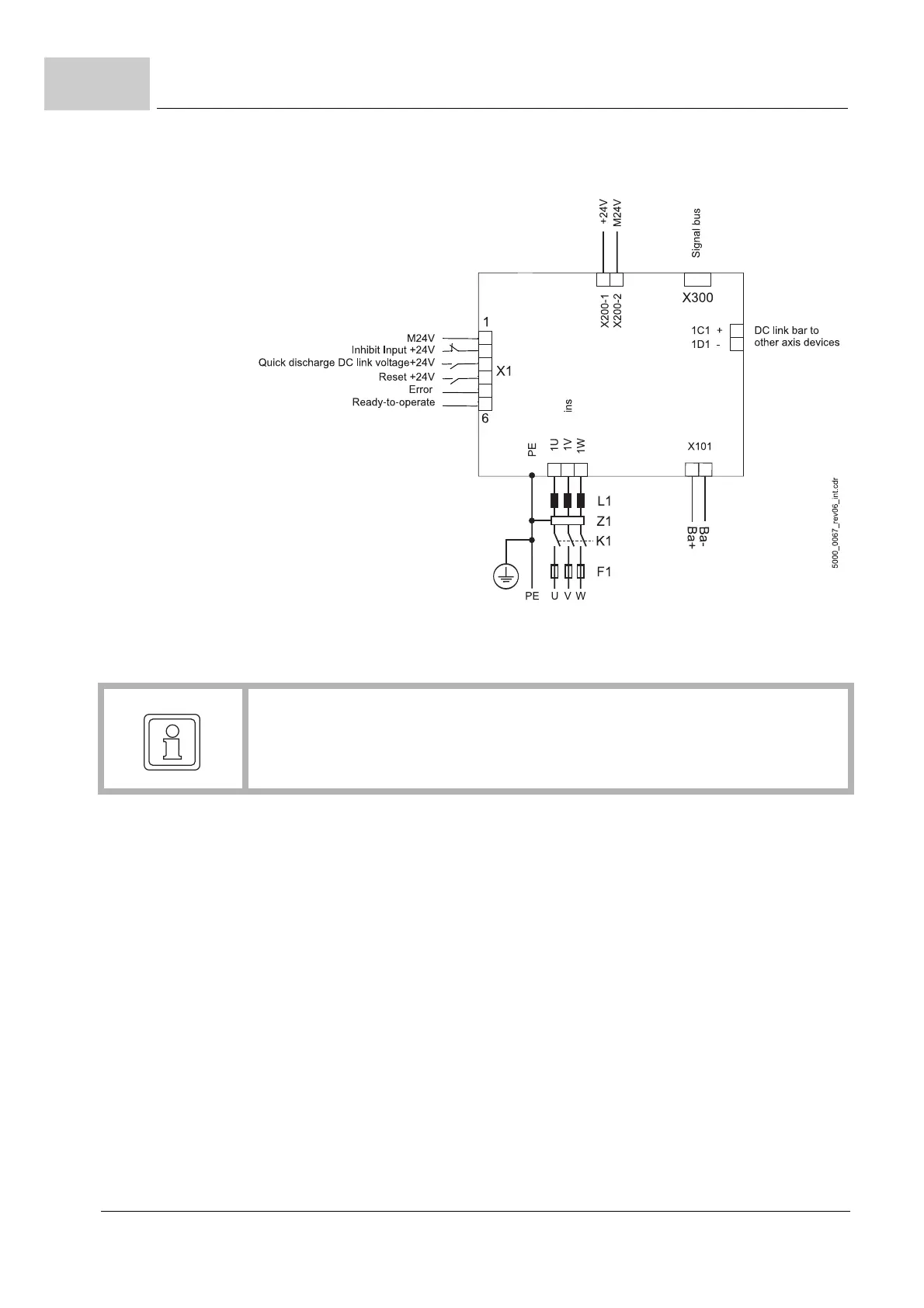

Figure 65: Connection diagram for the BM50XX-XX01 without safety function
NOTE!
The use of a power choke (L1) is mandatory for the function of the mains rectifier unit.
An operation without power choke is not allowed.
1C1, 1D1 Connections for the DC link, see ZFig
ure 74– on page 157.
PE Power supply PE-connection
1U1, 1V1,
1W1
Power supply connection, see ZFigu
re 74– on page 157.
F1 Fuses (cable + device)
L1 Power choke
Z1 Line filter
K1 Main contactor (option)
X200 Connections for 24 V voltage supply; for additional information, see ZFigu
re 74– on page
157 (SELV/PELV).
X1 Control inputs and outputs, for additional information see ZFigu
re 74– on page 157 and
ZElectrical con
nections of the BM50XX-XX0X-... without safety function– on page 157.
X300 Signal bus
X101 Brake resistor
