Baumuller b maXX 5000 User Manual

Spare parts
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
282
of 328
11.6

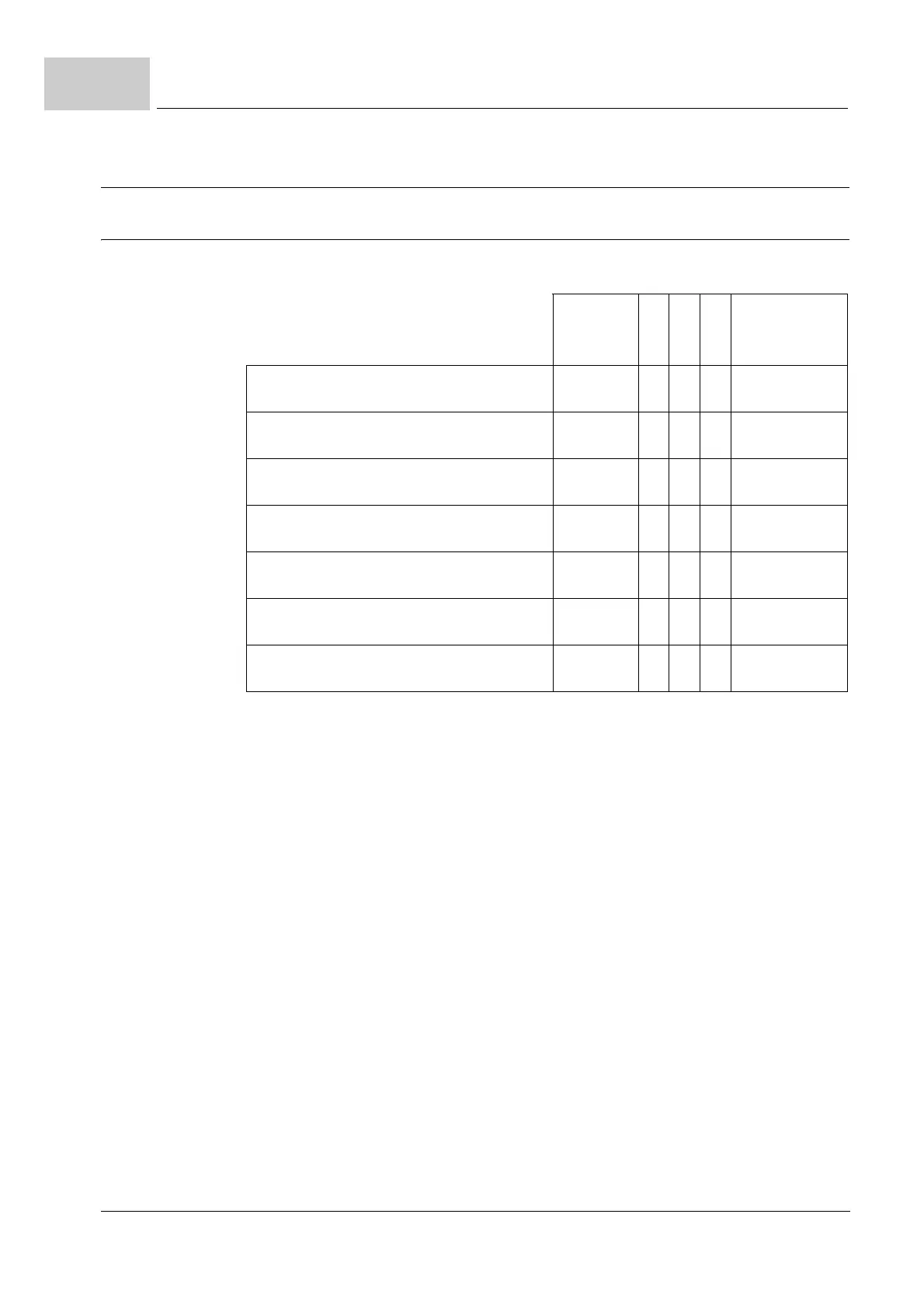

11.6 Spare parts
11.6.1 Plug connectors
(Active) mains
rectifier unit
Stripping length BM503X BM504X BM51XX   Part No.
Connector X200
Wago 231-2302
9 - 10 mm X X X 417197
Connector „Ba+/Ba-“ X101
Phoenix SPC5/2-STCL-7.62, 1718481
15 mm X - - 425794
Connector „Ba+/Ba-“ X101
Phoenix IPC16/2-STF-10.16
12 mm - X - 424416
Connector „RD+/RD-“ X101
Phoenix GIC 2.5 HCV/2-ST-7.62
8 mm - - X 428716
Connector DIO X2
Weidmüller Push-In
7 mm - - X 479956
Connector DIO X1
Phoenix FK-MCP1.5/6-ST-3.81, 1851083
9 mm X X - 354874
Ribbon cable bracket
Richco FCCS-2
X X X 430152
