Baumuller b maXX 5000 User Manual

BM5030 with Safety Function
Instruction handbook b maXX 5000
Document No.: 5.09021.16
313
of 328
B
C.6.2 Connections front side BM5030 with safety function
X1 Digital inputs / outputs
BM5030-XX2X-...
X1 Digital inputs/outputs
1:M
24V
2: Inhib
it input
3: Reserv
ed
4:
Reset
5: Error
6: Ready-to-operate

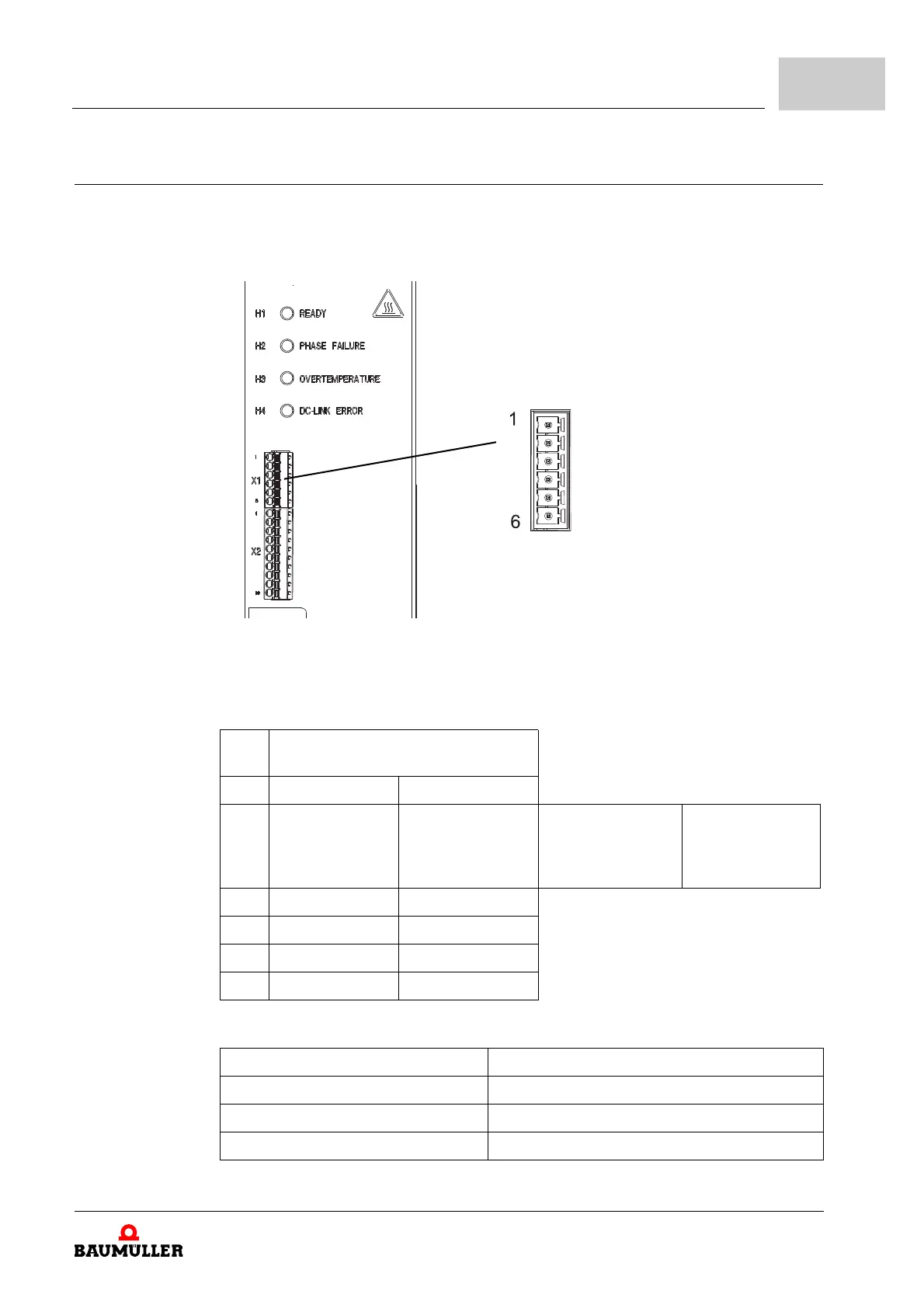

Figure 131: Connection X1 front side BM5030 with safety function
Pin assignment
Pin
No.
Assignment
1 Dig. input/output GND 24 V
2 Digital input Inhibit input
1)
BM5030-XXX0
input is high active,
expe
cts 
NO contact
BM5030-XXX1
input is low active,
expe
cts 
NC contact
3 Digital input Reserved
4 Digital input Reset
5 Digital output Error
6 Digital output Ready-to-operate
Input current per input 7 mA
Input level High (12 … 28 V)
Output current per output 500 mA
Output level High (12 … 28 V)
