1)
In case of power supply failure ((0.9 - 0) x U
AC
for t > 0.1 s), the error „Power unit not ready-to-operate“ is generated.
2)
The rated voltage is 400 V. At an power supply voltage of less than 400 V the output power of the device is reduced, refer to correction
values at changed operation conditions ZC
orrection values input voltage– on page 52.
3)
The control voltage must correspond to PELV (EN 61800-5-1, chapter 3.21) or SELV (EN 61800, chapter 3.35). With a control voltage
< 24 V the fan output is reduced. Thus, it could be necessar
y to reduce the output current. If UL 508C is being considered, the current
is limited to 4 A (with fuses, in accordance with UL 248) and to a voltage of max. 30 V
DC
.
4)
Only necessary to comply with UL 508C, refer to ZUL notes– as from page 88.
5)
Change speed of the mains frequency max. 1 Hz/s (EN 61000-2-4, Class 3)
6)
The connection and/or operation of a device with the identifier BM5XXX-XTXX on IT mains or grounded delta mains is not allowed.
7)
NOTE!
The distortion factor of the input cur
rent of following devices
BM50XX-XR /XS /XW ,, is at least twice as m
uch the factor at operation with power choke.
The user has to check with the local power supplier whether
an operation without power choke is allowed.
3.3.2 Requirements for control voltage / 24 V power supply

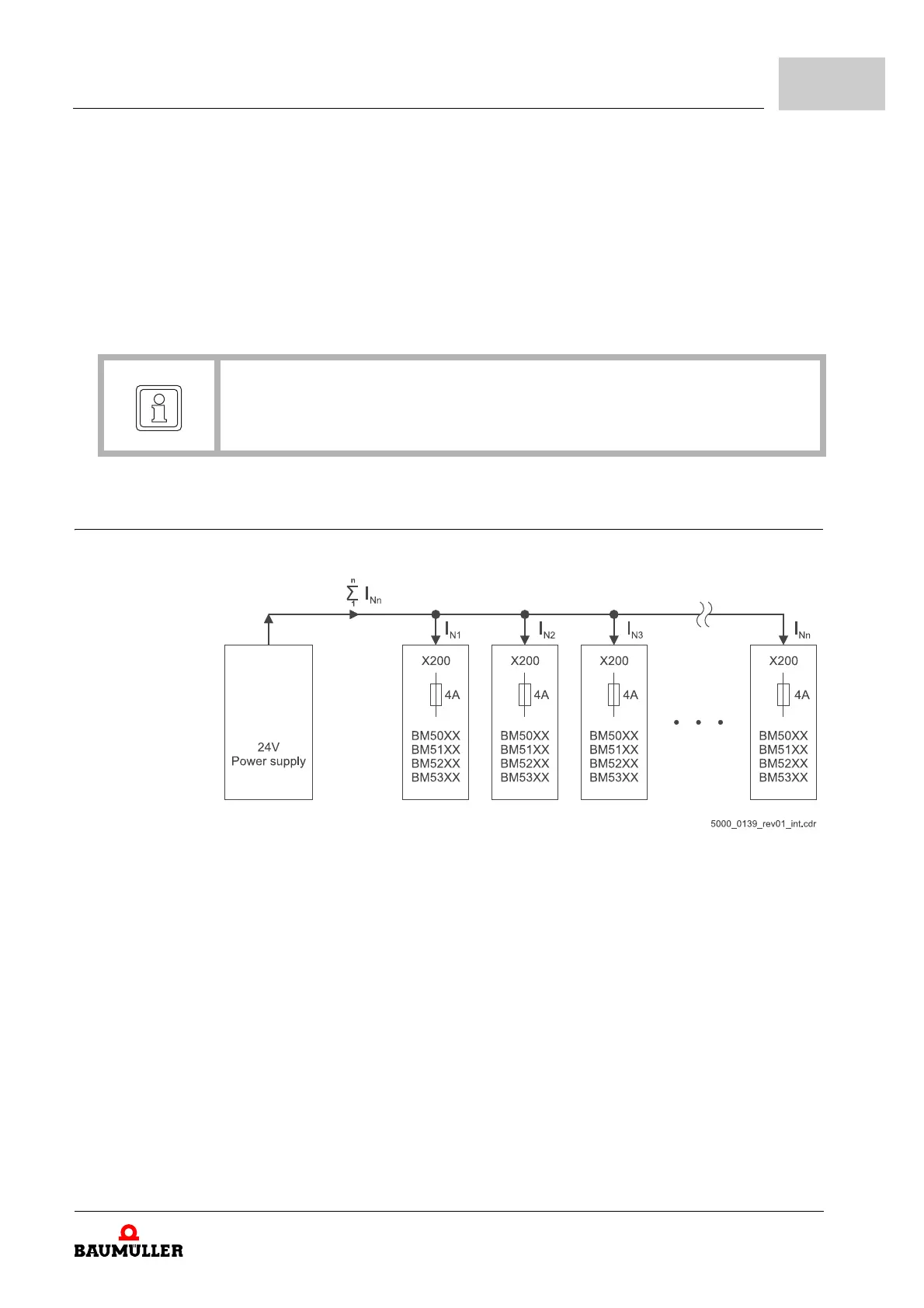

Figure 17: Control voltage / 24 V power supply
The power supply unit for the 24 V voltage supplied must provide at least the rated output
that corresponds to the total 24 V power consumption of all dev
ices of the rack system.
