Timing diagrams BM50XX
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
208
of 328
8.2
m
Power supply
X1:5 Error
X1:6 Ready-to-operate
150 ms
t < 10 s
X300:1 Signal bus ready-to-operate
X300:2 Signal bus phase failure
300 ms
One period
Depending on the loading
state of the DC link
1)
of power supply
1,2 s bis 3,2 s
Using a BM5030:
1,2 s < T < 6 50  C
int
C
ext
+1s+
Short power failure (< 10 s)

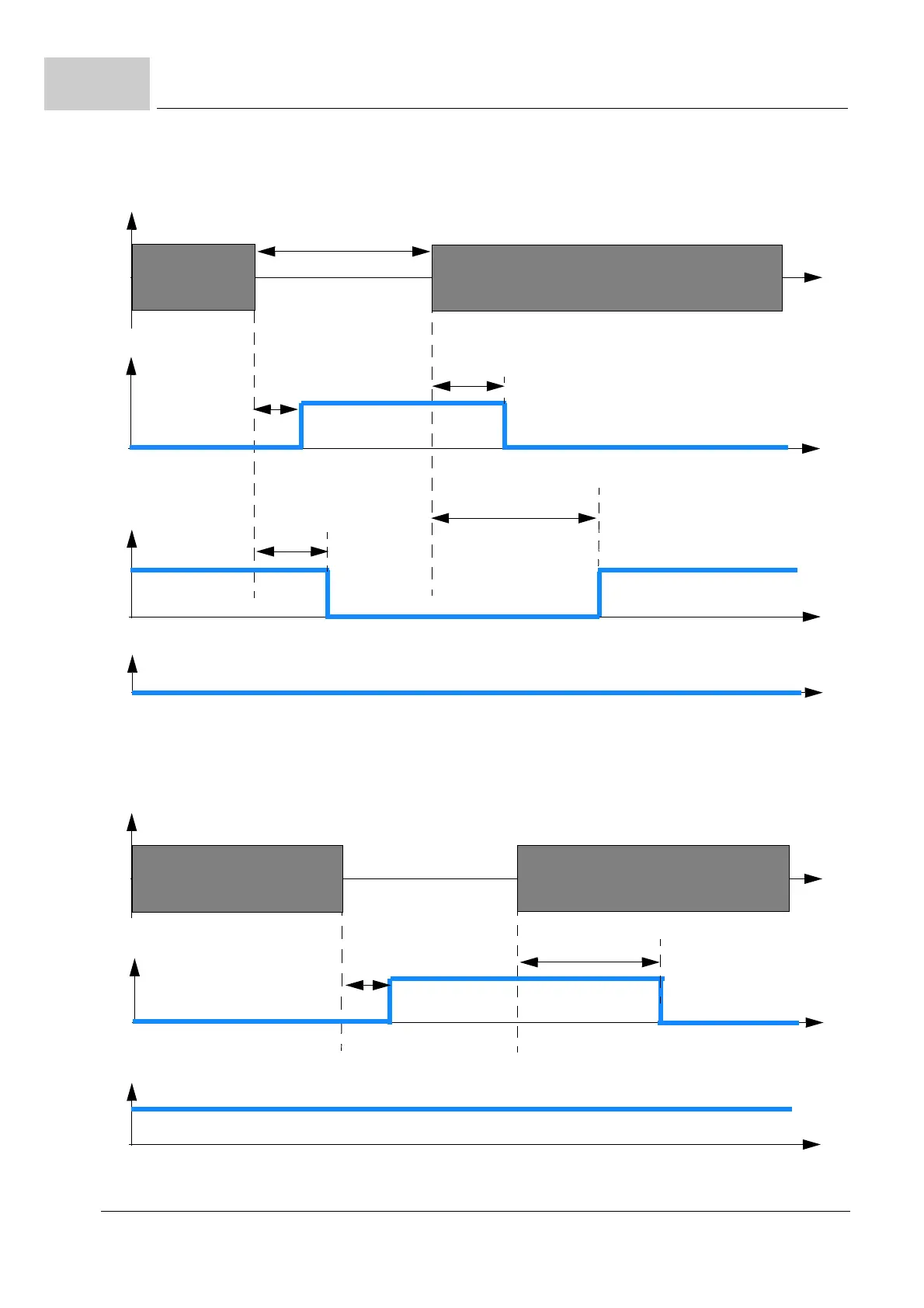

Figure 95: Timing diagram short power failure (< 10 s)
m Phase failure
Voltage e.g. at phase 1U1-N
X1:6 Ready-to-operate
X300:2 Signal bus phase failure
One period
of power supply
X300:1 Signal bus ready-to-operate
10 periods
of power supply
Figure 96: Timing diagram phase failure signal bus
