Timing diagrams BM50XX
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
210
of 328
8.2
m Error acknowledge in case of power recovery
Power supply
X1:6 Ready-to-operate
X1:5 Error
150 ms
Using a BM50XX-XXX1
The power supply was not available more than10 s or
another error was generated,
but is not active anymore.
X300:1 Signal bus ready-to-operate
X300:2 Signal bus phase failure
320 ms
Depending on the loading
state of the DC link
1)
1,4 s bis 3 s
Using a BM5030:
1,4 s < T < 6 50  C
int
C
ext
+1s+

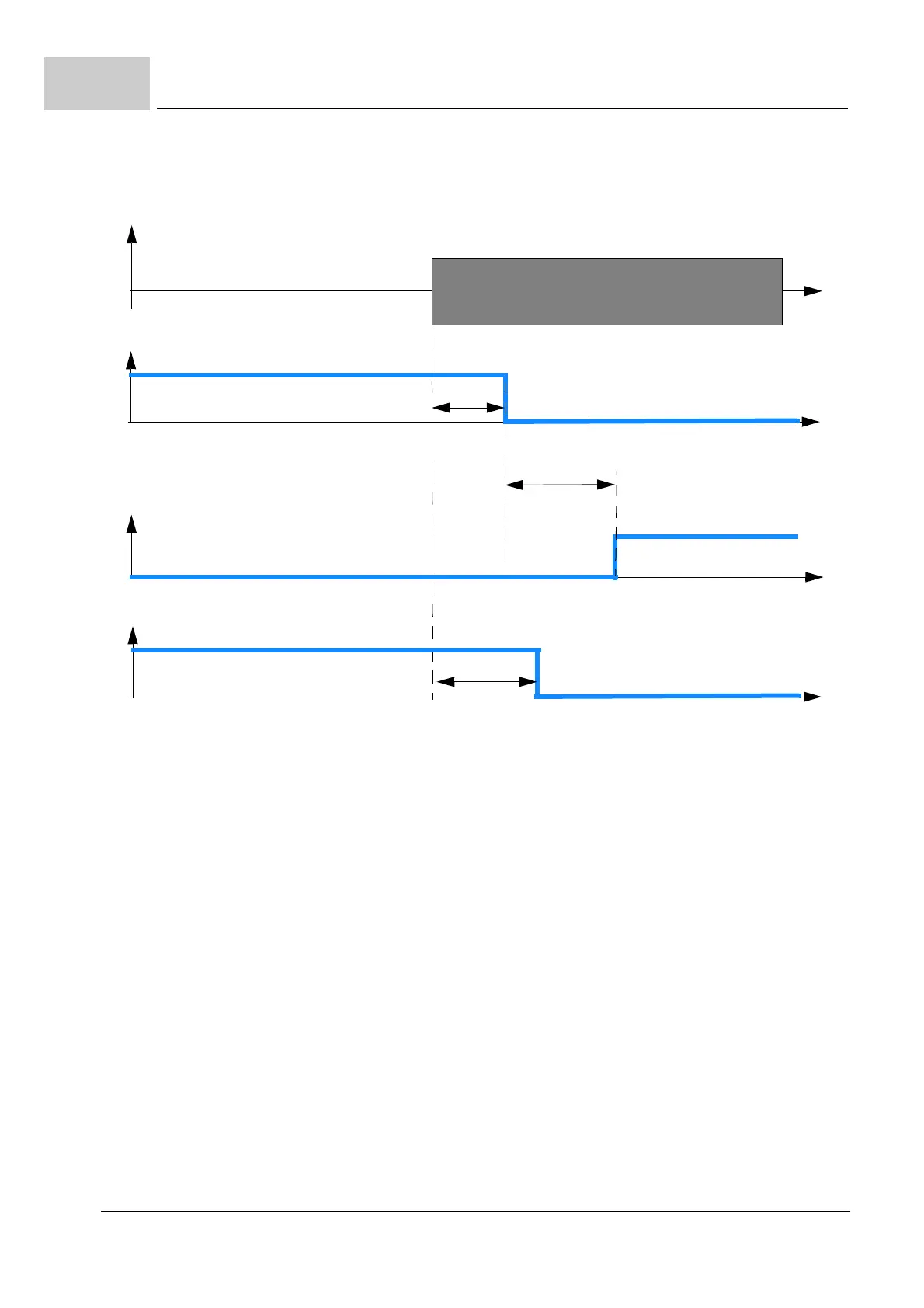

Figure 98: Timing diagram error acknowledge at power recovery BM50XX-XXX1
1)
The length of the time period until the Ready-to-operate signal is available again depends on the loading
state of the DC link. The higher the DC link voltage has been, the shorter the time period until the returning
of the Ready-to-operate signal will be.
