Operation
Instruction handbook bmaXX 5000
Document No.: 5.09021.19
225
of 346
8
m Inhibit input X1:2

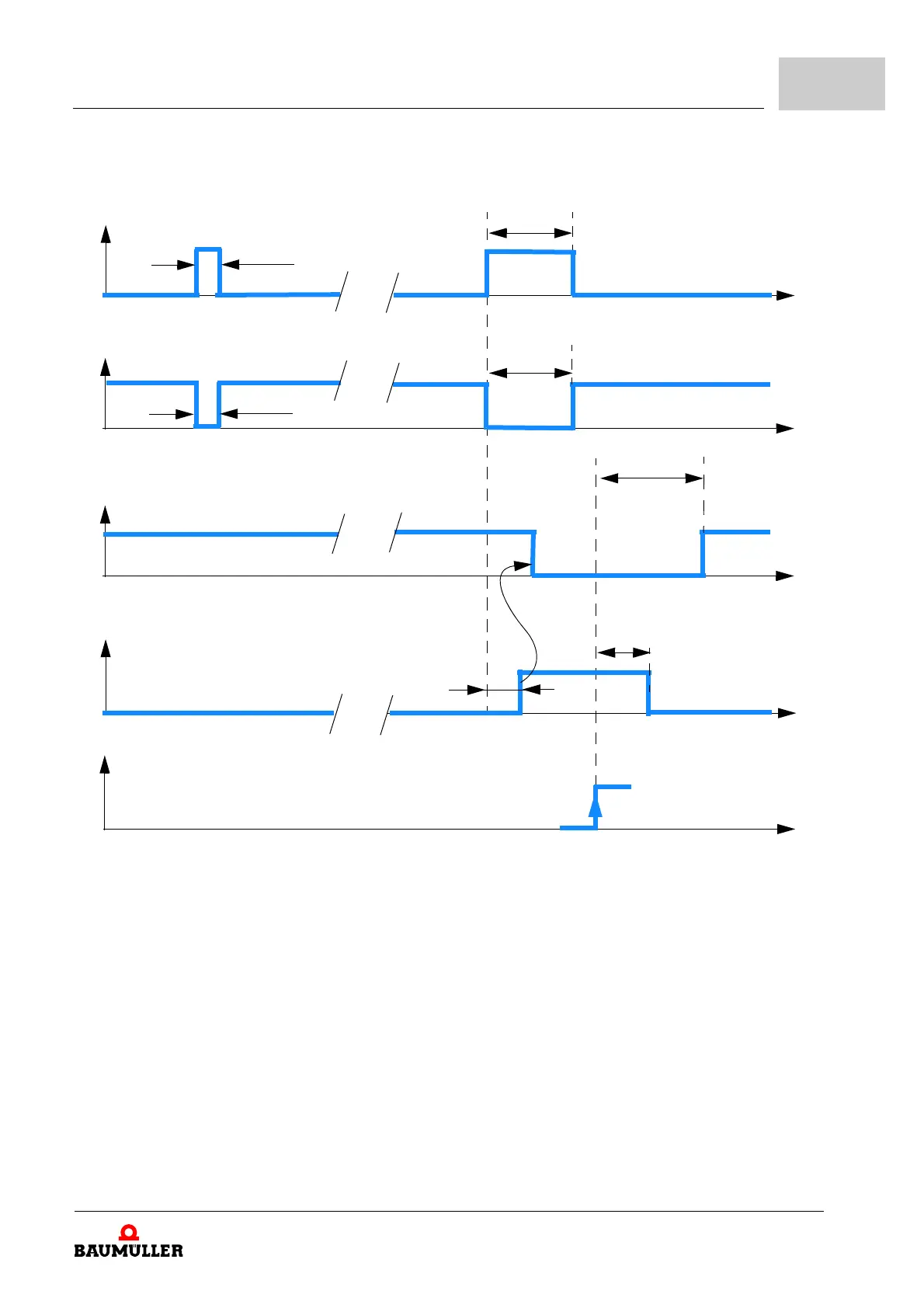

Figure 108: Timing diagram Inhibit input X1:2
1)
The length of the time period until the Ready-to-operate signal is available again depends on the loading
state of the DC link. The higher the DC link voltage has been, the shorter the time period until the returning
of the Ready-to-operate signal will be.
X1:5 Error
X1:6 Ready-to-operate
X1:2 Inhibit input at BM50XX-XXX0
< 1 s
> 1 s
X1:2 Inhibit input at BM50XX-XXX1
1 s
100 µs
240 ms
X1:4 Reset
X300:1 Signal bus ready-to-operate
< 1 s
> 1 s
Depending on
state of the DC link
1,2 s bis 3,2 s
Using a BM5030:
1,2 s < T < 6 50  C
int
C
ext
+1s+
the loading
