Baumuller b maXX 5000 User Manual

Cabling
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
244
of 328
11.1
m Motor cable with HIPERFACE DSL
®
15 A
Connect cable shield with the
housing of the connector.
Cable length
(according order)
Heat shrink tubing
400 mm
Data cable shielded
Connect the cable shielding
via the strain relief clamp
of the connector housing.
Pin 1
1
3
A
D
4
DSL- blue
DSL+ white
Pin 19 DSL-
Pin 20 DSL+
B+
B-
V
W
GN/GE
U

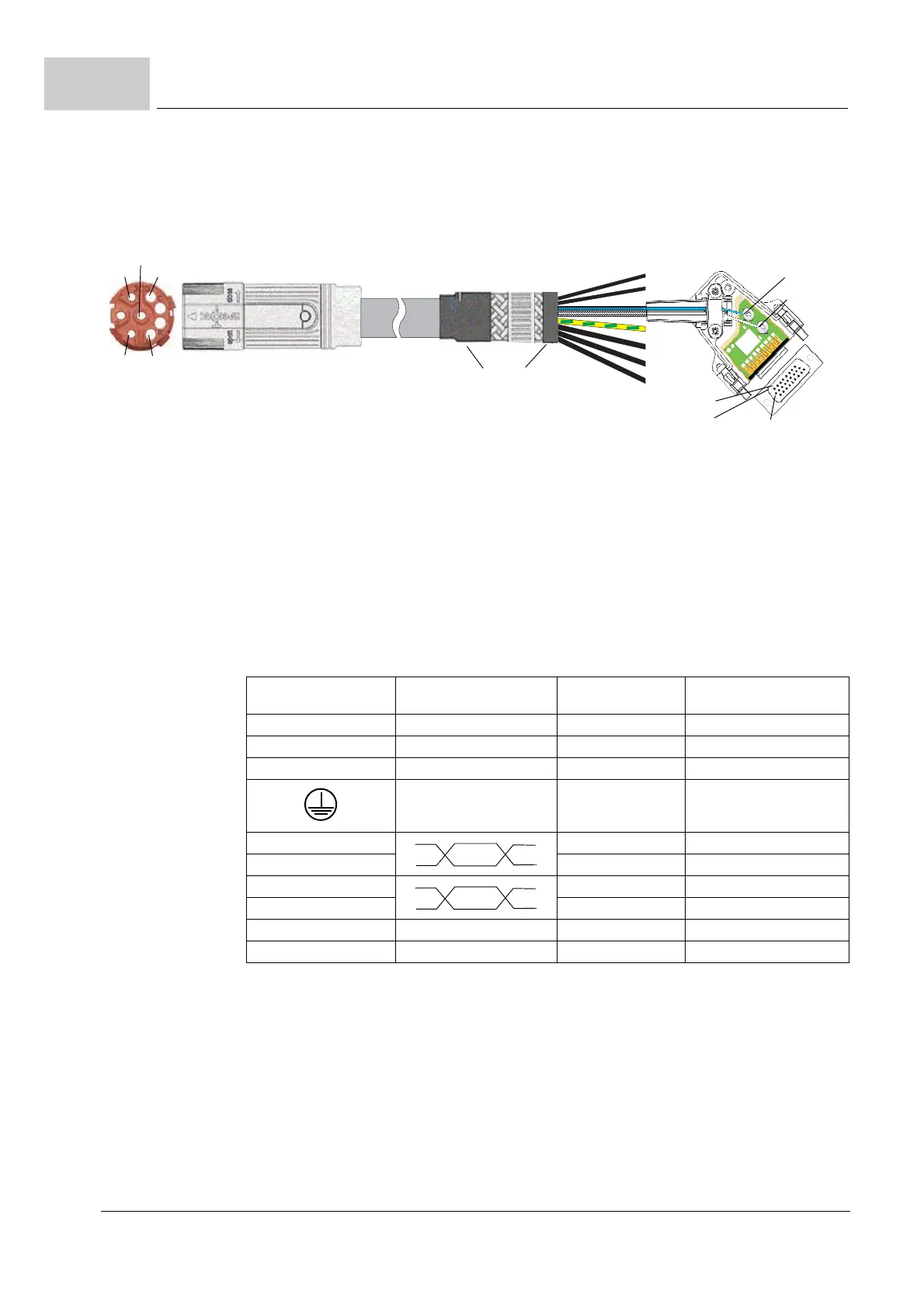

Figure 103: Motor cable with HIPERFACE DSL
®
15 A
Cable: 4G1.5+(2x0,75)+(2x22AWG)
Shielding: copper wires, tinned
Motor side: 
Circular metal connector speedtec
®
M23 8-pin
Connect outside shielding and inside sh
ielding with the connector housing.
Device side: 
Metal D-sub connector 45°, 26-pin with electronics, part No. 460219
Connect inside shielding with th
e connector housing.
Circular connector
speedtec
®
M23
Type of stranding Unconnected
wir
es
Cross section of wire
1
 U 1.5 mm² / black / U
3
 V 1.5 mm² / black / V
4
 W 1.5 mm² / black / W
 GN/GE 1.5 mm² / green-yellow
A
B+ 0.75 mm² / black
B B- 0.75 mm² / black
C
- 22 AWG / white
D - 22 AWG / blue
Housing - Outside shielding
Housing - Inside shielding
