Power chokes
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
280
of 328
11.5
BM5174
Marking Inductance Part number
BL-3-100-001 0.6 mH 430926
UL approval
The chokes are design-tested in accordance with UL (e.g. UL1561) and signified by the
„ú“
“ symbol.

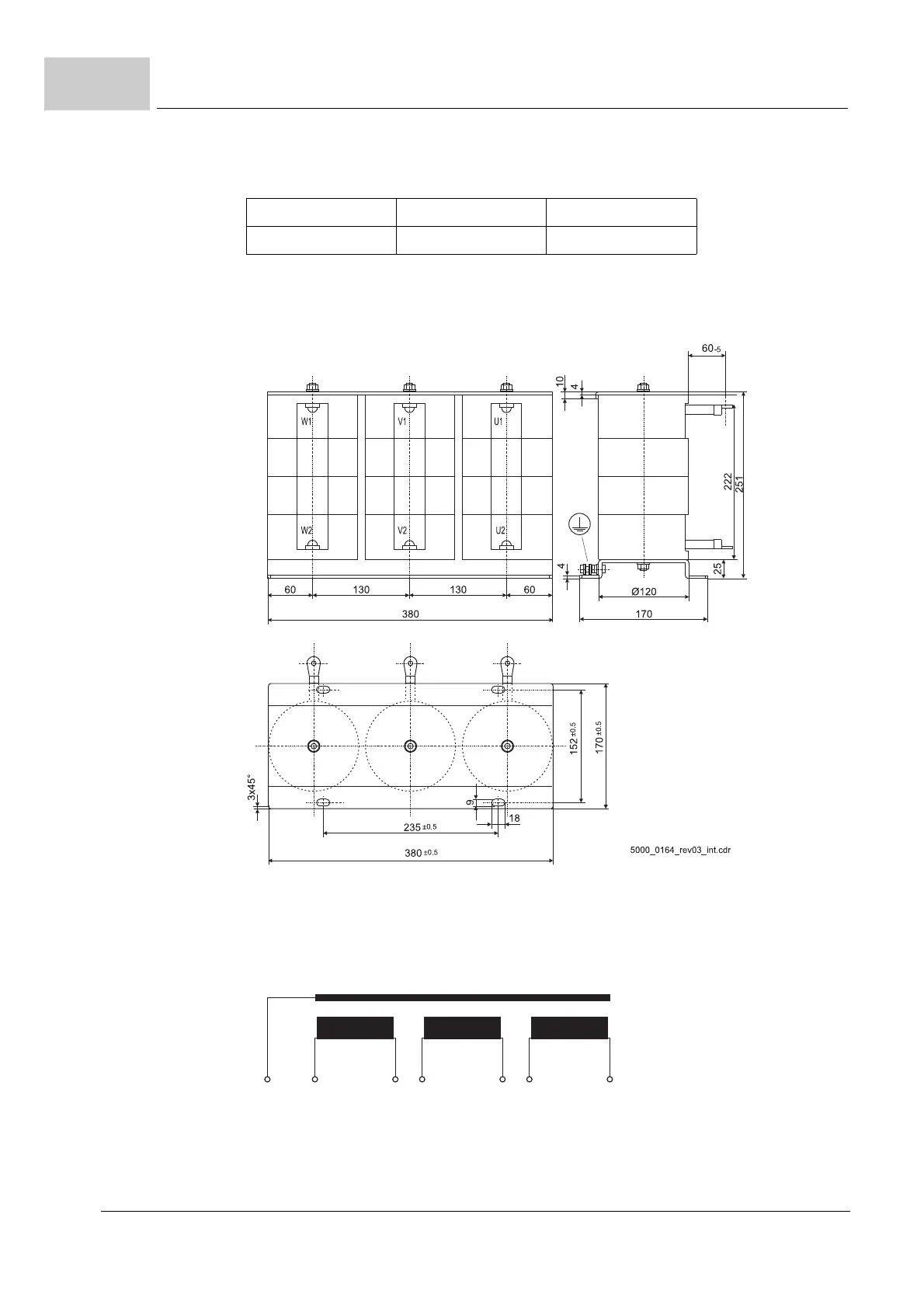

Figure 123: Power choke BM5174
Connection: Cable lugs 10-50
Fixing: M8
Connection 
diagram:
PE U1 U2 V1 V2 W1 W2
Figure 124: Connection diagram BM5174
