82.3-0000010 OM
135
ATTENTION: TRACTOR MANUFACTURER SHALL NOT BE LIABLE FOR THE
BREAKDOWN OF CARDAN SHAFTS OF THE MACHINES COUPLED. SPECIFICA-
TIONS AND DESIGN OF CARDAN SHAFTS ARE IN FIELD OF RESPONSIBILITY OF
THE MACHINES’ AND CARDAN SHAFTS’ MANUFACTURERS!
ATTENTION: CARDAN SHAFT OF THE MACHINE SHALL ENSURE TRANSFER
OF THE RATED TORQUE WHEN THE ROTATION FREQUENCY IS NOT LESS THAN
540 RPM OR 1000 RPM, DEPENDING ON THE SET MODE!
ATTENTION: DO NOT USE THE CARDAN SHAFTS WITHOUT THE APPROPRI-
ATE PROTECTIVE MEANS NOR IF THEY ARE SELF-MANUFACTURED OR DAM-
AGED!
ATTENTION: BE CAREFUL WHEN COUPLING THE MACHINES WITH THE
CARDAN DRIVE: TURNING ANGLES OF THE CARDAN SHAFT ARE LIMITED BY THE
TRACTOR STRUCTURAL COMPONENTS, FOR EXAMPLE, BY LIFTING DEVICE GUID-
ING MEMBERS OR TRACTOR WHEELS. DUE TO MUTUAL TOUCH-DOWN OF THE
CARDAN SHAFT AND OTHER STRUCTURAL COMPONENTS, SOME BREAKAGE OF
THE MACHINE’S TRAILING APPLIANCE CAN OCCUR OR, FOR EXAMPLE, TRACTOR
TIRES OR THE CARDAN SHAFT MAY BE DAMAGED!
ATTENTION: WHEN THE MACHINE IS RUNNING WITH THE CARDAN SHAFT
THERE IS A HAZARD OF PROCESS MATERIAL OR THE MACHINE’S COMPONENTS
BLOW-OUT, THEREFORE IT IS NECESSARY TO OBSERVE SAFE DISTANCE!
IT IS FORBIDDEN TO USE POWER TAKE-OFF SHAFTS WITHOUT CORRE-
SPONDING SAFETY GUARDS.
When the machine cardan shaft is attached to the PTO shaft end, the following
rules and requirements shall be observed:
1. Check the engaged PTO shaft speed mode for compliance according to tractor the PTO
shaft end type and machine’s PRS installed, check the engaged rear PTO drive (continu-
ous/ground-speed) for compliance;
2. Before connection detach the cardan shaft into two parts.
3. Visually inspect the cardan shaft, PTO shaft and PRS for absence of mechanical
damage and for completeness of the set. Remove dirt from the PTO and PRS ends when
needed, and grease them according to the lubrication chart, specified in the machine op-
eration manual.
4. The cardan shaft part having the icon of “Tractor” on it, shall be attached to the
PTO shaft end, and the second part to the machine PRS accordingly. Do not forget to fas-
ten connecting splined bushings on the PTO and PRS shaft ends properly: fastening meth-
od shall be specified by the cardan shaft manufacturer.
5. The machine cardan shaft end yokes from the side of the PTO shaft and the PRS
shall be in the same plane as indicated in figure 4.9.1.

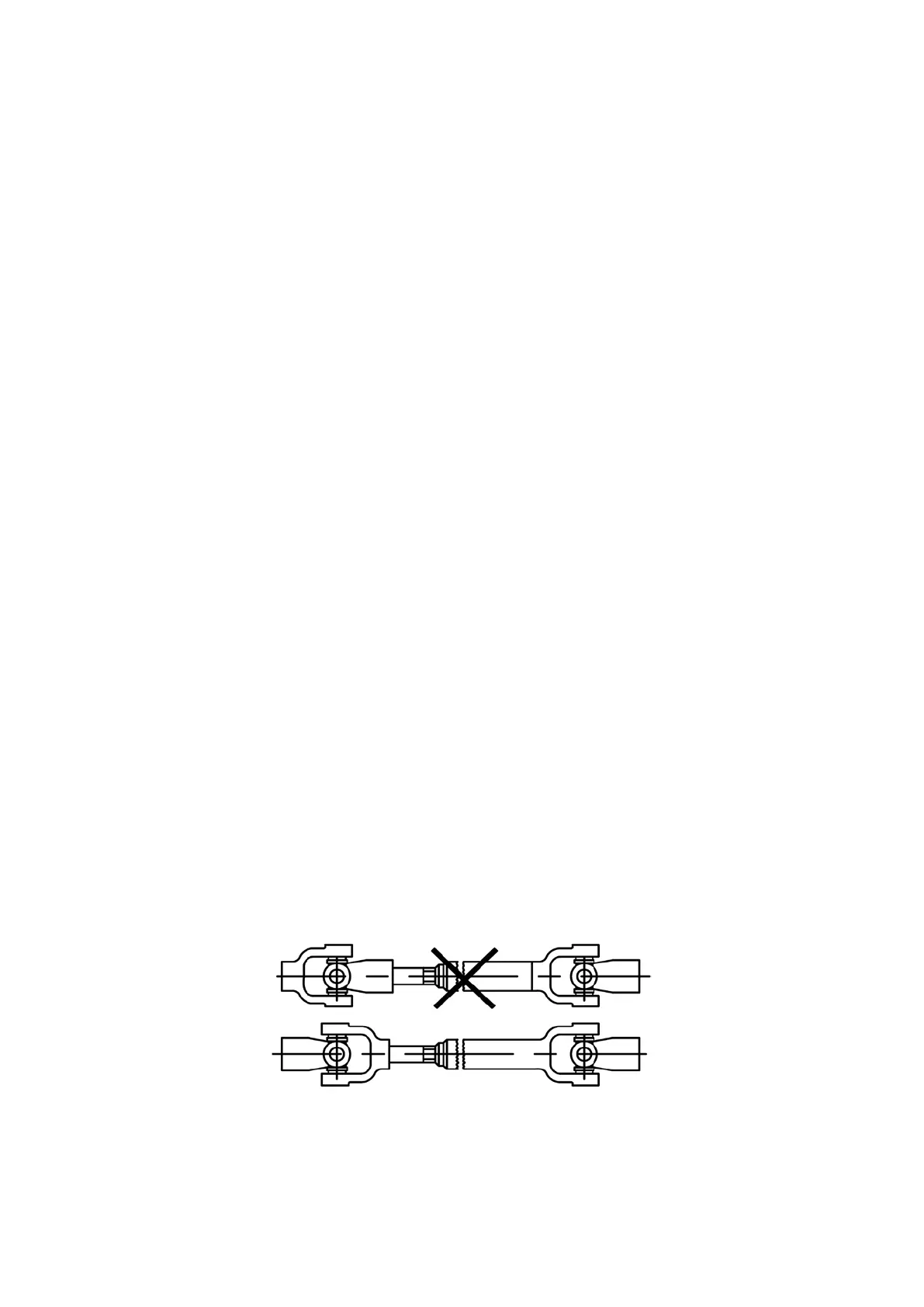

Figure 4.9.1 Cardan shaft mounting scheme
