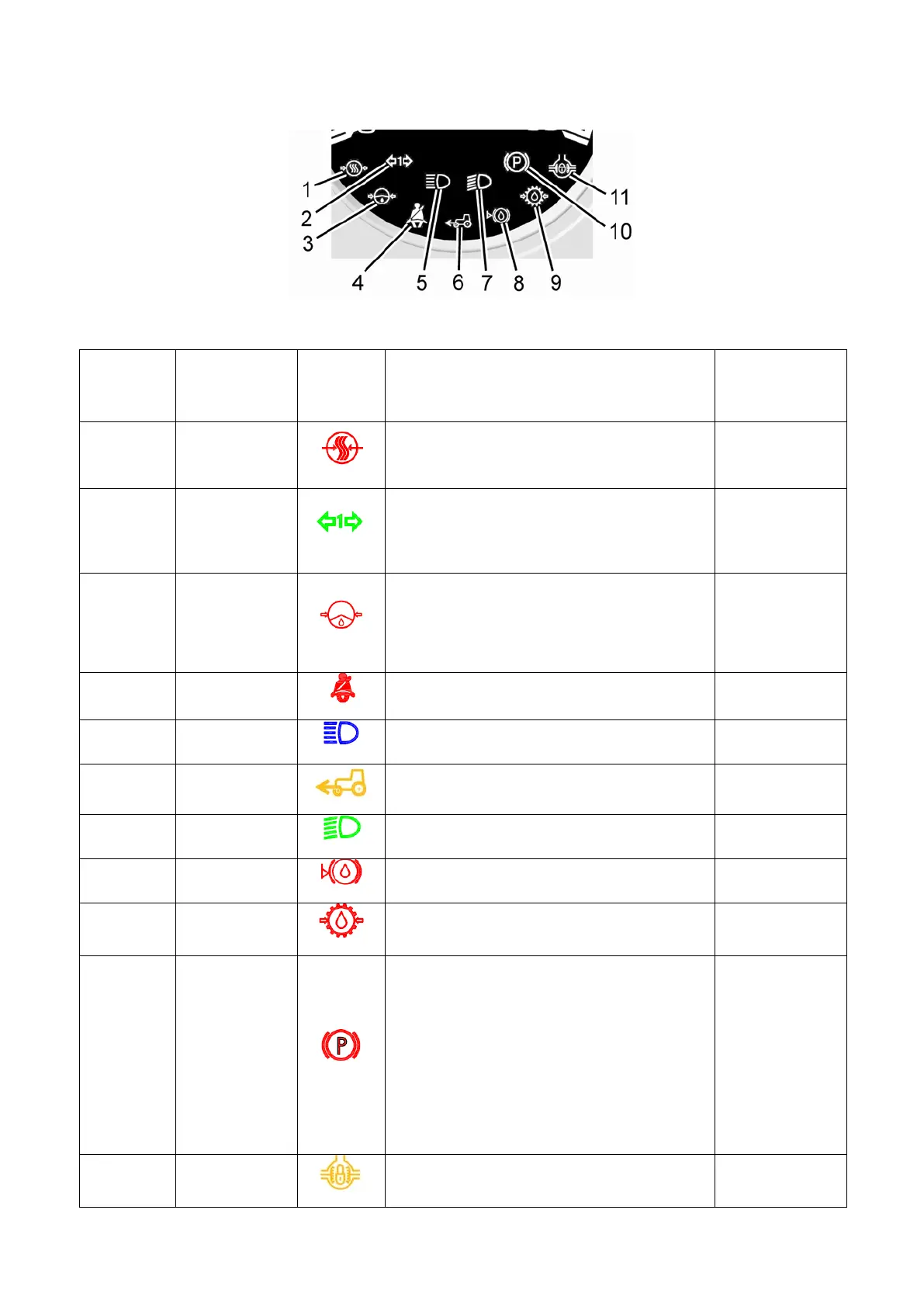

Annunciators 6 (Figure 2.6.1) built in travel speed gauge 5 are presented in Figure 2.6.3
and in table 2.6.2.
Figure 2.6.3 – Location of annunciators built in the travel speed gauge
Table 2.6.2 – Assignment of annunciators built in the engine crankshaft speed gauge
according
to Figure
Annunciator
name
Symbol/
color
Assignment
tion / possibility
of deactivating
1
pressure in
pneumatic sys-
Red
Lights up when pressure in pneumatic sys-
tem drops below 500 kPa.
Available /
available
2
Trailer turn
indicators
Green
Lights up in flashing mode when left or right
turn indicator is actuated with multifunctional
steering column switch 3 (Figure 2.2.1) or
when the emergency flashing switch 2 is ac-
–
3
Emergency oil
pressure in
HSC
Red
Lights up when oil pressure in HSC hydraulic
system drops below 0.08 MPa (repetitive ac-
tuation of the annunciator is permissible at
minimum engine speeds; when increasing
the engine speed, the annunciator shall go
Available /
available
4
Seat belt not
fastened
Not used
–
5
High beam
Lights up when activating road headlights
high beam.
–
6
PTO drive
Not used
Available /
available
7
Low beam
Lights up when activating road headlights low
beam.
–
8
Low level of
brake fluid
Not used
–
9
pressure in
Lights up when oil pressure in transmission
hydraulic system drops below 0.8 MPa.
Available /
available
10
Parking brake
Red
The annunciator operates in continuous
flashing mode when the parking brake is ac-
tivated, with the non-running engine as well
as with the running one.
- If the parking brake is engaged, the buzzer
also sounds when the tractor is moving and
the message to switch off the parking brake
appears on the display.
- If the parking brake is switched off and the
engine is shut off, the buzzer also sounds
and the message to switch on the parking
brake appears on the display
Available /
not available
11
Rear axle dif-
ferential lock
Not used
Available /
available
