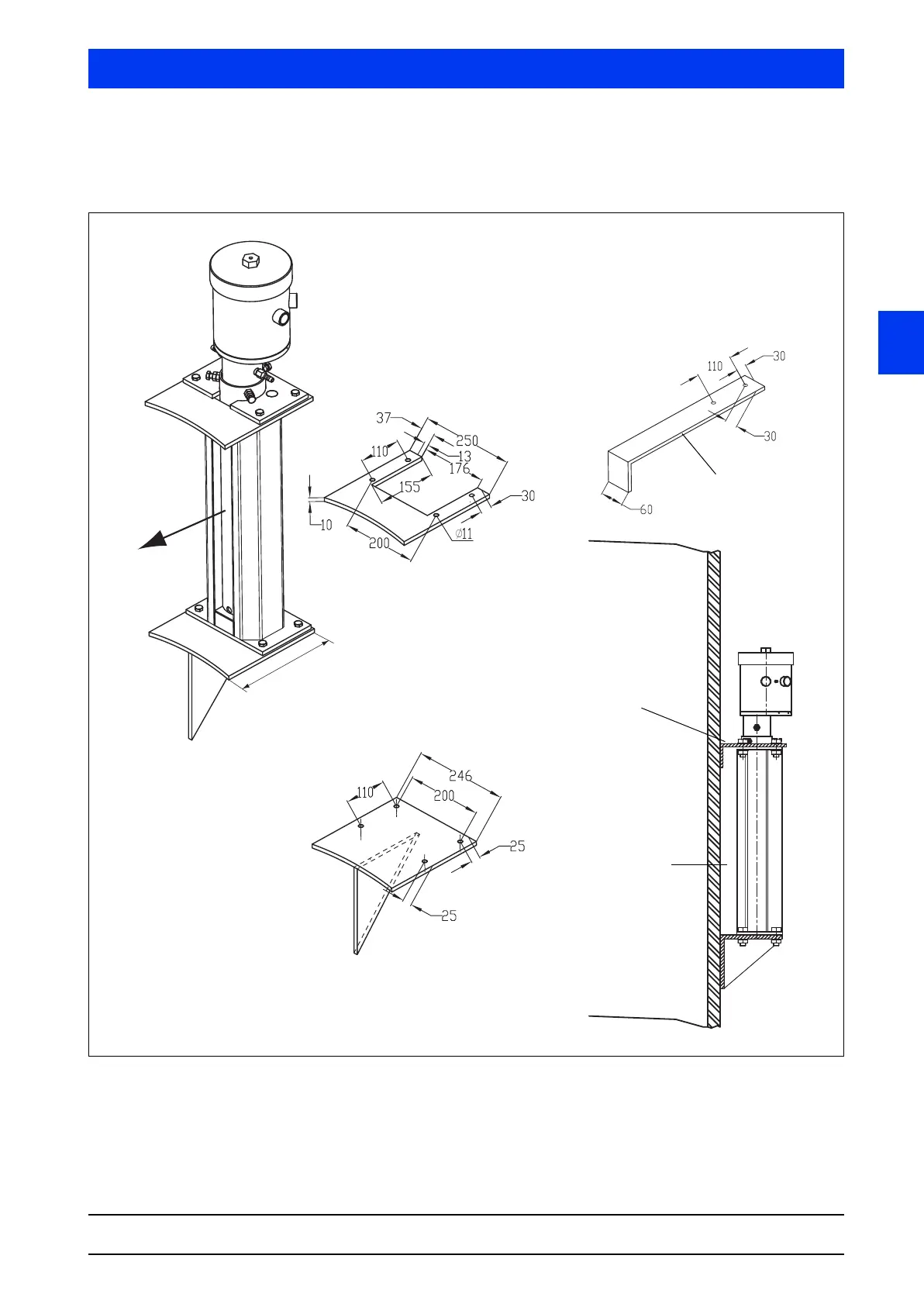

Anti-tipping device
Installed by the installation
contractor, e.g. welded to the
vessel or the supporting
structure.
Size dependent on local con-
ditions, e.g. the insulation
thickness.
Mounting platform
Installed by the installation con-
tractor, e.g. welded to the vessel
or the supporting structure.
Installation
direction to
the source
Alternative to the adjoining
anti-tipping device.
The anti-tipping device can also be
installed one-sided as an angle, e.g.
welded to the vessel or the support-
ing structure.
Material thick-
ness 8–10mm
Angle iron as
anti-tipping
device
Distance to the
vessel wall
approx. 100mm
