3.1 DEVICE Tab

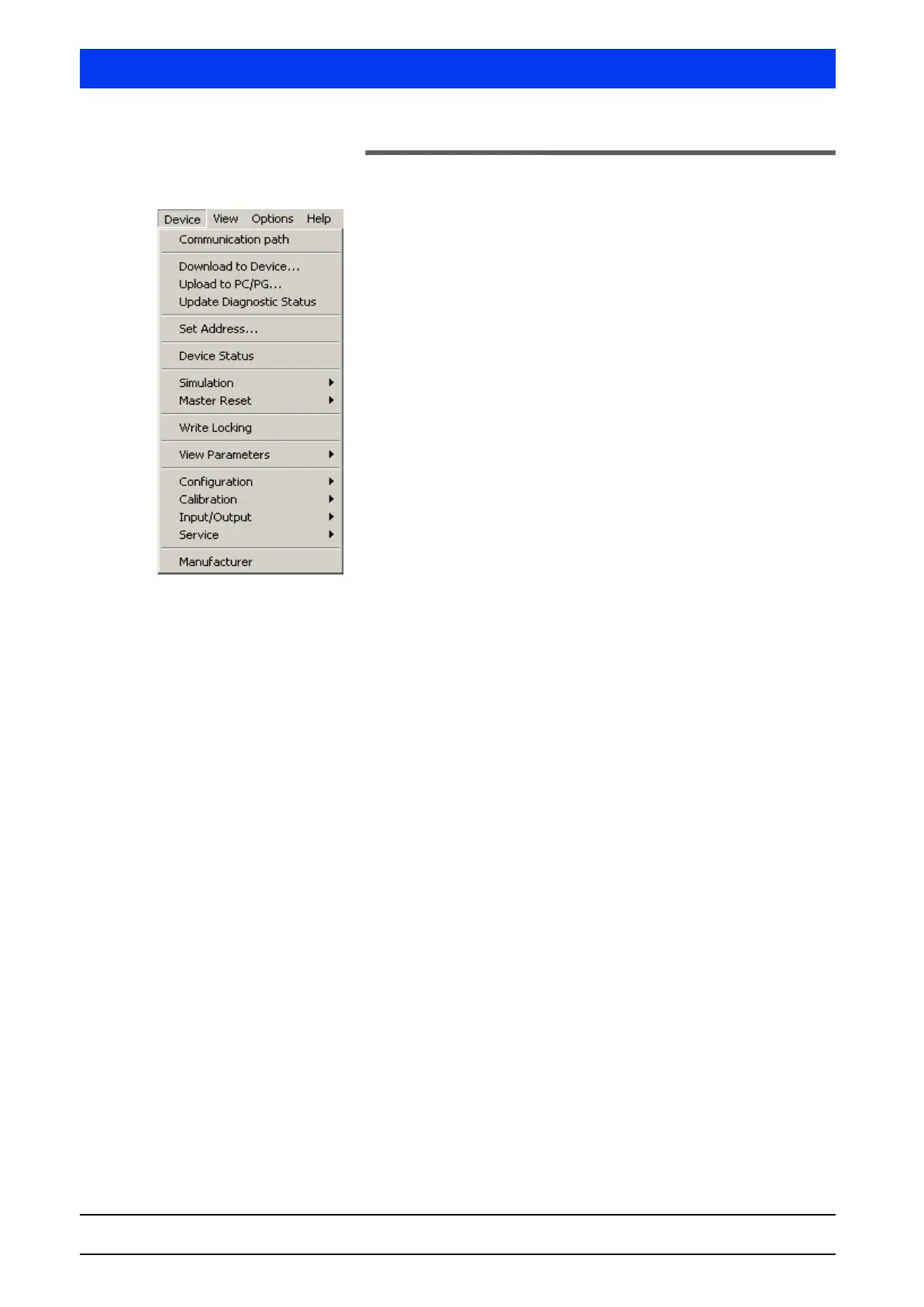

The DEVICE menu includes the following menu items:
• Communication path (page 6–563)
• Download to Device… (page 6–564)
• Upload to PC/PG… (page 6–564)
• Update Diagnostic Status (page 6–564)
• Set Address… (page 6–565)
• Device Status (page 6–565)
• Simulation (page 6–568)
– Function Block 1 - Analog Input (page 6–568)
– Function Block 2 - Analog Input (page 6–569)
• Master Reset (page 6–569)
– Physical Block (page 6–569)
• Write Locking (page 6–570)
• View Parameters (page 6–570)
– Status / ErrorLog (page 6–570)
• Configuration (page 6–571)
– General (page 6–571)
– System Parameter (page 6–572)
– Measurement parameters
– Damping Data (page 6–573)
– Rad. Interference (page 6–575)
– Pulse Rate Limits (page 6–576)
• Calibration (page 6–577)
– Set Background (page 6–577)
– Enter Calibration Points (page 6–578)
– Adjusts Lower Calibration Point (page 6–579)
– Adjusts Upper Calibration Point (page 6–579)
– Check Curve (page 6–580)
– Calibration Options (page 6–580)
– Show Calibration Points (page 6–582)
• Input/Output (page 6–583)
– Digital Inputs (page 6–583)
– Digital Outputs (page 6–583)
• Service (page 6–584)
– Test Calculation (page 6–584)
– I/O Test (page 6–585)
– Status Digital Inputs (page 6–585)
– Status Digital Outputs (page 6–586)
– Probe Settings (page 6–586)
– Plateau (page 6–589)
– Measure Plateau (page 6–589)
