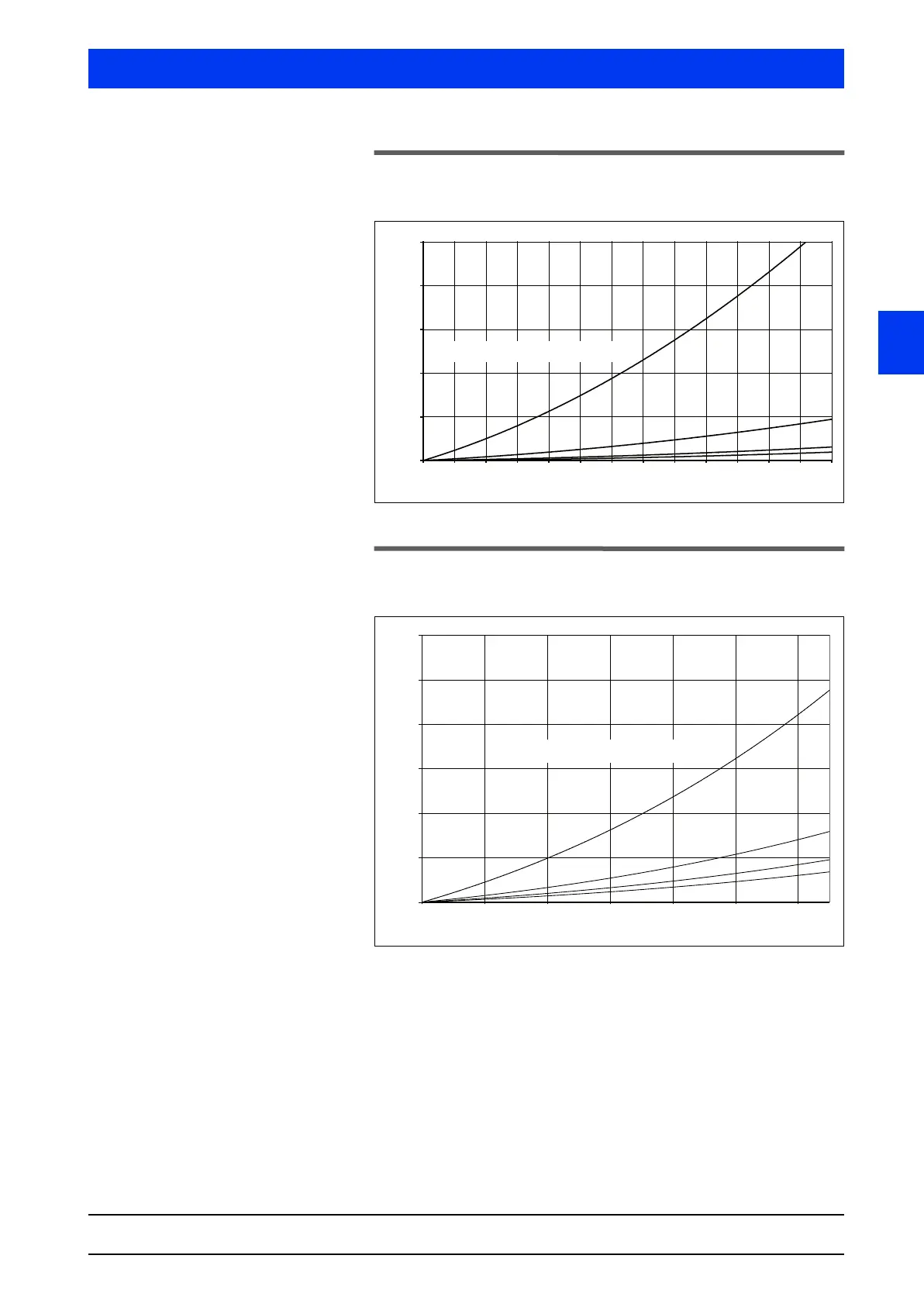

Volume 2 7 Cooling Water Curves
2
7.3 Super-Sens
Cooling water curves
for Super-Sens detector
7.4 Tower-Sens
Cooling water curves
for Tower-Sens detector
0
50
100
150
200
250
50 60 70 80 90 100 110 120 130 140 150 160 170 180
40°C
30°C
10°C
20°C
Water flow rate in l/h
Ambient temperature in ºC
Cooling water input temperature
0
10
20
30
40
50
60
50 70 90 110 130 150 170
40 °C
30 °C
20 °C
10 °C
Water flow rate in l/h
Ambient temperature in ºC
Cooling water input temperature
Cooling water input temperature
