BERTHOLD TECHNOLOGIES Uni-Probe LB 490 - 6.5 Point Source Shielding LB 744 X

Uni-Probe LB 490
BERTHOLD TECHNOLOGIES GmbH & Co. KG
2 – 273
Volume 2 6 Technical Drawings
2

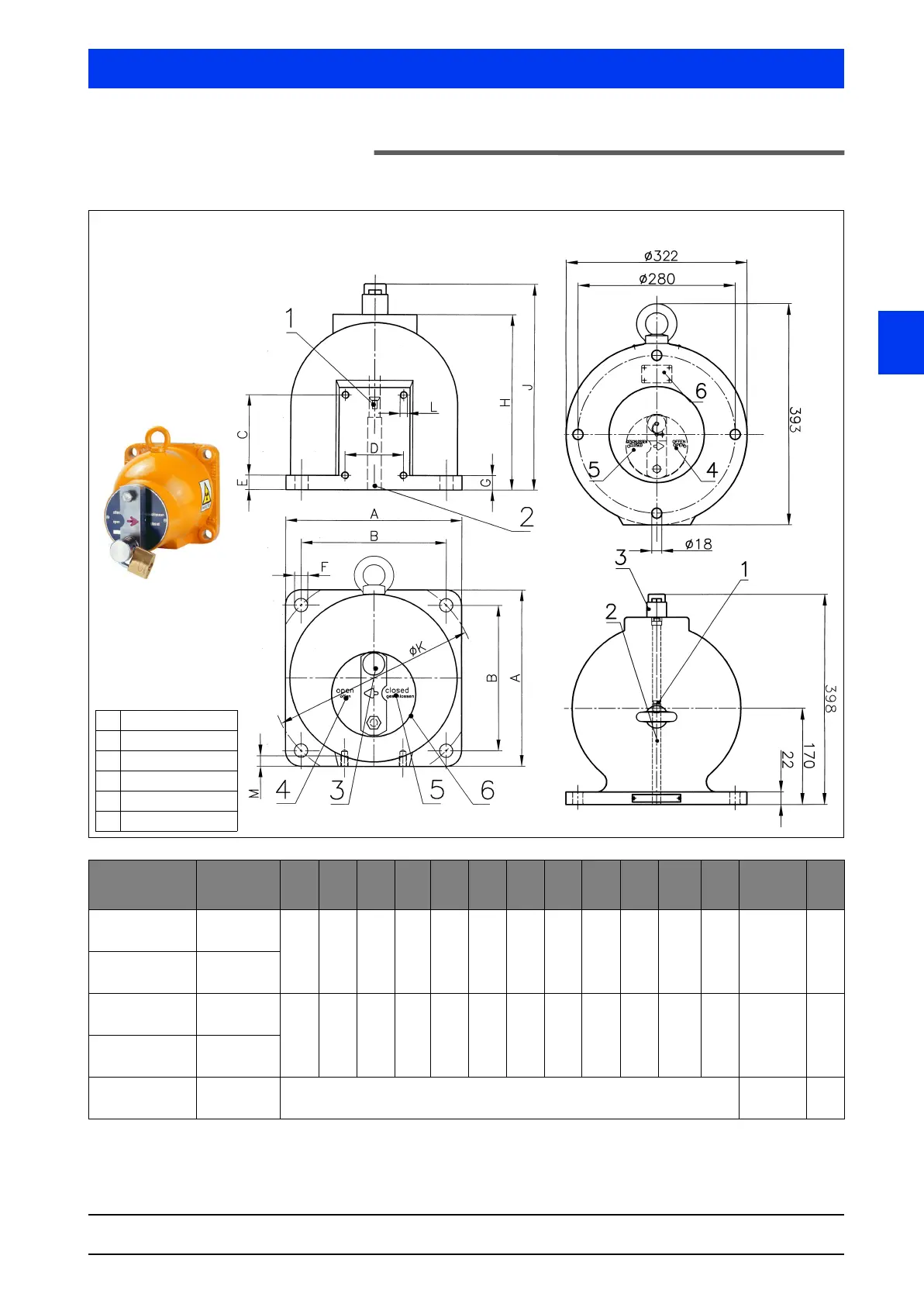

6.5 Point Source Shielding LB 744X
1Point source
2 Radiation exit
3Lock
4Position Open
5Position Closed
6Type plate
LB 7440 & LB 7442 LB 7444
Type Stainless
steel case
A B C D E F∅ G H J K∅ L M Flange kg
LB 7440 F CR
LB 7440 D CR
-
180 142 60 60 15 18 20 172 238 200 m8 12
ND 125,
PN 6
31
LB 7440 FE CR
LB 7440 DE CR
X
LB 7442 F CR
LB 7442 D CR
-
240 198 110 80 20 18 20 240 306 280 m10 14
ND 200,
PN 6
81
LB 7442 FE CR
LB 7442 DE CR
X
LB 7444 CR -
ND 200,
PN 6
170
