Uni-Probe LB 490
BERTHOLD TECHNOLOGIES GmbH & Co. KG
2 – 281
Volume 2 6 Technical Drawings
2

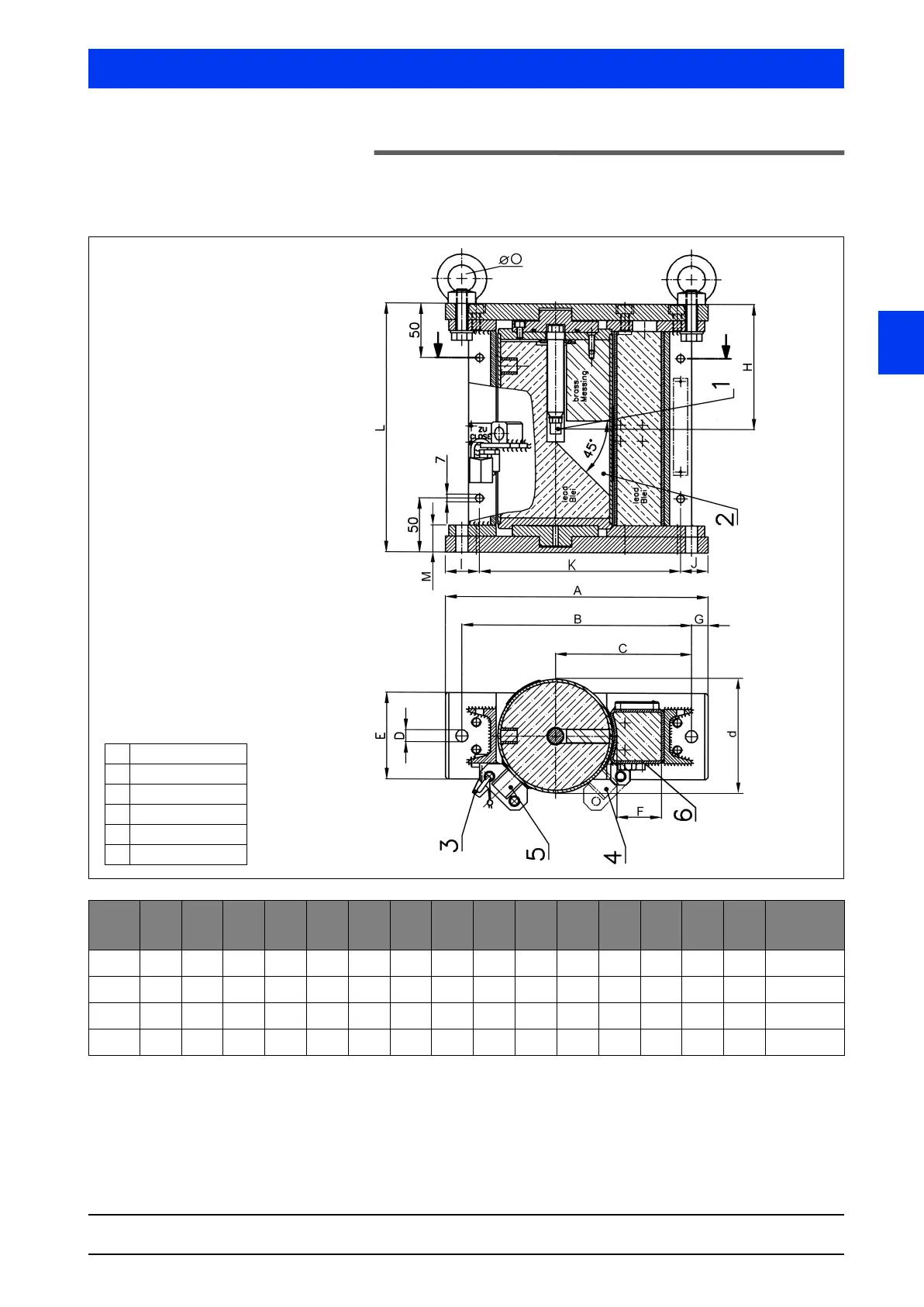

6.6 Point Source Shielding for Rod
Detectors
1Point source
2 Radiation exit
3Padlock
4 Position Open
5 Position Closed
6Type plate
Type D A B C D E F G H i J K L M o Weight
(kg)
100 105 240 210 125 11 80 40 15 115 30 24 184 225 25 25 32
150 159 360 320 195 18 100 65 20 115 28 28 300 265 25 35 70
200 203 410 360 220 23 120 75 25 155 22 22 366 340 30 40 150
270 267 580 510 315 26 300 101 35 200 54 45 436 435 45 50 370
