BERTHOLD TECHNOLOGIES Uni-Probe LB 490 - Replacing Fuses

38477BA2B
2 – 236 25.5.09
4 Repair, Maintenance and Service Volume 2
4.12 Replacing Fuses
Position Two fuses (16) are located on the power supply board (14).

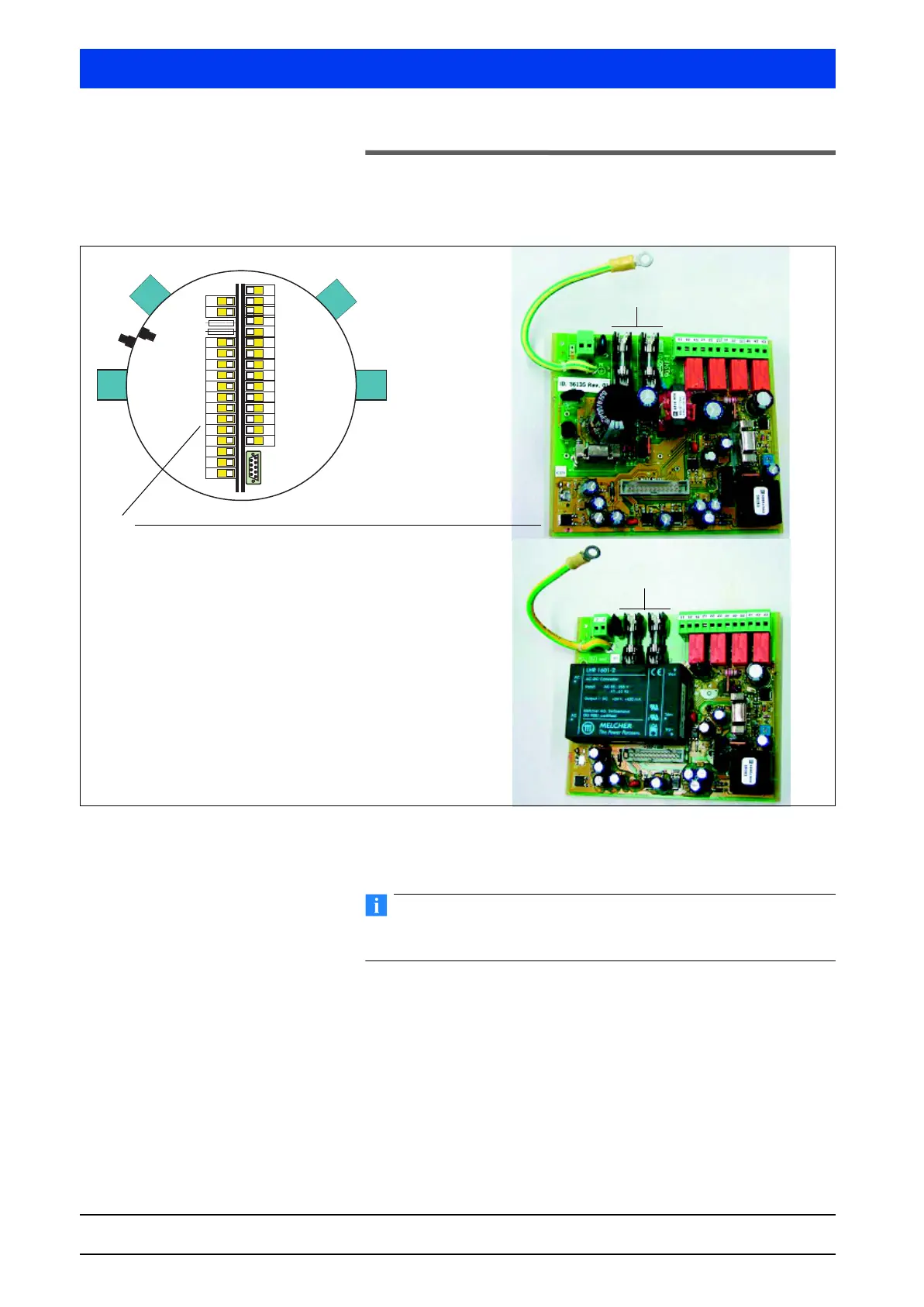

Figure 4-8 Position of power supply board and fuses in the device
Technical data of fuse Type of fuse: Berthold part #46719.
IMPORTANT
For power supply 95V to 250V
AC
and 24V
AC/DC
, use only 1.25A/
250VAC/slow-blow fuses with UL license!
Proceed as follows to replace fuses  Dismantle the plastic plate covering the fuses.
 Exchange fuses.
 Install the electronics module in the Uni-Probe as described on
page 2–223.
This completes the replacement of the fuses.
16
14
16
Power supply board 24V
AC/DC
Power supply board 90 - 240V
AC/DC
