38477BA2B
2 – 274 25.5.09
6 Technical Drawings Volume 2

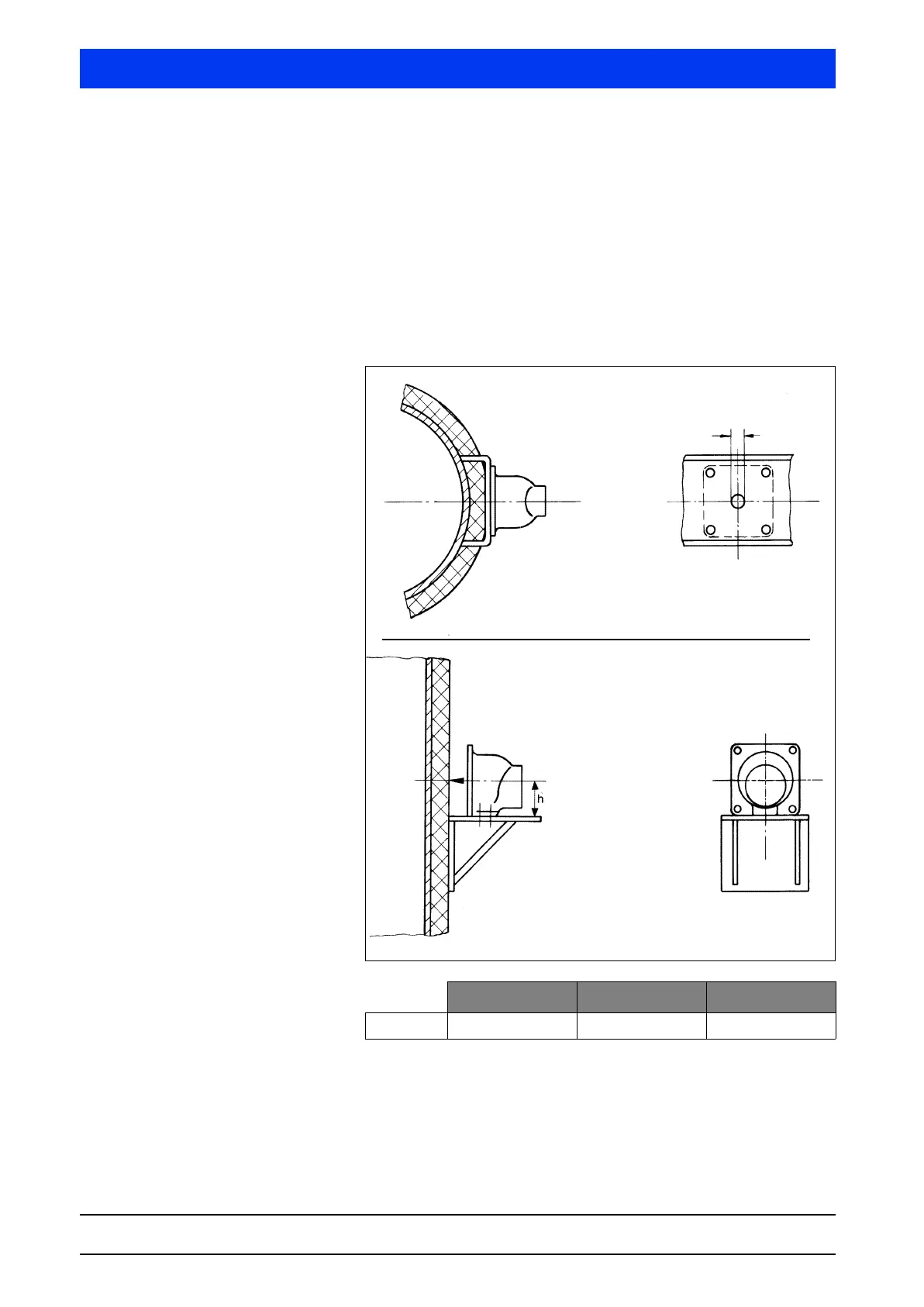

6.5.1 Installation Proposal for Point Source
Shielding LB 744X
The shielding vessel is consisting of a stable casting cabinet filled
with lead. A rotary shutter is installed to close the radiation exit
channel. Operation is made from behind by a T-handle, which is
secured by a padlock in open as well as in closed position. The
source is mounted in a way, that unauthorized taking off is also
prohibited by the lock.
For mounting purposes, the shielding vessel has an integrally cast
flange and a fixing socket with tapped holes.
LB 7440 LB 7442 LB 7444
h in mm 90 120 161
~∅30
Flange mounting
Bracket mounting
