Uni-Probe LB 490

BERTHOLD TECHNOLOGIES GmbH & Co. KG

5 – 425

Volume 5 2 General Information on SIMATIC PDM

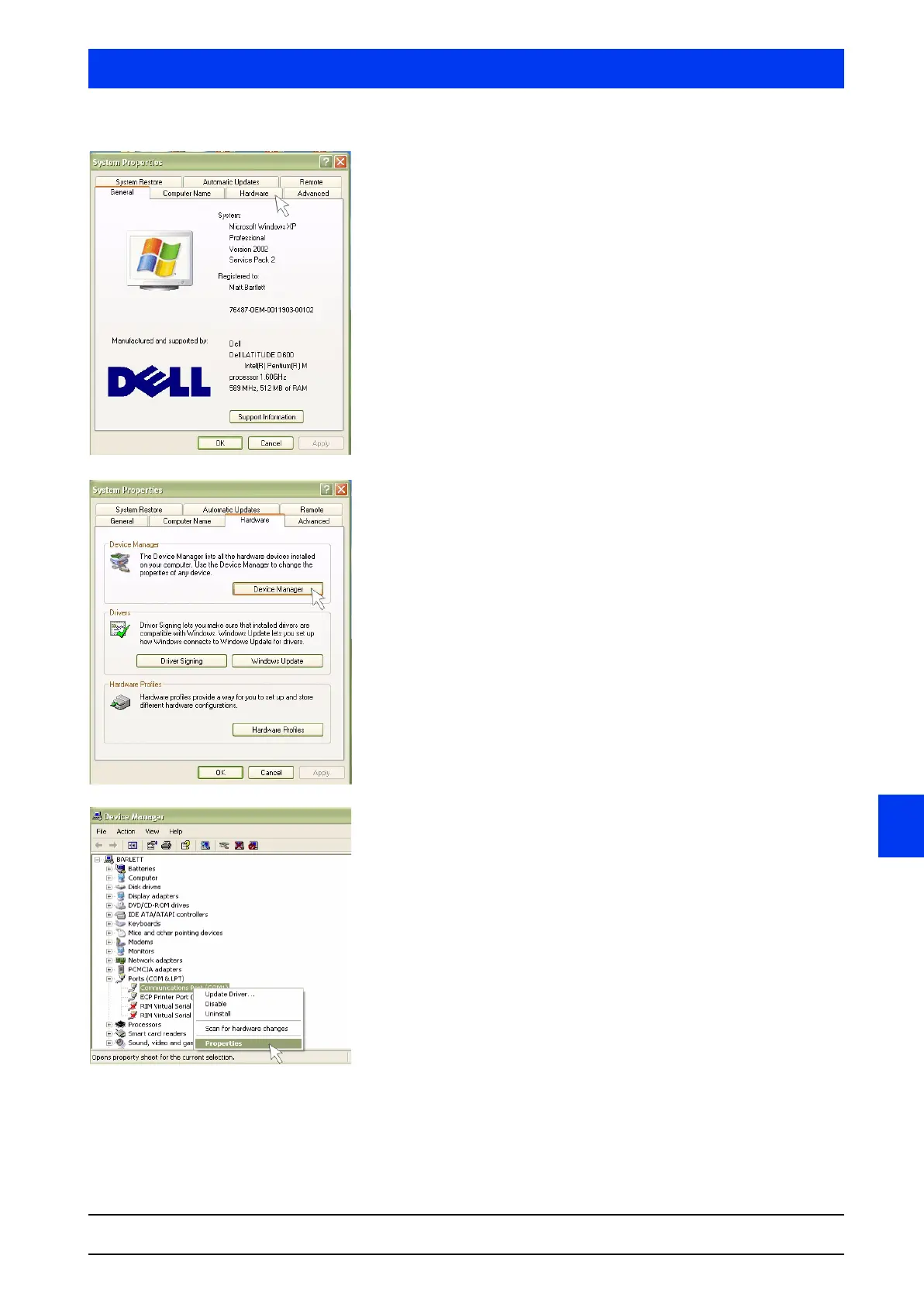

 Select the HARDWARE tab.

 Open the

DEVICE MANAGER.

 Select the menu for setting the properties of the communica-

tion port.
