7 Source Replacement Volume 1

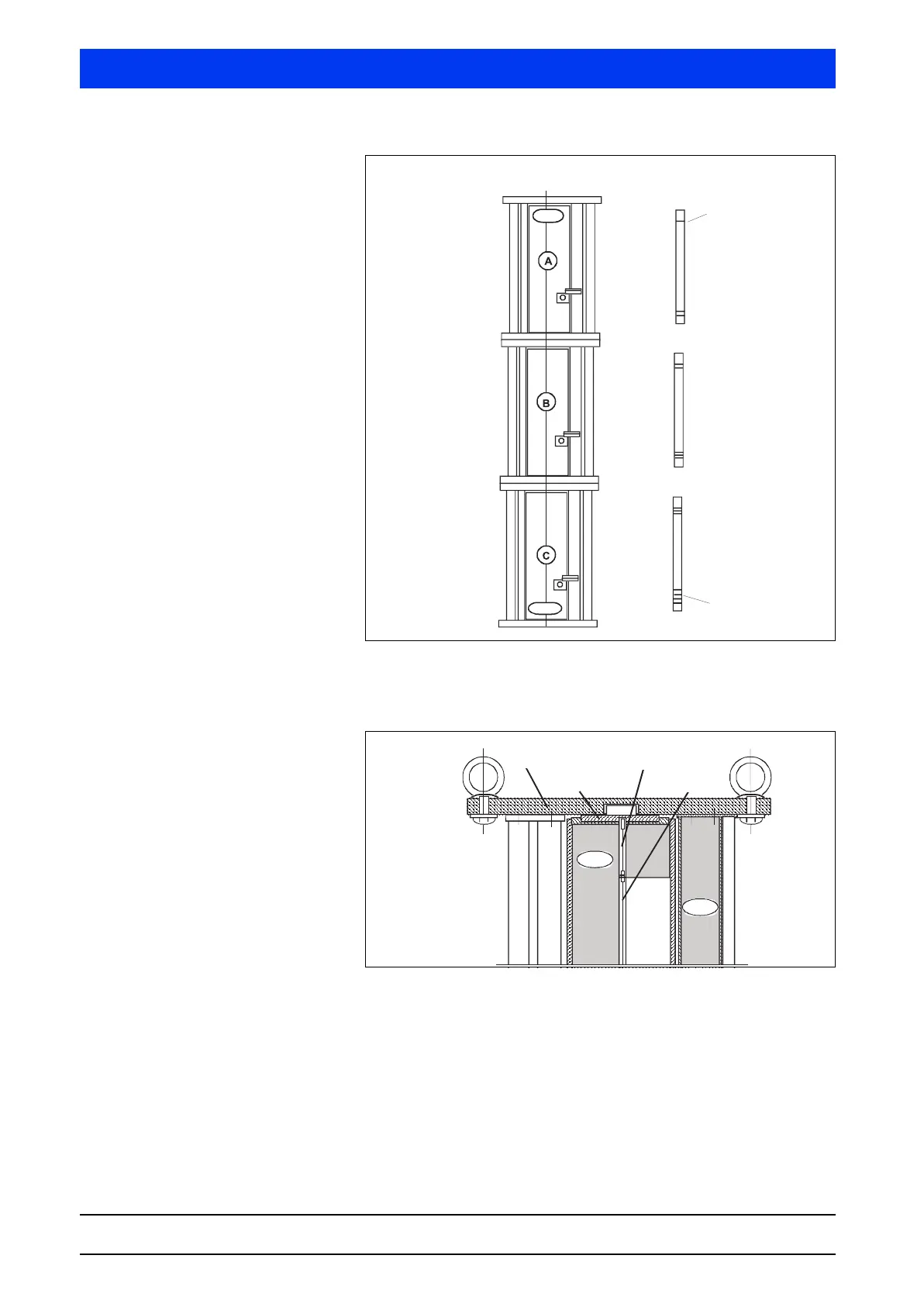

Figure 7-3 Markings on multi-part sources and shieldings
7.2.1 Procedure for Source Replacement
Figure 7-4 Dismounting rod source shielding
 Unscrew the head flange (1) using a suitable Allan key.
 Open the locking cover (2).
Shielding Rod sources
Top: 1 ring
Bottom: 2 rings
1
2
3
4
