Uni-Probe LB 490

BERTHOLD TECHNOLOGIES GmbH & Co. KG

5 – 515

Volume 5 6 Functional Processes

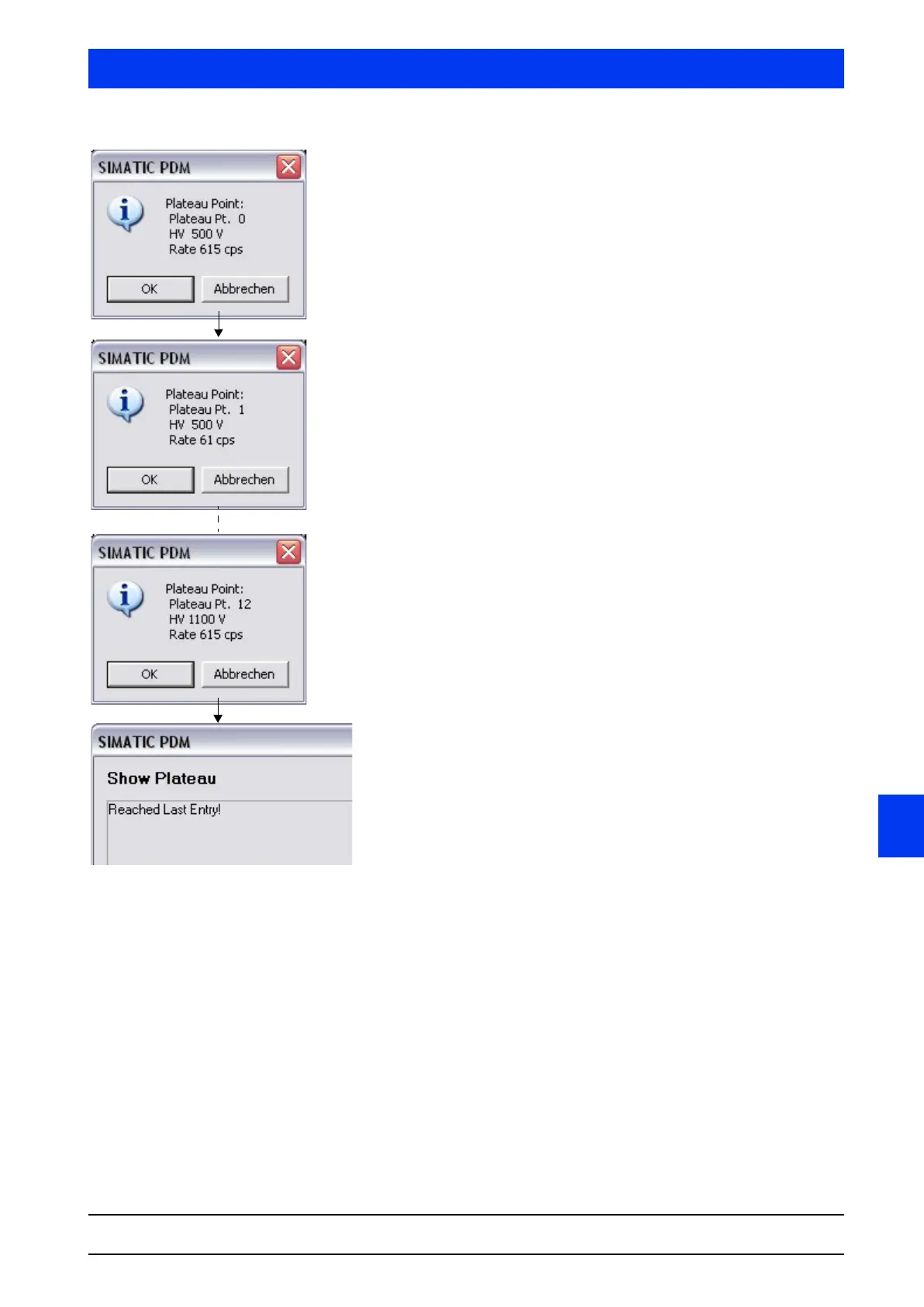

 Always confirm the value pairs by clicking OK until you get to

the dialog box

REACHED LAST ENTRY!.

 Click

OK to close the dialog box.

This completes the display of the measured values.
