6 – 613
Volume 6 4 Calibration with SIMATIC PDM
6

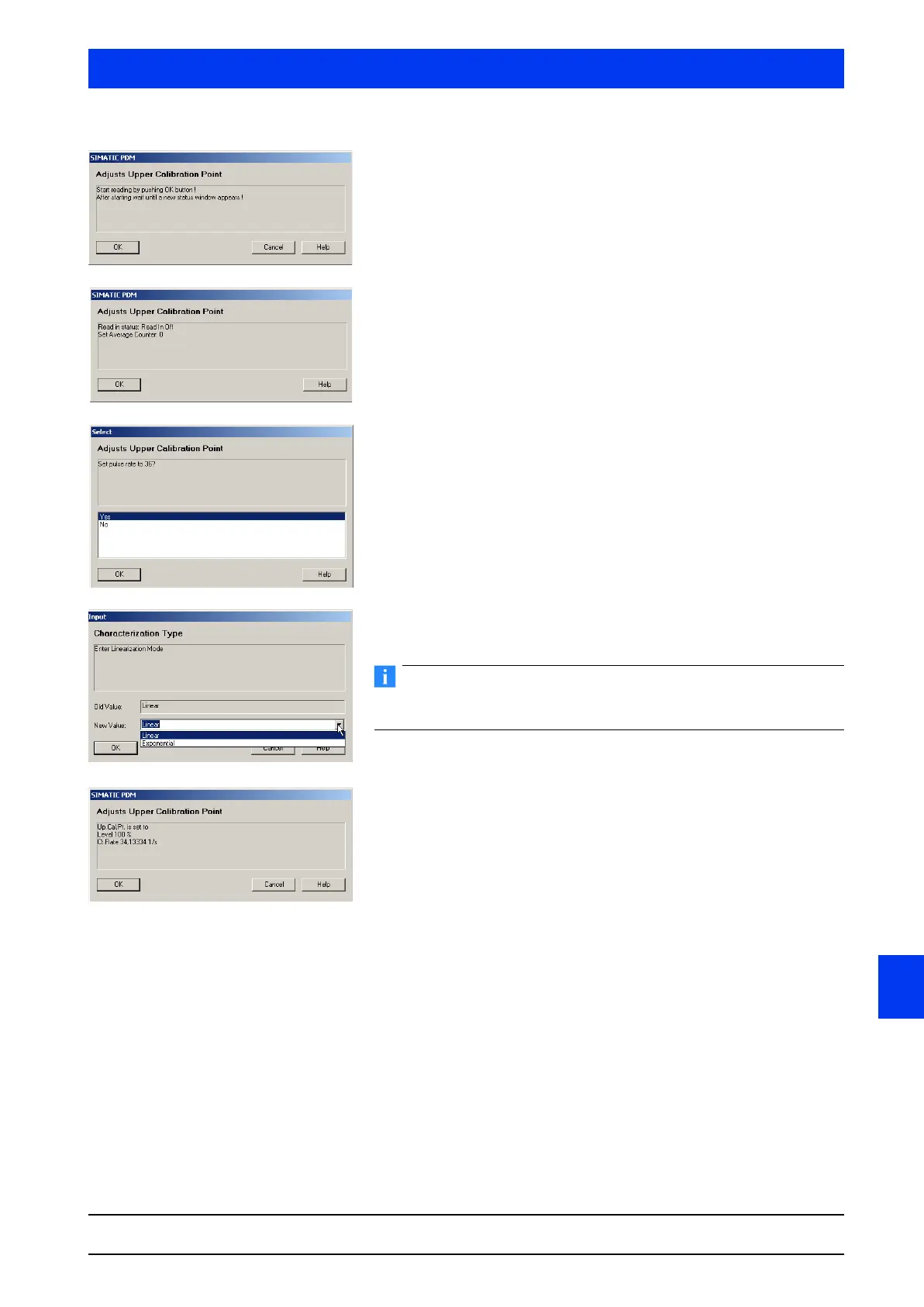

 Start reading-in the pulse rate by clicking OK.
The count rate reading-in process has started. If the process is
started with “0” it takes 30s until the count rate is read in.
 Confirm the dialog with OK.
 Confirm the pulse rate with
OK.
 Select the calibration mode
LINEAR and confirm the selection
with
OK.
IMPORTANT
The Exponential function is used only in special cases. For informa-
tion on the calibration modes, please refer to chapter 6.3.
 Confirm the dialog with OK.
This completes the full calibration step.
