Chapter 2 Hardware Description

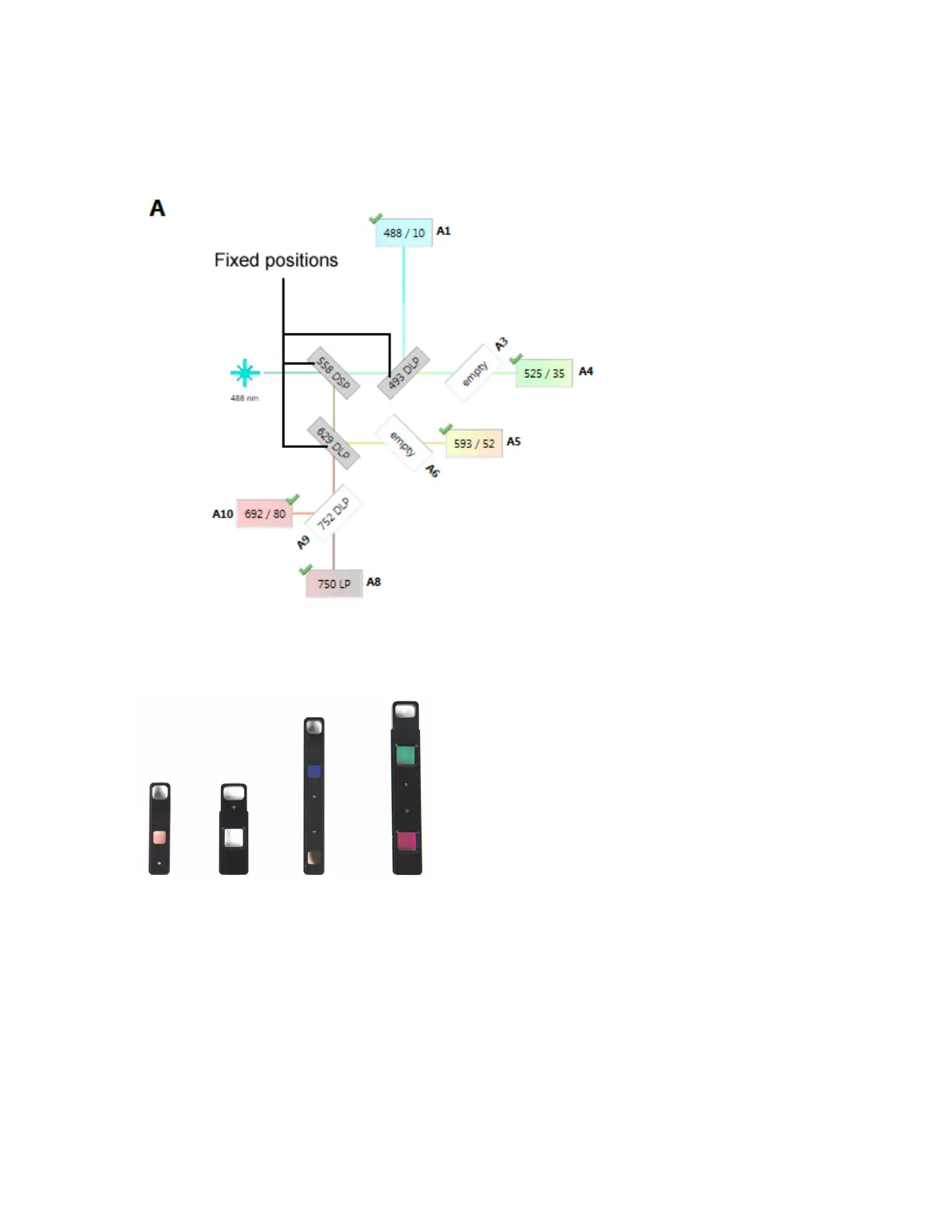

Filter holders contain either one or two mirrors/filters. Single filter holders are installed in region A,
while double filter holders are installed in stacked banks (regions B and C). Examples of single and
double filters are shown in the next figure.
For information about configuring filters, see Working with Optical Filter Configurations on page 120.
44 | ZE5 Cell Analyzer and Everest Software
