Optics
The ZE5-EYE
The ZE5-EYE is a hardware feature that verifies the configuration of the optical filter setup. Located in
front of the detection paths, the ZE5-EYE uses multiple LEDs to pulse ten different wavelengths of light

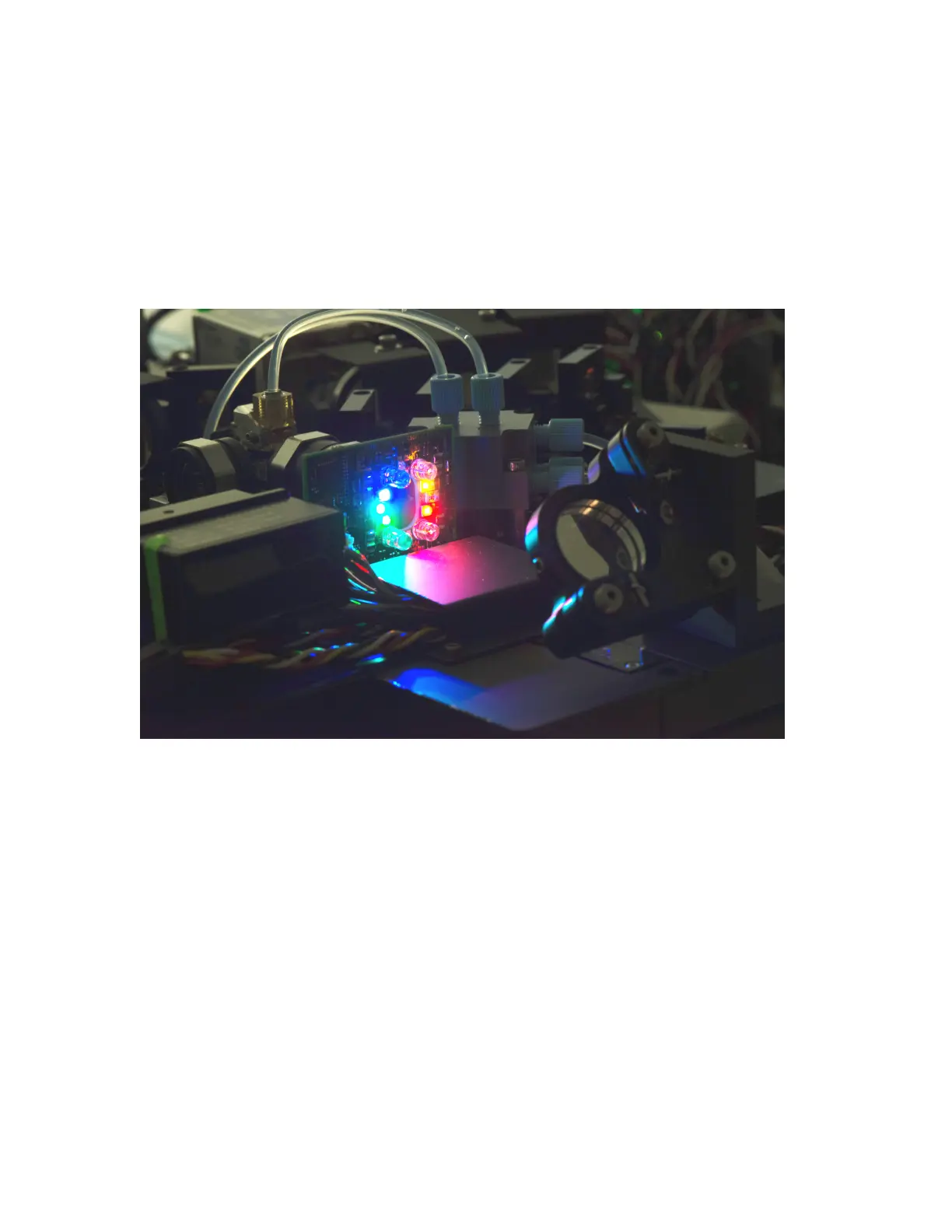

into the optical filters that lead to the detector banks. These LEDs are shown in the next figure.
The ZE5-EYE process is a component of the QC process and is run any time the QC process is
initiated.
For more information, see Using the ZE5-EYE to Confirm Filter Choices on page 135.
