188
IFS 125M User Manual Bruker Optik GmbH
Connection Ports 10

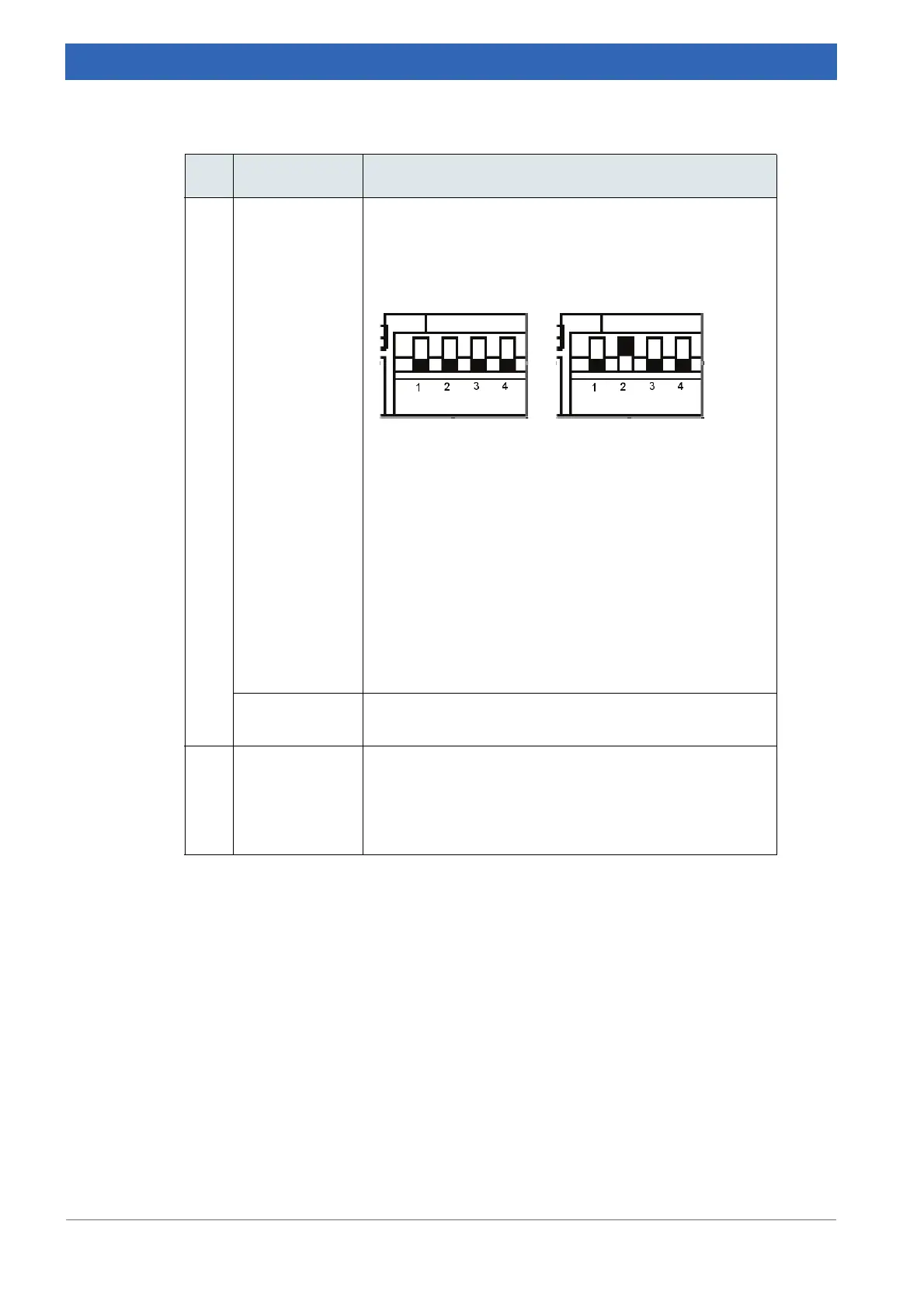

K CFG Behind this small plate there is a fourfold DIP switch, with
the basic configuration:
• ON = lever in upper position
• OFF = lever in lower position
The following lever positions are possible:
• All OFF: normal operation
• #1 ON and #2 OFF: DHCP mode - use last DHCP
address
• #1 OFF and #2 ON: force IP address 10.10.0.1
• #3 ON: stay in boot loader, do not load the application
program
• #4: reserved, must be OFF. The CFG abbreviation
means Configuration.
BATTERY Behind this small plate there is the lithium battery to be
used to power the real-time clock continuously.
L
MPE1 port
a
The MPE 1 is a versatile port to connect external optical
modules and detectors. It includes a complete CAN-Bus,
transmits all required remote trigger signals and estab
-
lishes a complete connection to DDC (Digital Detector
Connection) compatible detectors.
Component Definition
Table 10.3: LEDs and cable connectors on electronics panel
Normal operation Force IP address 10.10.0.1
(useful if actual IP address is
unknown)
