Bruker Optik GmbH IFS 125M User Manual
Operation 5

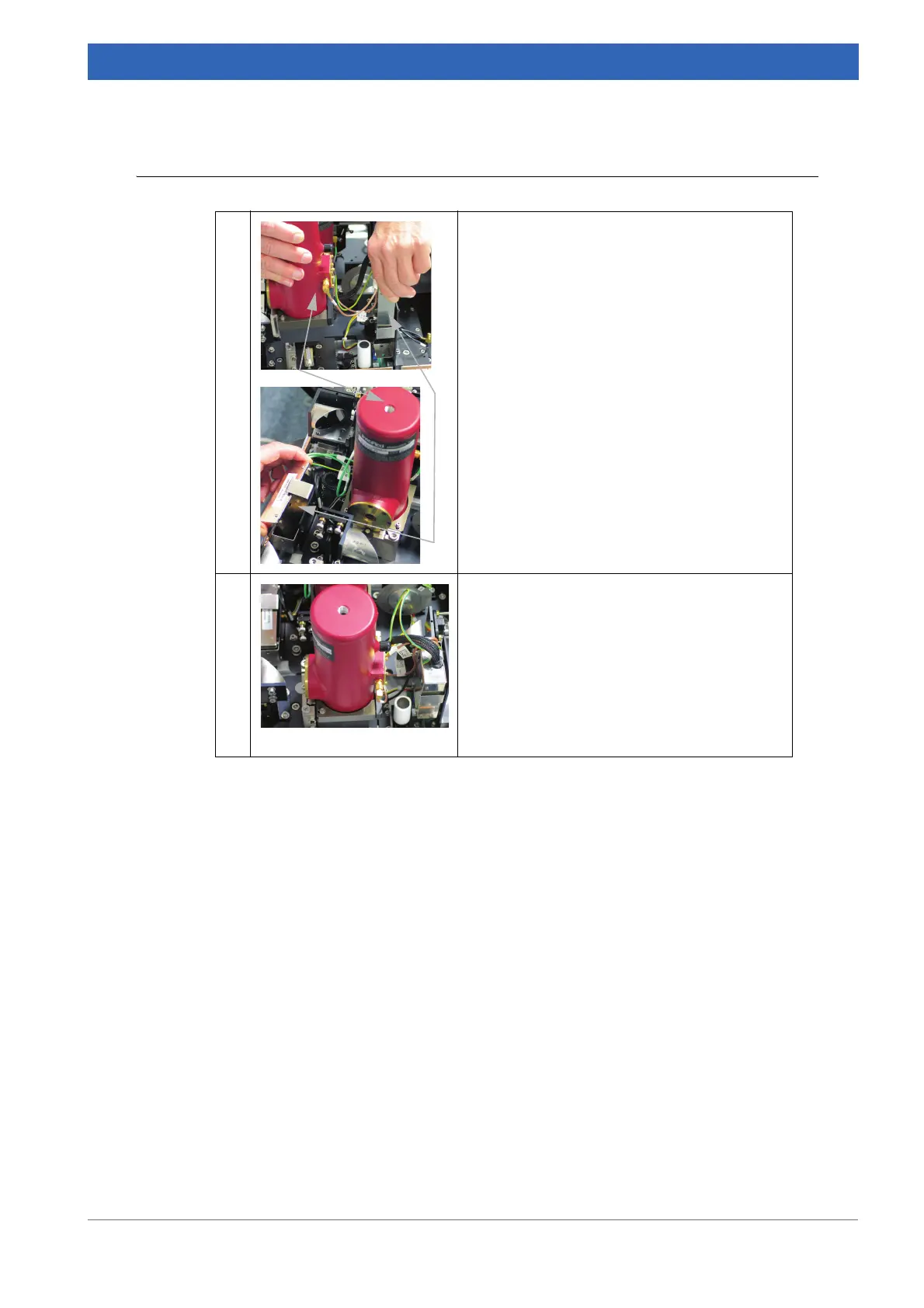

Removing detector and inserting new one
1 In case of room-temperature detectors:
remove the shim plate next to the detector.
This type of detector does not have a sepa
-
rate preamplifier.
• Gently tilt the detector to the left and right to
loosen it from the dovetail guide.
• Carefully pull upwards the preamplifier (A)
and the detector (B) simultaneously. Avoid
any damage on the mirrors or other compo
-
nents next to the detector.
2 • Insert the new detector and preamplifier
simultaneously.
• Insert the detector precisely into the dovetail
guide. Make sure that no cable blocks the
optical path.
• Push the detector downwards until it locks
into place. The electrical connections are
established automatically if the detector has
been completely pressed down.
Table 5.10: Changing detector - Removing detector and inserting new one
