74 Sync Scorer Components

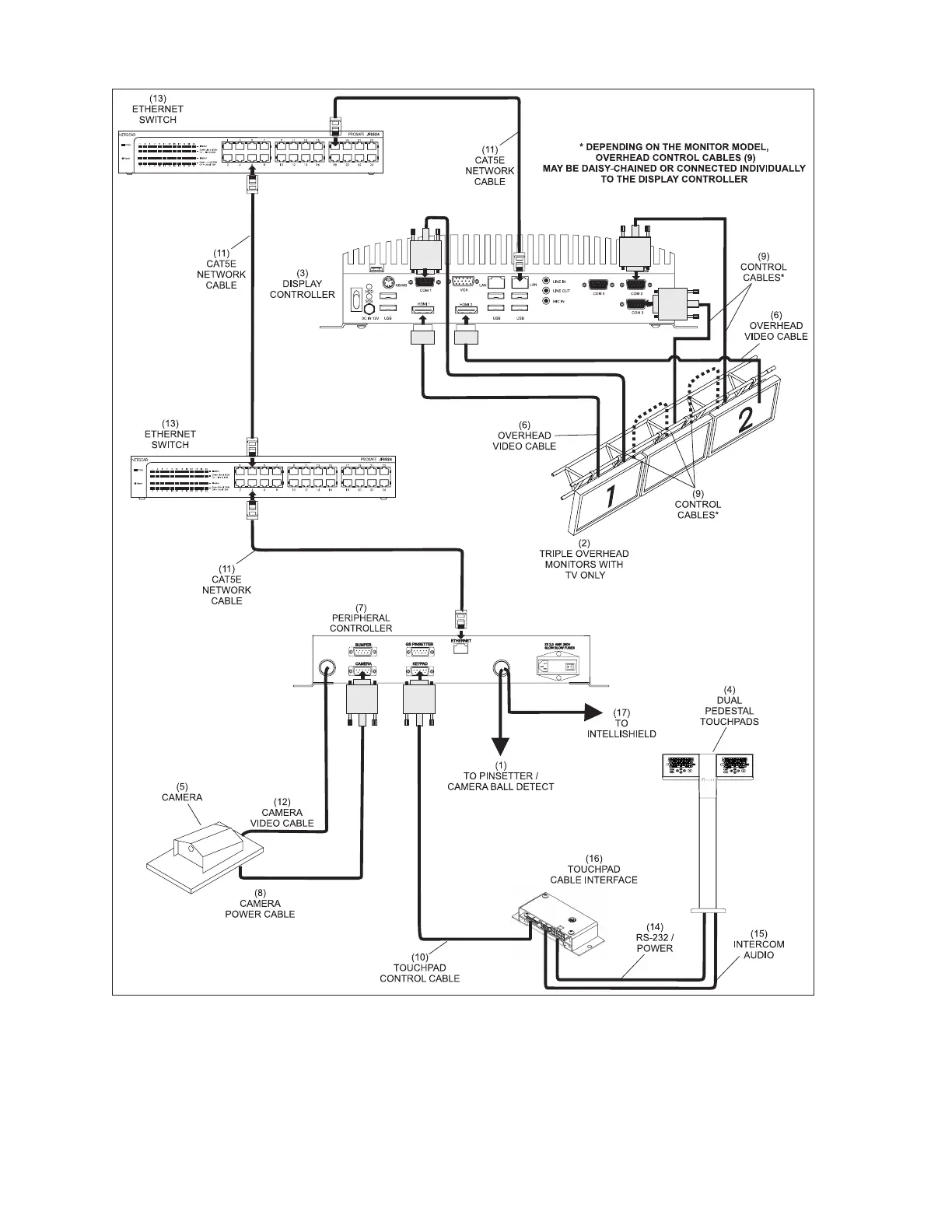

Sync Scoring Lane Pair Cabling - Dual Pedestal Touchpads, Non-GS Pinsetters
(1) TO PINSETTER / CAMERA (2) TRIPLE OVERHEAD MONITORS (3) DISPLAY CONTROLLER
BALL DETECT W/TV ONLY
(4) DUAL PEDESTAL TOUCHPADS (5) CAMERA (6) OVERHEAD VIDEO CABLE
(7) PERIPHERAL CONTROLLER (8) CAMERA POWER CABLE (9) CONTROL CABLES
(10) TOUCHPAD CONTROL CABLE (11) CAT5E NETWORK CABLE (12) CAMERA VIDEO CABLE
(13) ETHERNET SWITCH (14) RS232 / POWER (15) INTERCOM AUDIO
(16) TOUCHPAD CABLE INTERFACE (17) TO INTELLISHIELD
