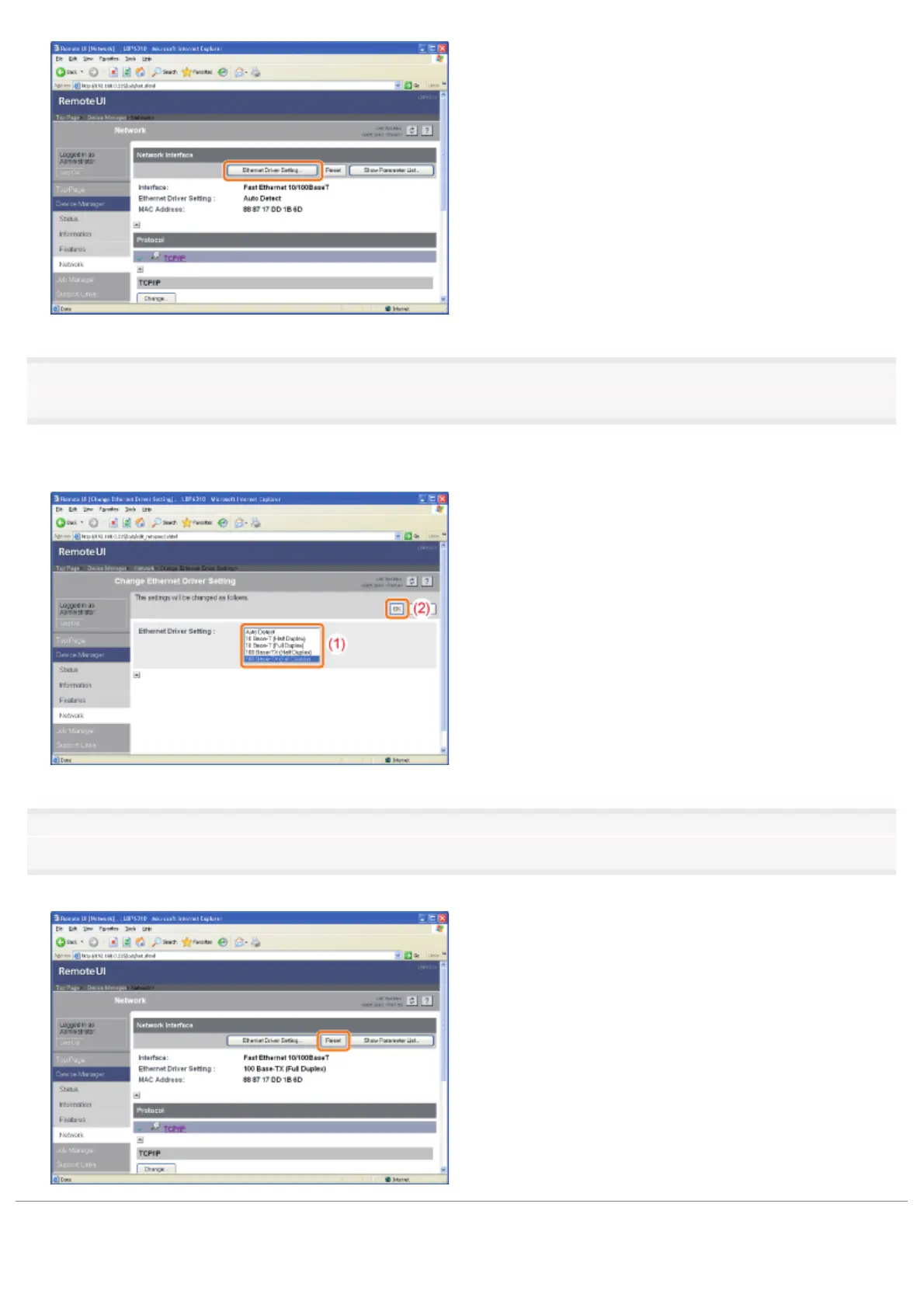

Change the network transmission speed or transfer mode.

(1) Select the transmission speed and transfer mode according to your environment.

(2) Click [OK].

Click [Reset].

After completing the reset, the settings are effective.

㻞㻢㻢㻌㻛㻌㻠㻡㻞
