5.16.2 SM-Resolver
Solutions Module error status values
The Solutions Module checks for various errors as shown below.
+ This trip can be enabled/disabled by Pr x.17.

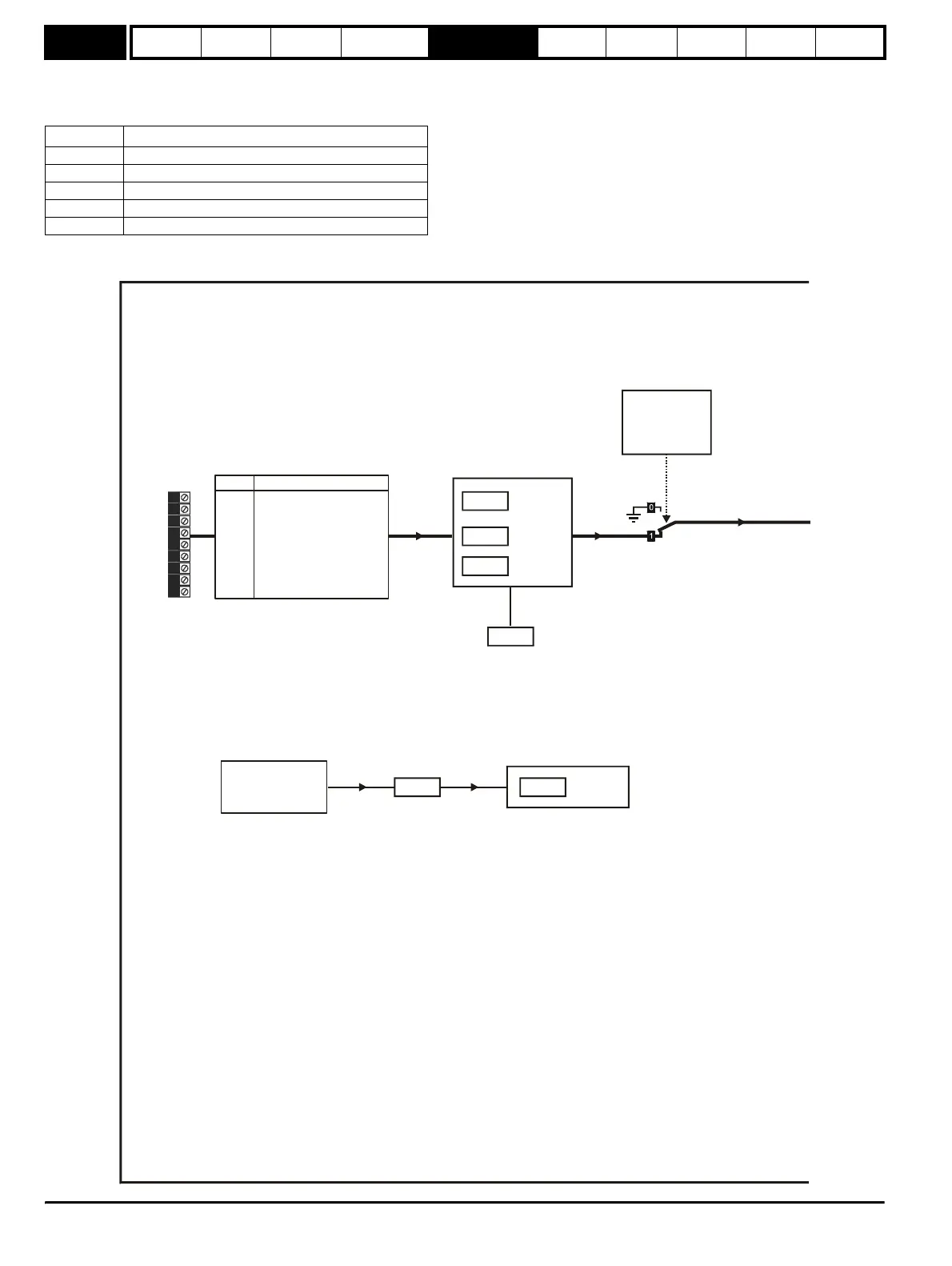

Figure 5-27 SM-Resolver logic diagram
Error code Reason for error
0 No fault detected
1 Excitation supply short circuit
2 +Wire-break detect
11 Resolver poles are not compatible with the motor
74 The Solutions Module has overheated.
SM-Applications
Freeze
flag
x.13
x.10
x.15
Equivalent
lines per
revolution
Resolver
excitation
Resolver
poles
Error detection
level
Term Resolver connections
9 SIN LOW
10 SIN HIGH
11 COS LOW
12 COS HIGH
13 REF HIGH (excitation)
14 REF LOW (excitation)
15 0V
16 0V
17 0V
x.39
x.17
Resolver
selected as
drive feedback
(Pr )
3.26
Freeze input
SM-Universal
Encoder Plus
x.36
Freeze
position
Freeze positional
information
