6.2 Macro 1 - Easy Mode
Macro 1 specific parameters
There are no additional parameters present other than those described
in Table 6-2 on page 327, as this is Easy mode.
Pr 0.11 to Pr 0.30 are not configured to point to any other parameter in
this mode.

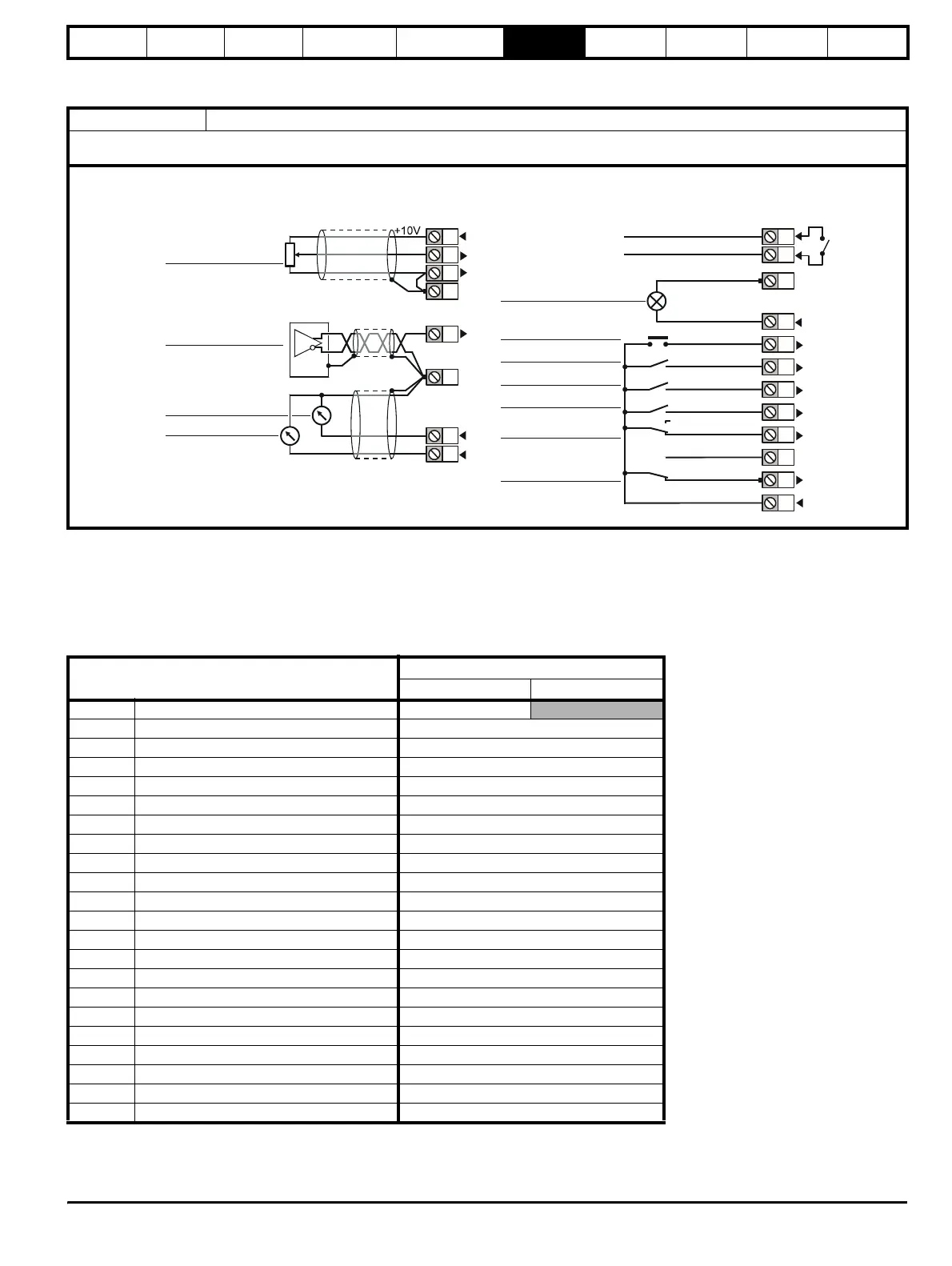

Table 6-3 Parameter set-up to reproduce Macro 1 on a Unidrive SP
Macro 1 Easy mode
The Easy mode macro gives the simplest operation of the drive for basic applications. It is identical to the default condition except that menu 0 has
less parameters.
RESET
JOG SELECT
RUN FORWARD
RUN REVERSE
ANALOG INPUT 1 /
INPUT 2 SELECT
0V common
0V common
ANALOG INPUT 1
ANALOG INPUT 2
Signal
connector
Status relay
Drive healthy
41
42
23
24
25
29
26
27
28
30
31
0V common
Analog
frequency/speed
reference 1
0 ~ 10V
SPEED
TORQUE
0V common
Analog
frequency/speed
reference 2
4 ~ 20mA
4
5
6
3
7
11
9
10
+24V
22
DRIVE ENABLE
T ZERO SPEED
Analog I/O Digital I/O
Parameter
Value
OL CL
5.14 Voltage mode select Fd
7.11 T9 - Analog input 2 mode 4-20
11.01 Define Pr 0.11 Pr 0.00
11.02 Define Pr 0.12 Pr 0.00
11.03 Define Pr 0.13 Pr 0.00
11.04 Define Pr 0.14 Pr 0.00
11.05 Define Pr 0.15 Pr 0.00
11.06 Define Pr 0.16 Pr 0.00
11.07 Define Pr 0.17 Pr 0.00
11.08 Define Pr 0.18 Pr 0.00
11.09 Define Pr 0.19 Pr 0.00
11.10 Define Pr 0.20 Pr 0.00
11.11 Define Pr 0.21 Pr 0.00
11.12 Define Pr 0.22 Pr 0.00
11.13 Define Pr 0.23 Pr 0.00
11.14 Define Pr 0.24 Pr 0.00
11.15 Define Pr 0.25 Pr 0.00
11.16 Define Pr 0.26 Pr 0.00
11.17 Define Pr 0.27 Pr 0.00
11.18 Define Pr 0.28 Pr 0.00
11.19 Define Pr 0.29 Pr 0.00
11.20 Define Pr 0.30 Pr 0.00
