302 Unidrive SP Advanced User Guide
www.controltechniques.com Issue Number: 7

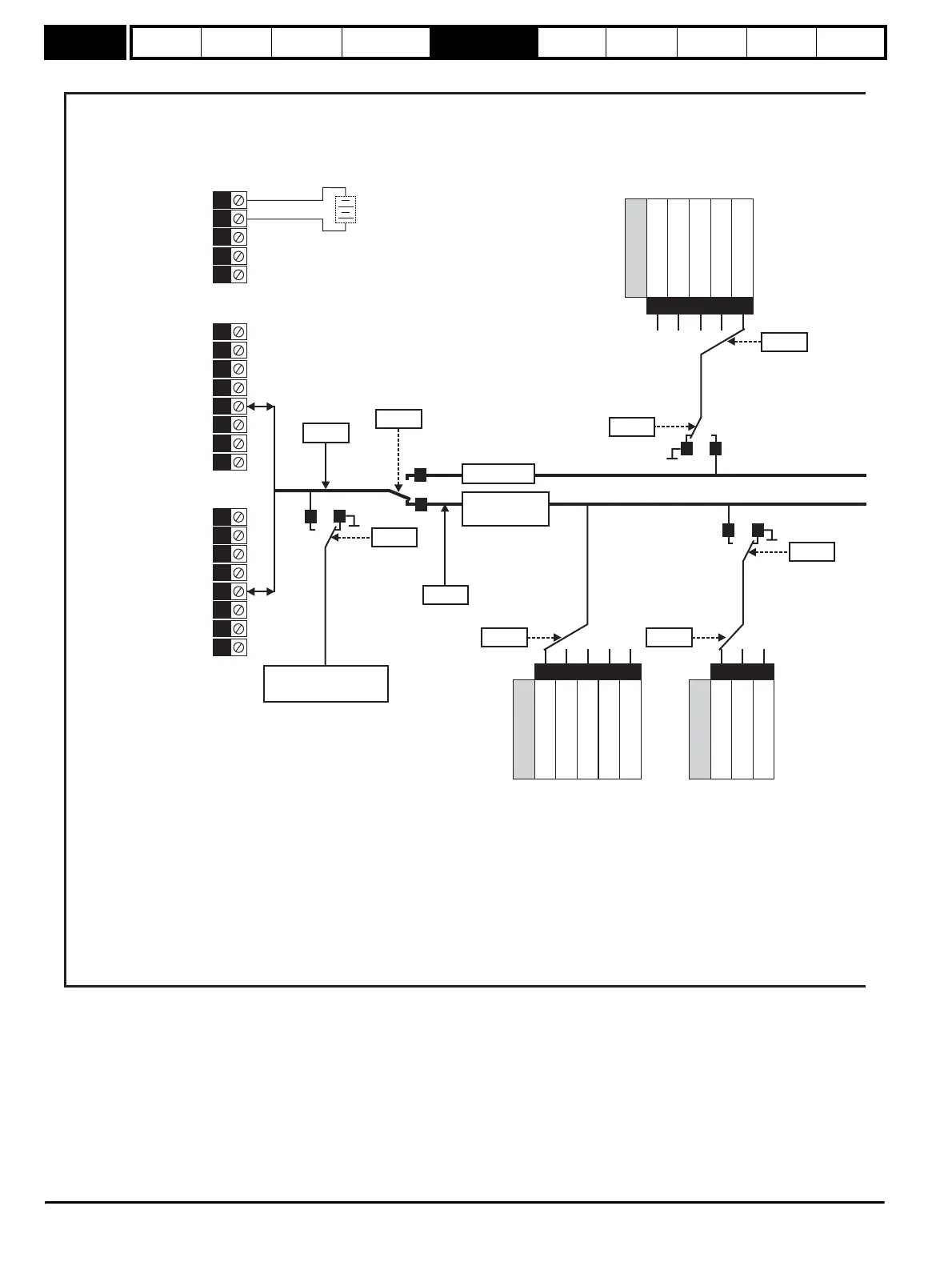

Figure 5-32 SM-SLM logic diagram
1
2
3
4
5
6
7
8
RS485 DriveLink COM
RS485 DriveLink COM/
Drive status
Enable (SLM)
24Vdc (SLM)
Isolated 0V (SLM)
Not connected
Not connected
1
2
3
4
5
6
7
8
RS485 DriveLink COM
RS485 DriveLink COM/
Drive status
Enable (SLM)
Not connected
Isolated 0V (SLM)
24Vdc (SLM)
Not connected
5
4
3
2
1
Isolated 0V / screen (SLM)
Battery 24Vdc input
Isolated 0V / screen (SLM)
Not used
Not used
5-way terminal
RJ45 MC port
RJ45 SLM port
Back-up battery
connection
(if required)
x.07
x.10
Encoder
lines
per rev
1
0
Operating
mode
Host mode
Encoder only
mode
1
0
Pr = 8kHz
Pr = SM-SLM slot
5.18
3.26
x.30
Auto basic
drive set-up
x.12
SLM power-
up delay
1
2
3
4
0
Read data from SLM
EEPROM
(CT Coder)
Idle Idle Idle Reset
Encoder only mode
x.26
Autotune
mode
1
0
x.29
Action save to
SLM EEPROM
(CT Coder)
1
2
0
Idle High performance
Encoder only mode
Normal performance
x.27
Saving
mode
1
0
x.29
1
2
3
4
0
Idle Pulse test tuning Full tuning Reset Host mode
Action
autotune
and saving
parameters
x.26
Autotune
mode
Parameters valid or set externally
