Datalogic Magellan 8500Xt User Manual

A-4 Magellan
TM
8500Xt Scanner
Deactivator LED
The Deactivator LED (tri-color, bottom-most) designates EAS deactiva-
tion status (see
Table 1-2). The table also provides information about spe-
cial beeper indications which can be sounded in response to changes in
deactivation st
atus.

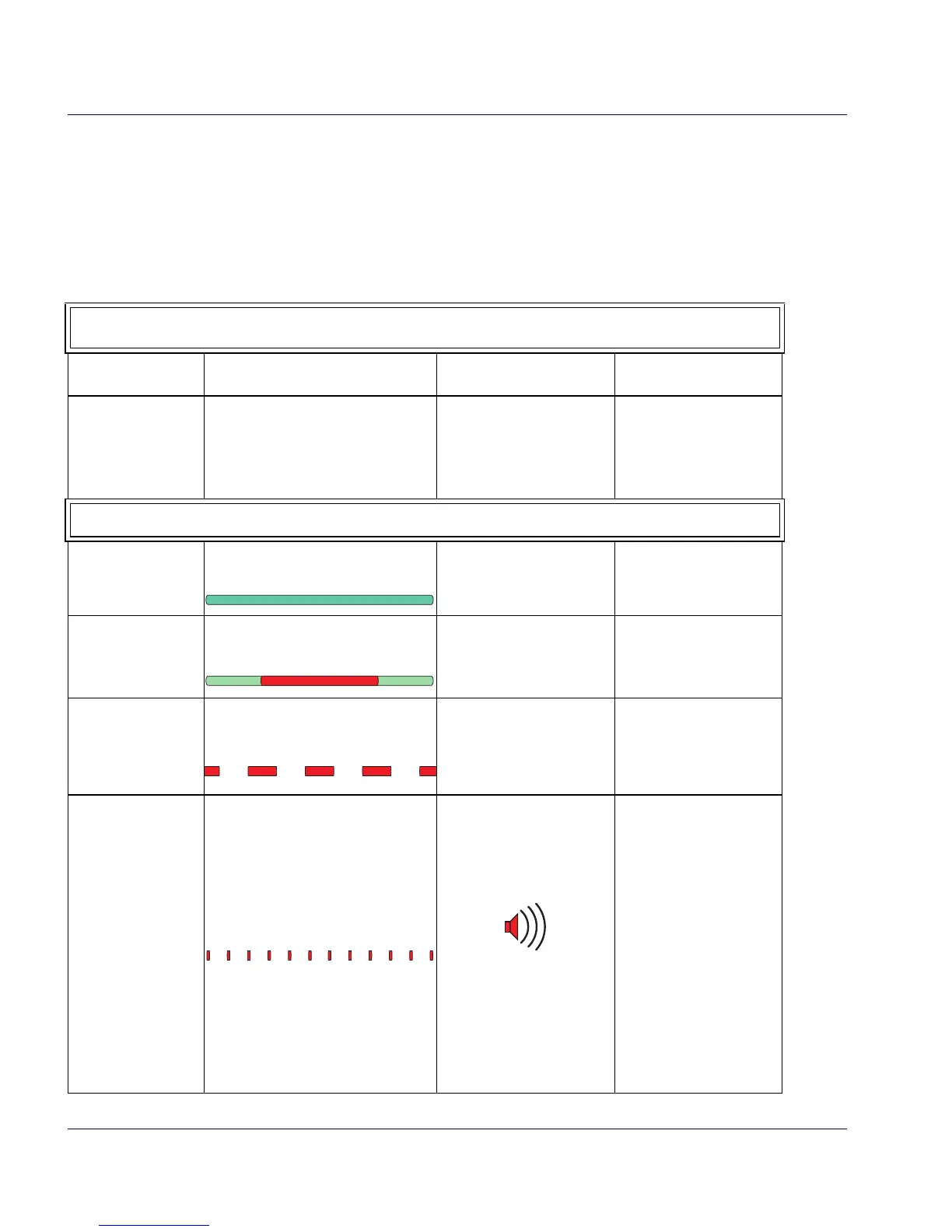

Table 1-2. EAS Indications
EAS DEACTIVATION DISABLED
INDICATION LED DURATION EAS BEEPER COMMENT
Deactivation
Di
sabled
Deactivation (Tri-color) LED is
OFF
OFF
Deactivation mode
must be sel
ected via
programming. Refer-
ence
EAS Mode.
ALL MODES (COUPLED, DECOUPLED, HYBRID or HOST)
Deactivation
Ready
Deactivation (Tri-color) LED is
lit ste
adily Green.
OFF Deactivation is ready.
EAS tag
Detec
ted
Deactivation (Tri-color) LED
flashes Red.
OFF
An EAS tag has
been se
nsed in the
scan volume.
Power-up
Initialization
Deactivation (Tri-color) LED
a
blinks ON/OFF Red.
OFF
System is attempt-
ing to initialize EAS
EAS Error
Deactivation (Tri-color) LED
flashes Red while FR
U Status
LED flashes error code nine
(9)
.
Low frequency beep
(1
second)
EAS system is not
on line.

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
