Datalogic Magellan 8500Xt User Manual

Product Reference Guide A-5

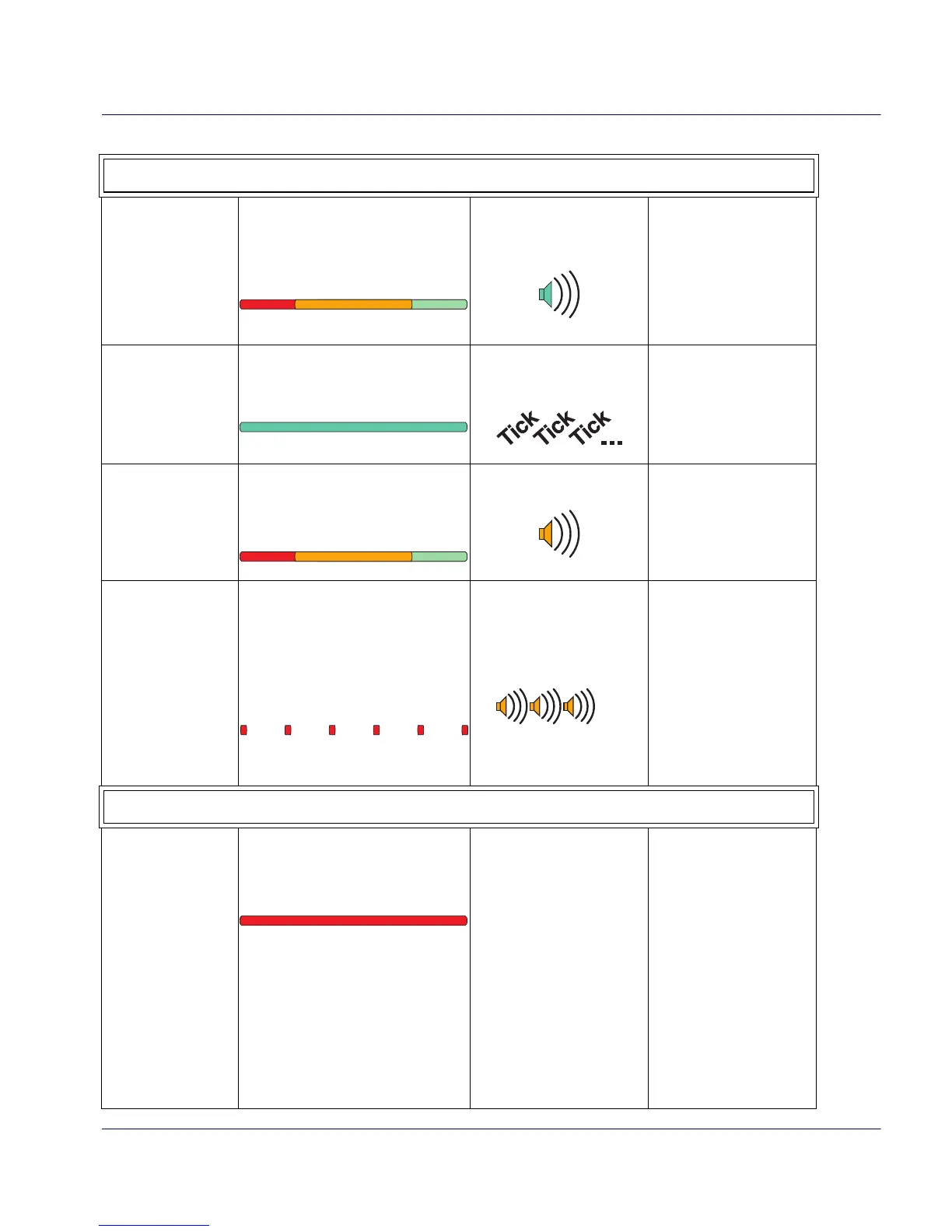

COUPLED MODE ONLY
Deactivation
Indicated
Deactivation (Tri-color) LED
flashes Red, then Or
ange,
then returns to Green.
Good read beep fol-
lows deactivation.
The EAS antenna
has been triggered
ON to deactivate a
label following suc-
cessful barcode
read.
Manual Deacti-
vation in Prog-
ress
Deactivation (Tri-color) LED is
lit ste
adily Green.
Ticking sound (for con-
figurable duration)
The Manual EAS
Deactivation Push
Button was pressed
& released
b
.
Manual
Deactivation
Succes
sful
Deactivation (Tri-color) LED
flashes Red, then Or
ange,
then returns to Green.
High frequency beep
An EAS tag was suc-
cessfully deacti-
vated via manual
push b
utton.
Deactivate EAS
Syst
em When
Failed
Deactivation (Tri-color) LED is
flashing slo
wly Red. FRU Sta-
tus LED displays error code
nine (9)
Upon initiating this
state (pressing EAS
Button for 3 seconds):
3 high-pitched beeps
Upon EAS malfunc-
tion/failure, scanning
function can contin
ue
independent of EAS
if the EAS button is
held for 3 seconds.
DECOUPLED MODE
Deactivation
Indicated
Deactivation (Tri-color) LED
flashes Red.
EAS Beep OFF
An EAS tag has
been successfully
deactivated.
Table 1-2. EAS Indications

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
