Datalogic Magellan 8500Xt

2-14 Magellan
TM
8500Xt Scanner
Refer to the appropriate drawing (Figure 2-6, Model 8500; Figure 2-9,
Models 8501 and 8502) for dimensional information on the model you’ll
be
installing.

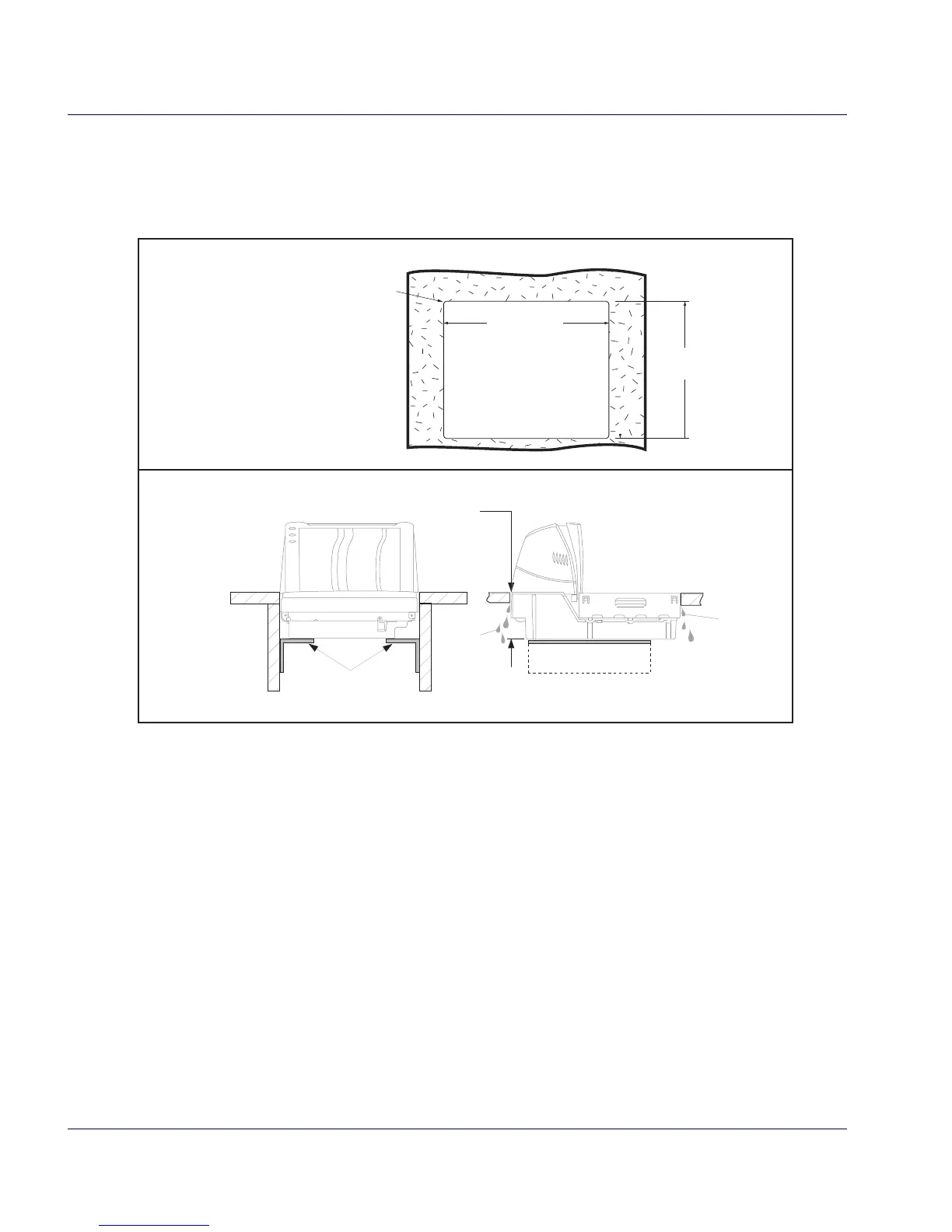

Figure 2-6. Models 8500 & 8501 (Short Scanner Models) Cutout Dimensions
Models 8500 & 8505
Cutout
Model 8500 & 8505
Supports
11.625"
(29.53cm)
Max. Radius = 0.25"
(0.635cm) 4x
5" ±.062 (12.7cm)
Liquid
Drainage
Liquid
Drainage
Support Rails
16.625" ± .060"
(42.23cm)
