Datalogic Magellan 8500Xt User Manual

Product Reference Guide 2-15

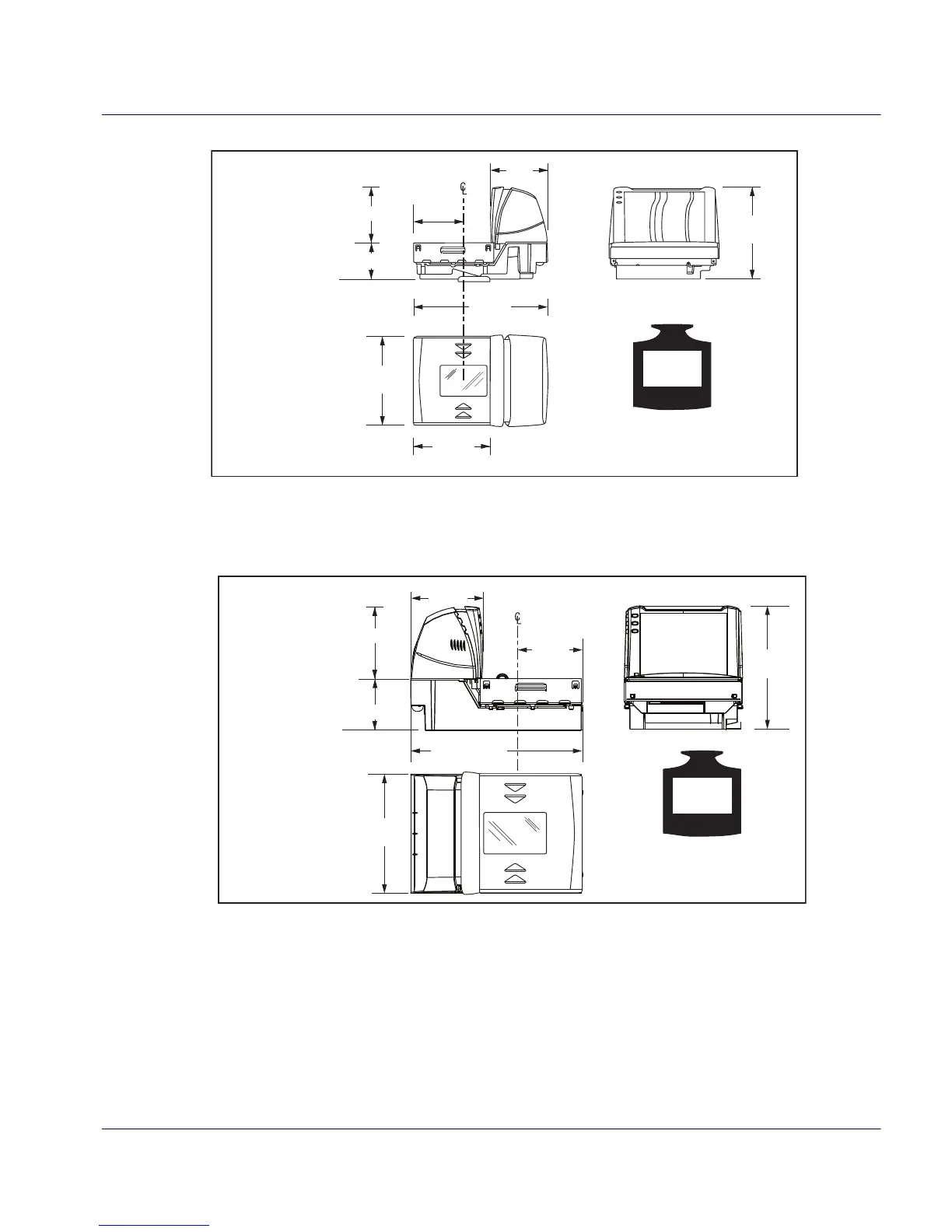

Figure 2-7. Model 8500 (Short Scanner) Reference Dimensions
Model 8500
Reference
Dimensions
22 lb.
(10kg)
Scanner Weight
11.5"
(29.21cm)
7.75"
(19.69cm)
16.5"
41.91cm)
5.0" (12.7cm)
7.0" (17.78cm)
12.0"
(30.5cm)
6.2"
(15.75cm)
Window
6.95"
(17.65cm)
Figure 2-8. Model 8505 (Short Scanner) Reference Dimensions
Model 8505
Reference
Dimensions
18 lb.
(8.2kg)
Scanner Weight
5.0" (12.7cm)
7.0" (17.78cm)
Window
B
C
12.0"
(30.4cm)
7.0"
(17.8cm)
6.26"
(15.9cm)
16.60” (42.16cm)
11.50"
(29.21cm)
Figure 2-9. Models 8501, 8502, 8503 & 8504 Long Scanner or Scanning-Scale Cutout

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
