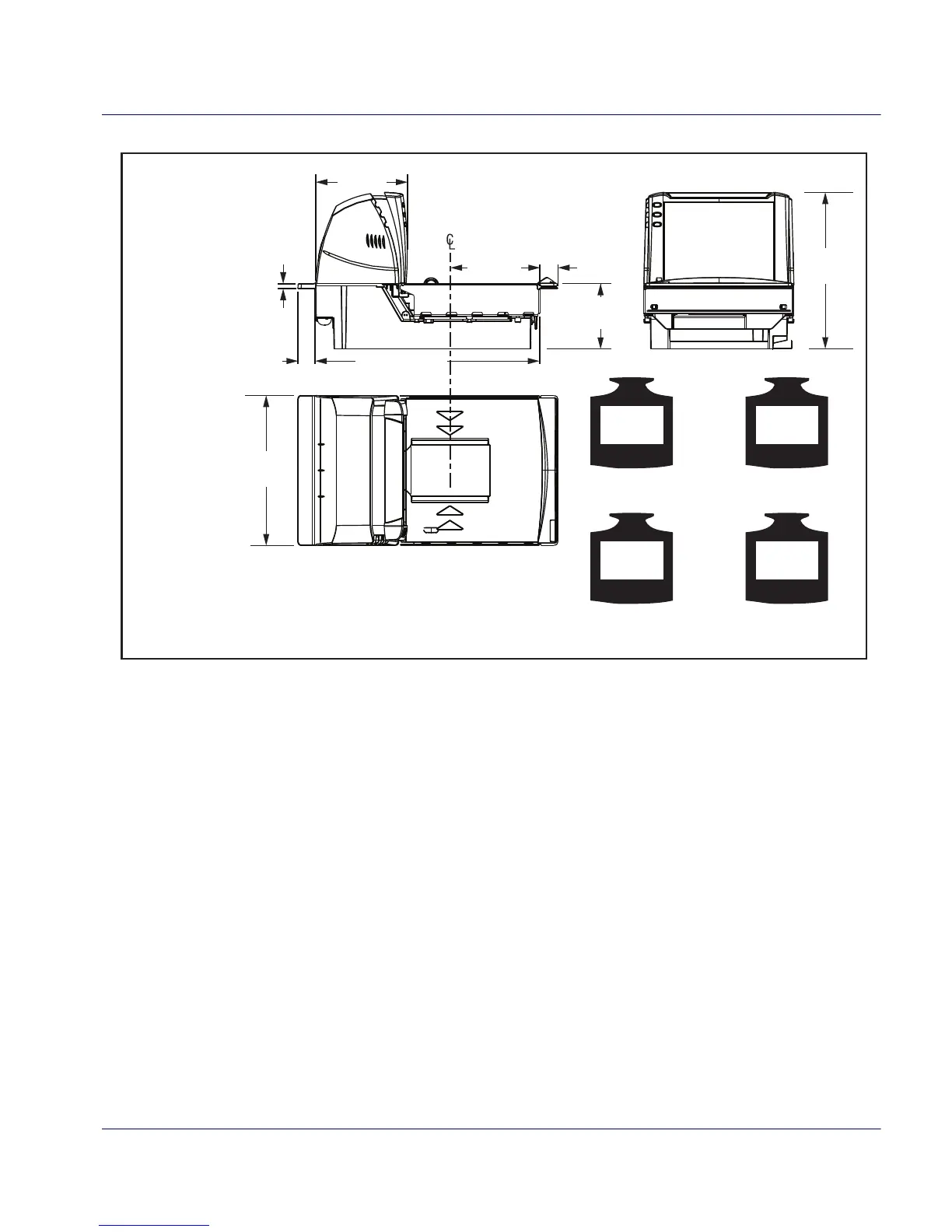

Figure 2-11. Models 8503 and 8504 Long Scanner or Scanning-Scale Reference Dimensions
Model 8503
& Model 8504
Reference
Dimensions
23 lb.
(10.4kg)
Scanner/Scale
Weight
20 lb.
(9.1kg)
Scanner
Weight (w/o scale)
23.6 lb.
(10.7kg)
Scanner/Scale
Weight
with Sensormatic Option
20.6 lb.
(9.4kg)
Scanner
Weight (w/o scale)
with Sensormatic Option
5.0"
(12.7cm)
11.50"
(29.21cm)
12.0"
(30.4cm)
Window
7.0"
(17.8cm)
6.86"
(17.44cm)
1.37"
(3.49cm)
2x 0.37”
(0.94cm)
1.32”
(3.35cm)
17.26” (43.83cm)
