3-16 Magellan
TM
8500Xt Scanner
Slide-in Window Models
1. Remove the All Weighs™ Platter from the scanner as shown in
Figure 3-3.
2. Turn the platter upside down on a
clean, dry surface and remove
the four screws shown in
Figure 3-5. Retain all screws for later
reinstallation.
3. Once the vertical bezel is freed from the platter, the DLC window
can be slid from its channel
as shown. Carefully dispose of any
damaged glass.
4. Slide a new horizontal window fully into the channel.
5. Reinstall the vertical bezel using the original four screws.
6. Clean both sides of the new horizontal window using a paper
to
wel or lint free cleaning tissues dampened with a mild, water-
based glass cleaner. DO NOT use abrasive cleaners or pads.
7. Reinstall the platter. Slide-in horizontal window replacement is
no
w complete.

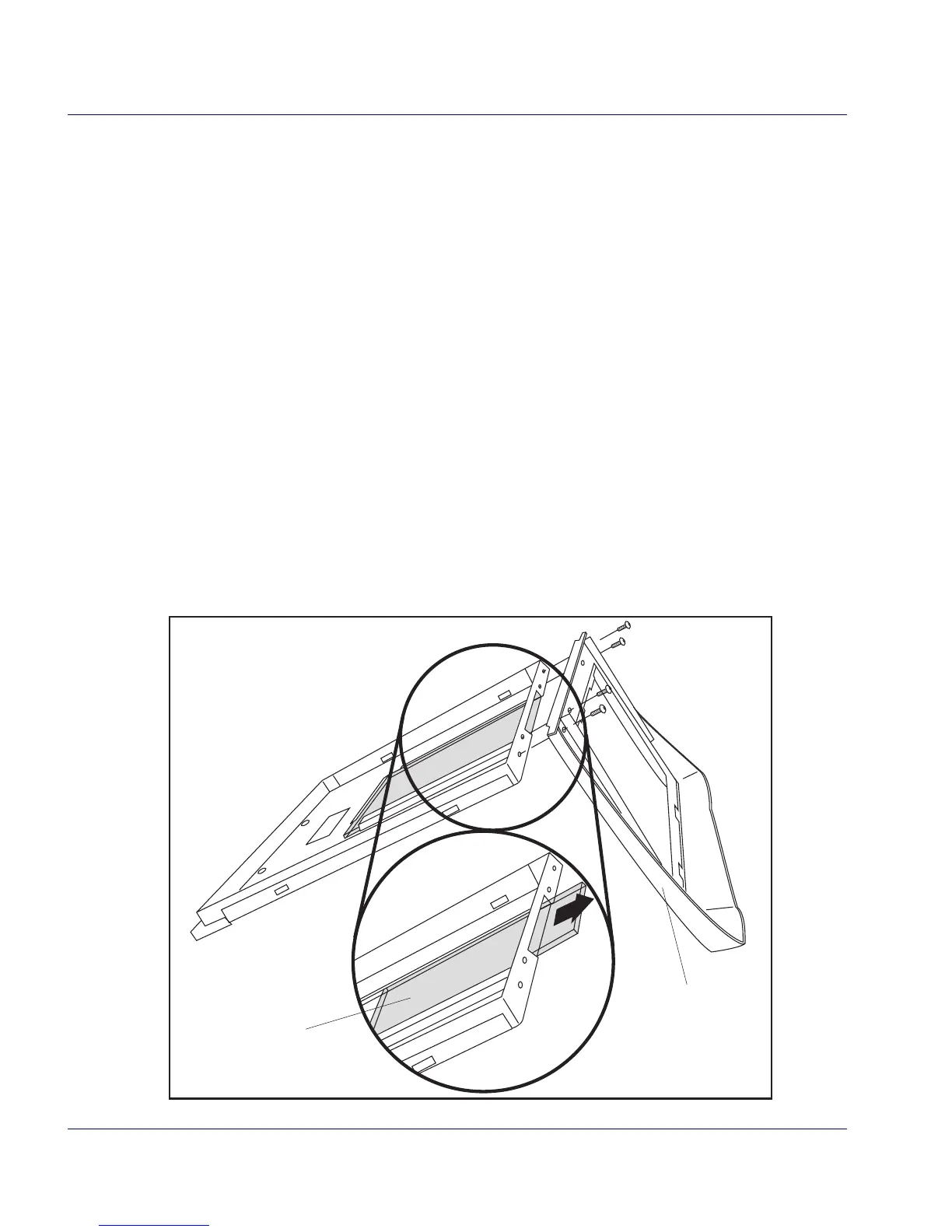

Figure 3-5. Removing/Replacing the Slide-in DLC Window
Slide DLC
Window Out
Remove
Vertical Bezel

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
