For more information about eVLT, refer to the Virtual Link Trunking (VLT) chapter. The core or Layer 3 routers
C and D in local VLT Domain and C1 and D1 in the remote VLT Domain are then part of a Layer 3 cloud.

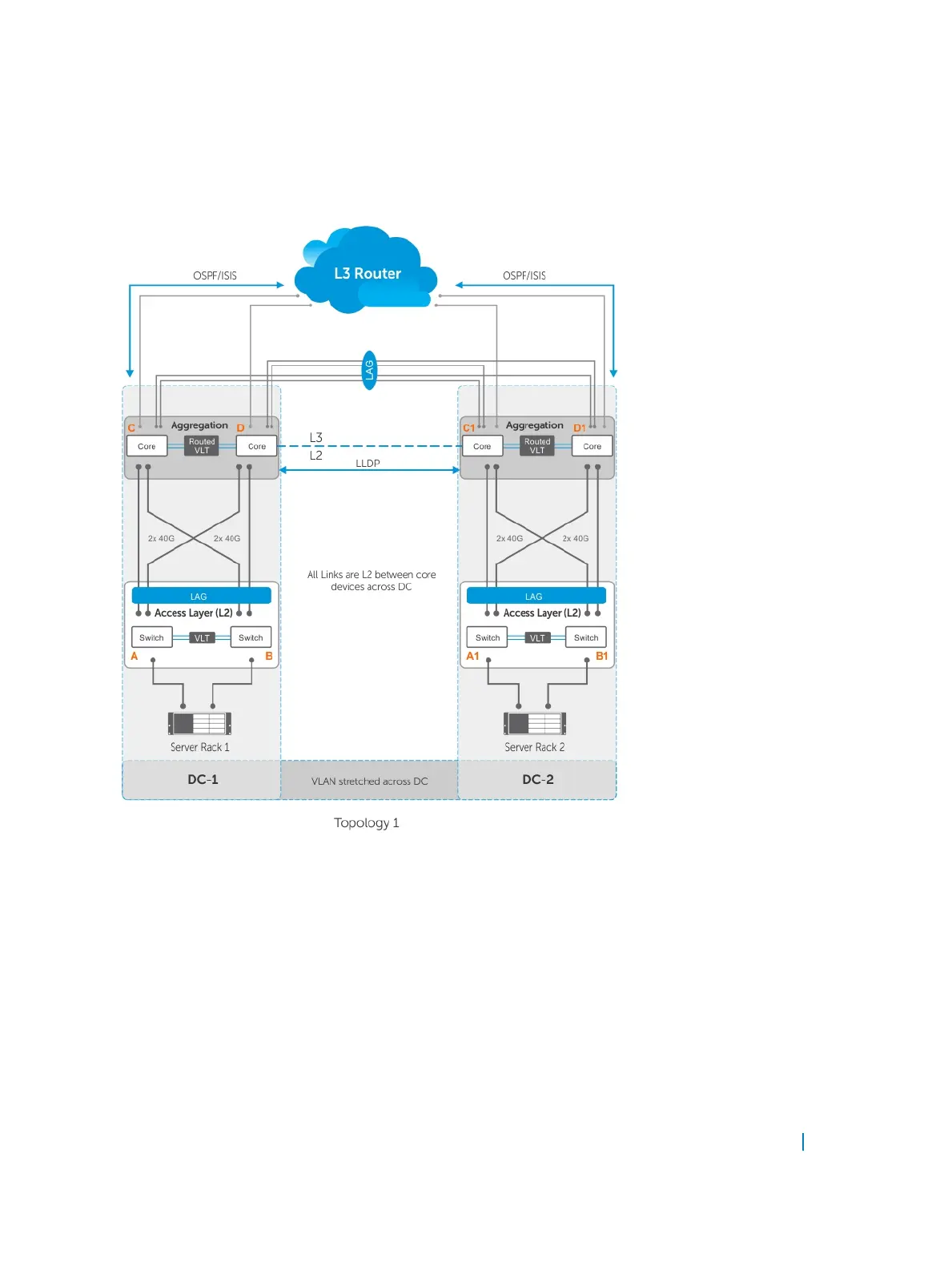

Figure 137. Sample Configuration for a VLT Proxy Gateway
Guidelines for Enabling the VLT Proxy Gateway
Keep the following points in mind when you enable a VLT proxy gateway:
• Proxy gateway is supported only for VLT; for example, across a VLT domain.
• You must enable the VLT peer-routing command for the VLT proxy gateway to function.
• Asymmetric virtual local area network (VLAN) configuration, such as the same VLAN configured with
Layer 2 (L2) mode on one VLT domain and L3 mode on another VLT domain is not supported. You must
always configure the same mode for the VLANs across the VLT domain.
• You must maintain VLAN symmetry within a VLT domain.
VLT Proxy Gateway 1108

Dell S4048T Specifications

General

Switching Capacity	1.44 Tbps
Rack Units	1U
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Optional
Product Type	Switch
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, VRRP, PIM-SM, IGMP
Remote Management Protocol	SNMP, RMON, Telnet, SSH
Features	Quality of Service (QoS), Jumbo Frames Support, Virtual Route Redundancy Protocol (VRRP), VLAN support, sFlow, Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae
Dimensions (W x D x H)	17.3 in x 16 in x 1.7 in
Operating Temperature	0°C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
