Private VLAN Configuration Example
The following example shows a private VLAN topology.

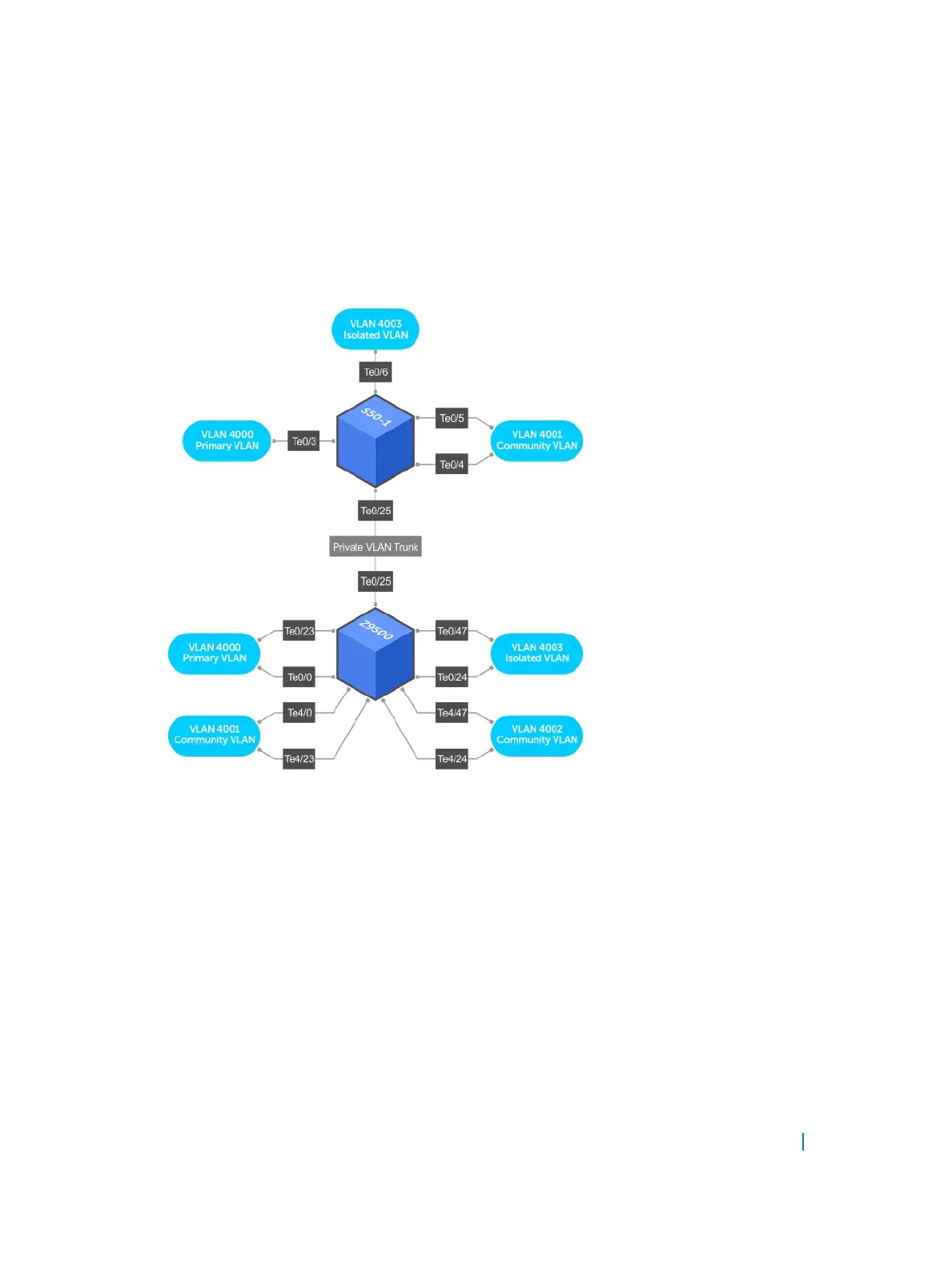

Figure 108. Sample Private VLAN Topology
The following configuration is based on the example diagram for the Z9500:
• Te 1/1 and Te 1/23 are configured as promiscuous ports, assigned to the primary VLAN, VLAN 4000.
• Te 1/25 is configured as a PVLAN trunk port, also assigned to the primary VLAN 4000.
• Te 1/24 and Te 1/47 are configured as host ports and assigned to the isolated VLAN, VLAN 4003.
• Te 4/1 and Te 23 are configured as host ports and assigned to the community VLAN, VLAN 4001.
• Te 4/24 and Te 4/47 are configured as host ports and assigned to community VLAN 4002.
The result is that:
• The ports in community VLAN 4001 can communicate directly with each other and with promiscuous
ports.
• The ports in community VLAN 4002 can communicate directly with each other and with promiscuous
ports.
Private VLANs (PVLAN) 816

Dell S4048T Specifications

General

Switching Capacity	1.44 Tbps
Rack Units	1U
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Optional
Product Type	Switch
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, VRRP, PIM-SM, IGMP
Remote Management Protocol	SNMP, RMON, Telnet, SSH
Features	Quality of Service (QoS), Jumbo Frames Support, Virtual Route Redundancy Protocol (VRRP), VLAN support, sFlow, Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae
Dimensions (W x D x H)	17.3 in x 16 in x 1.7 in
Operating Temperature	0°C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
