PIM-Sparse Mode Support on VLT

The designated router functionality of the PIM Sparse-Mode multicast protocol is supported on VLT peer

switches for multicast sources and receivers that are connected to VLT ports.

VLT peer switches can act as a last-hop router for IGMP receivers and as a first-hop router for multicast

sources.

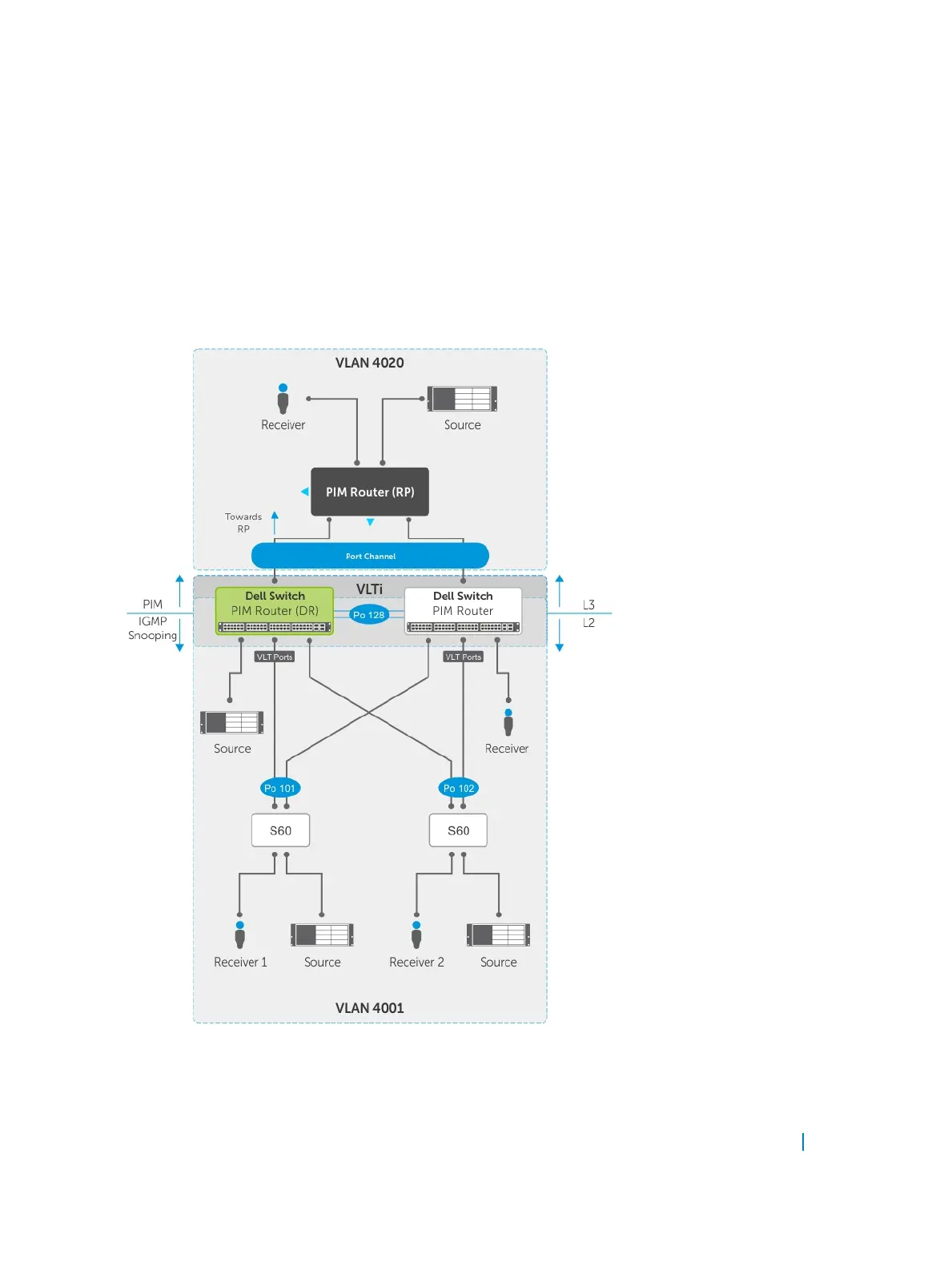

Figure 141. PIM-Sparse Mode Support on VLT

Virtual Link Trunking (VLT) 1125
