Dell S4048T User Manual

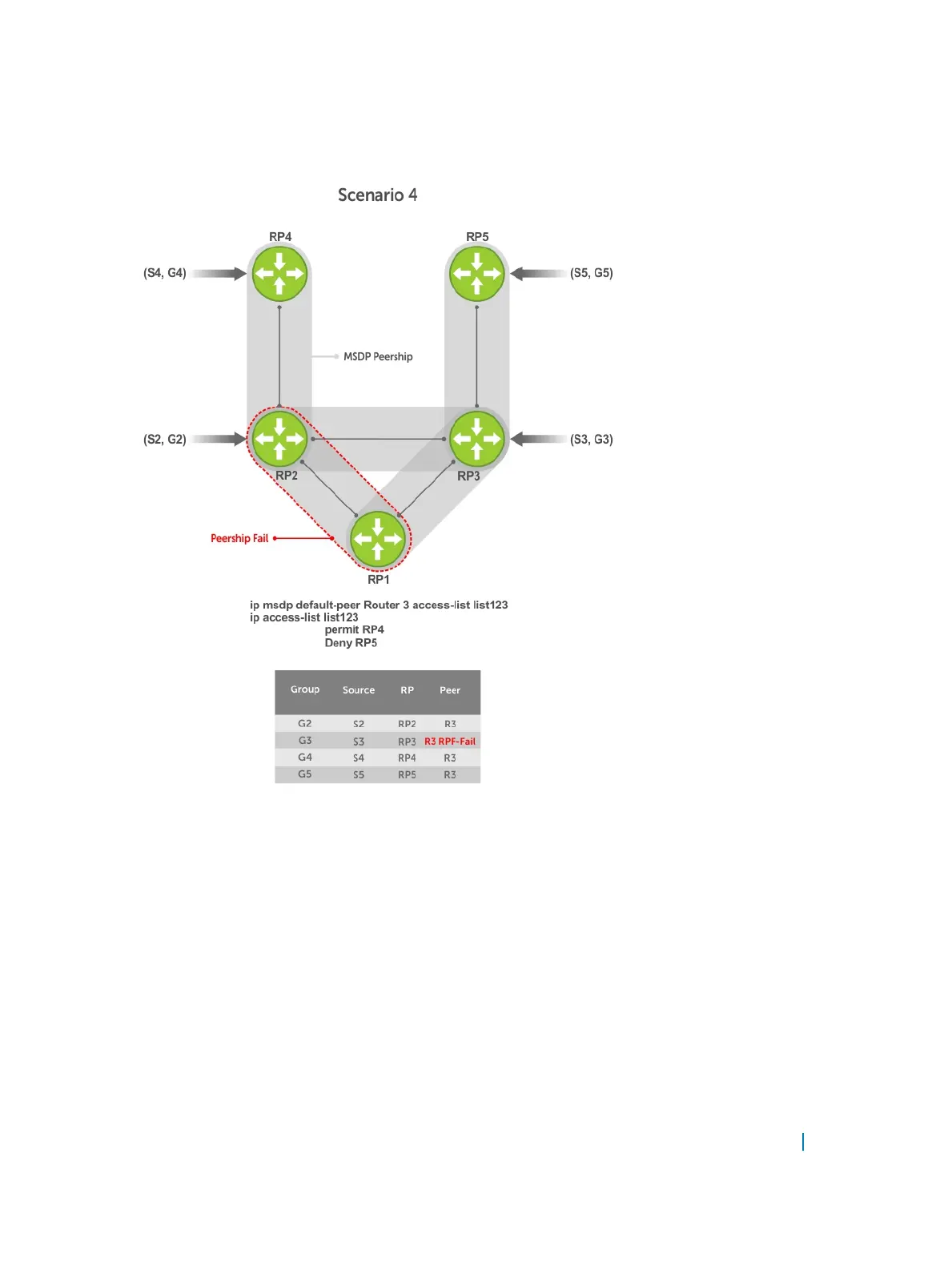

Figure 93. MSDP Default Peer, Scenario 4
Specifying Source-Active Messages
To specify messages, use the following command.
• Specify the forwarding-peer and originating-RP from which all active sources are accepted without regard
for the RPF check.
CONFIGURATION mode
ip msdp default-peer ip-address list
If you do not specify an access list, the peer accepts all sources that peer advertises. All sources from RPs
that the ACL denies are subject to the normal RPF check.
Multicast Source Discovery Protocol (MSDP) 655

Dell S4048T Specifications

General

Switching Capacity	1.44 Tbps
Rack Units	1U
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Optional
Product Type	Switch
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, VRRP, PIM-SM, IGMP
Remote Management Protocol	SNMP, RMON, Telnet, SSH
Features	Quality of Service (QoS), Jumbo Frames Support, Virtual Route Redundancy Protocol (VRRP), VLAN support, sFlow, Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae
Dimensions (W x D x H)	17.3 in x 16 in x 1.7 in
Operating Temperature	0°C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
