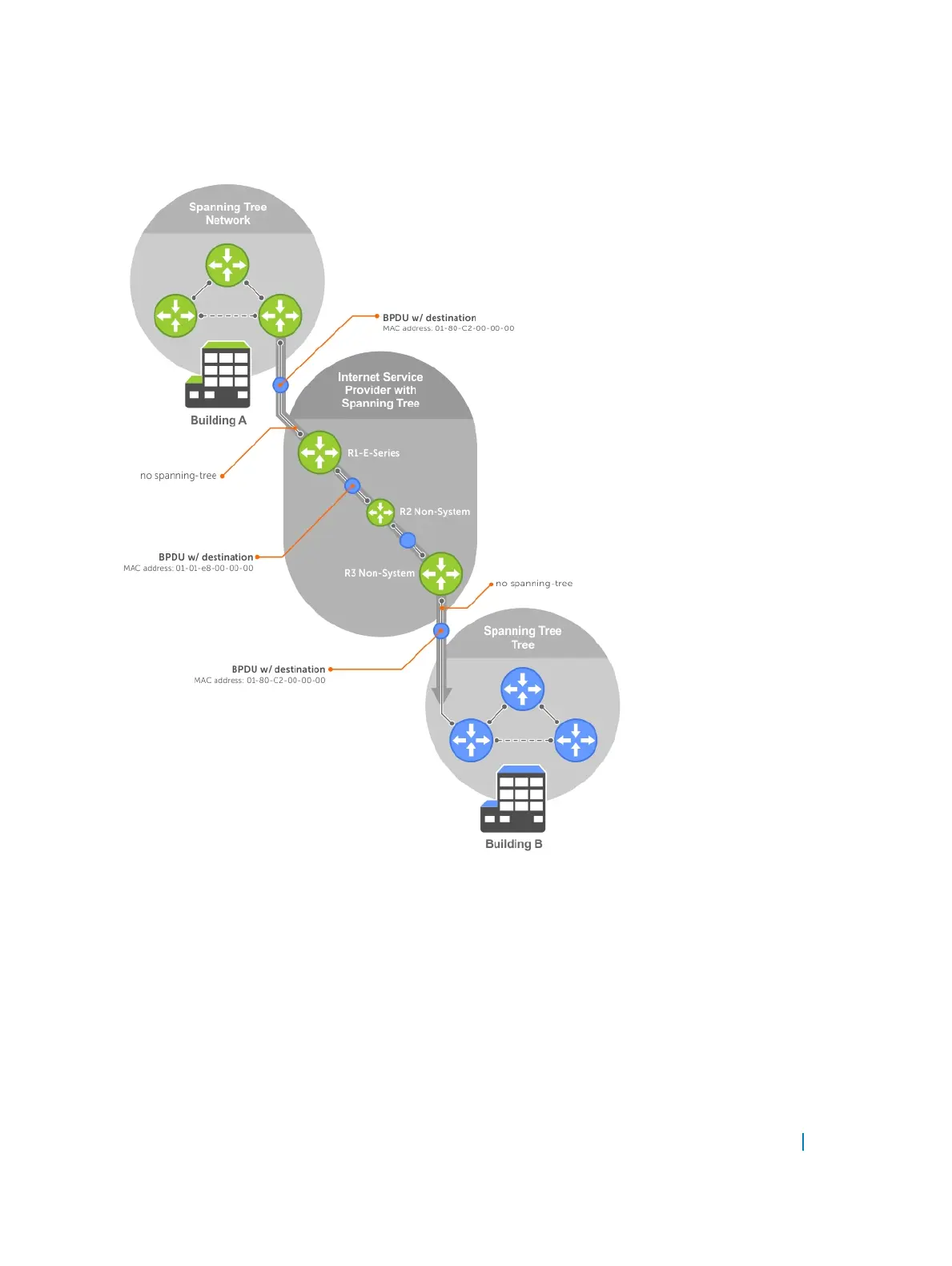

Figure 123. VLAN Stacking with L2PT

Implementation Information

• L2PT is available for STP, RSTP, MSTP, and PVST+ BPDUs.

• No protocol packets are tunneled when you enable VLAN stacking.

• L2PT requires the default CAM profile.

Service Provider Bridging 965
