Dell S4048T User Manual

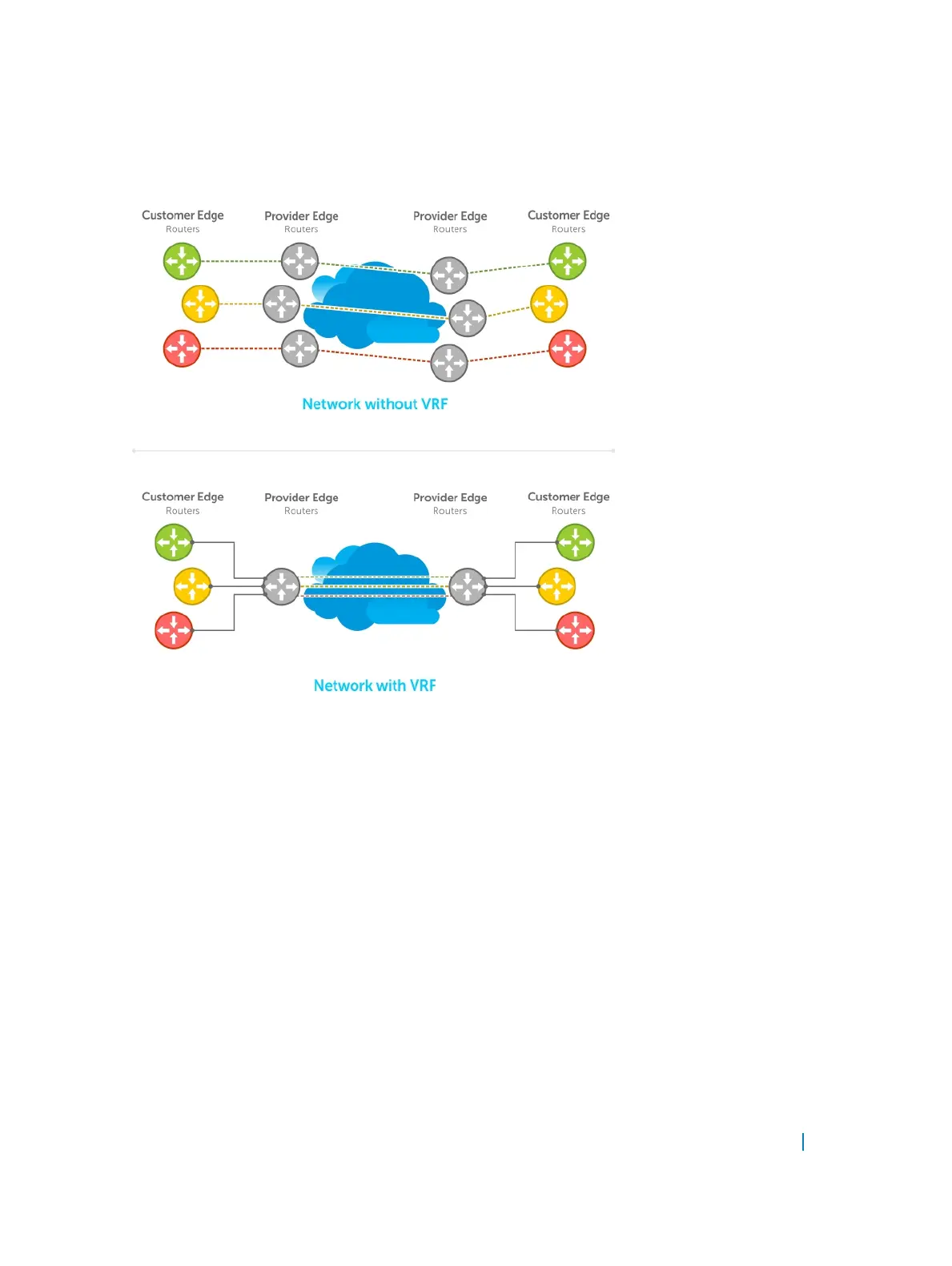

Figure 154. VRF Network Example
VRF Configuration Notes
Although there is no restriction on the number of VLANs that can be assigned to a VRF instance, the total
number of routes supported in VRF is limited by the size of the IPv4 CAM.
VRF is implemented in a network device by using Forwarding Information Bases (FIBs).
A network device may have the ability to configure different virtual routers, where entries in the FIB that
belong to one VRF cannot be accessed by another VRF on the same device. Only Layer 3 interfaces can
belong to a VRF. VRF is supported on following types of interface:
• Physical Ethernet interfaces
• Port-channel interfaces (static & dynamic using LACP)
• VLAN interfaces
• Loopback interfaces
Virtual Routing and Forwarding (VRF) 1187

Dell S4048T Specifications

General

Switching Capacity	1.44 Tbps
Rack Units	1U
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Optional
Product Type	Switch
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, VRRP, PIM-SM, IGMP
Remote Management Protocol	SNMP, RMON, Telnet, SSH
Features	Quality of Service (QoS), Jumbo Frames Support, Virtual Route Redundancy Protocol (VRRP), VLAN support, sFlow, Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae
Dimensions (W x D x H)	17.3 in x 16 in x 1.7 in
Operating Temperature	0°C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
