Dell S4048T User Manual

Console Access
The device has one RJ-45/RS-232 console port, an out-of-band (OOB) Ethernet port, and a micro USB-B
console port.
Serial Console
The RJ-45/RS-232 console port is labeled on the upper right-hand side, as you face the PSU side of the
chassis.

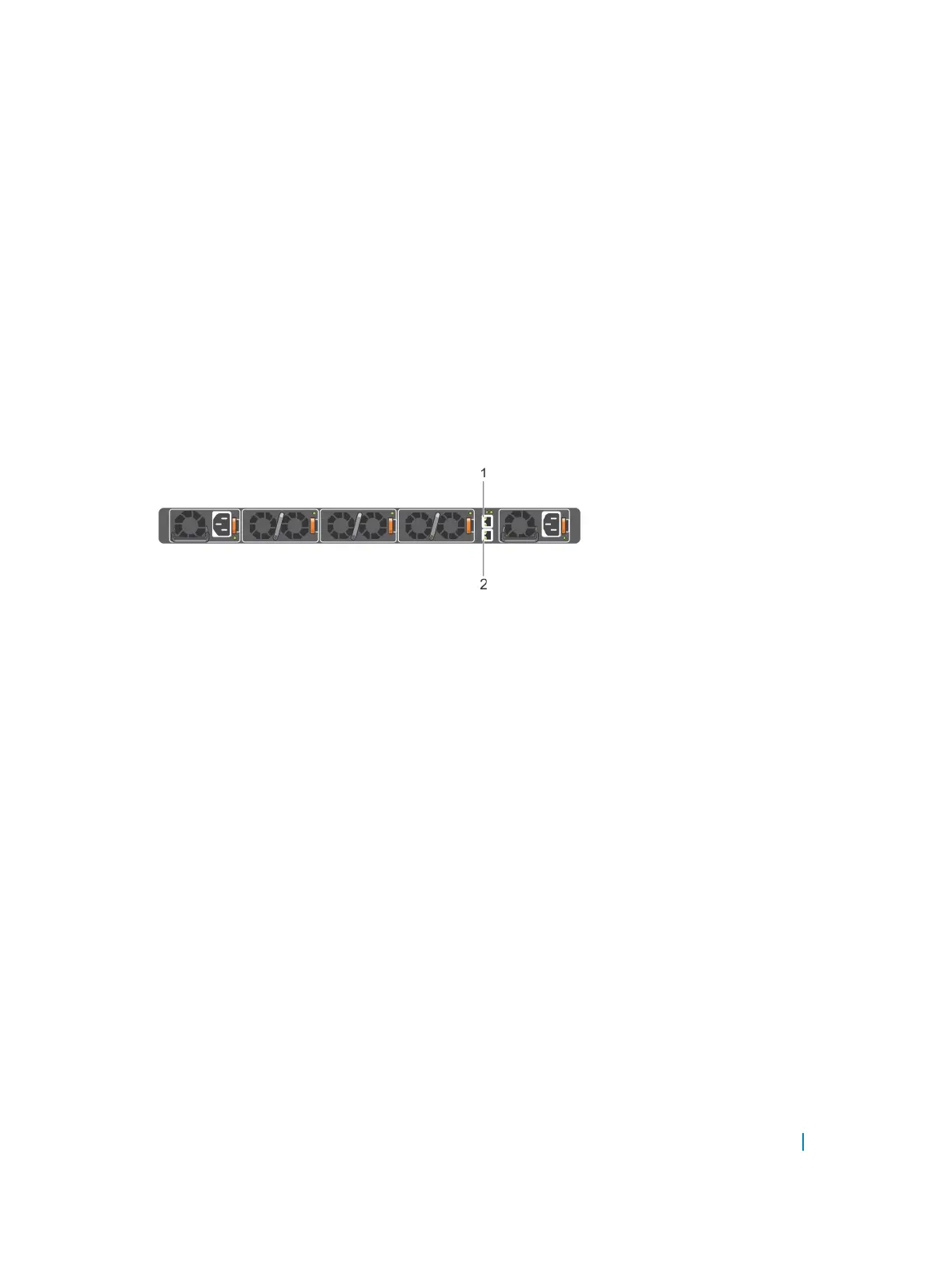

Figure 1. RJ-45 Console Port
1 RJ-45 management Ethernet port. 2 RS-232 console port.
Accessing the Console Port
To access the console port, follow these steps:
For the console port pinout, refer to Accessing the RJ-45 Console Port with a DB-9 Adapter.
1 Install an RJ-45 copper cable into the console port.Use a rollover (crossover) cable to connect the
S4810 console port to a terminal server.
2 Connect the other end of the cable to the DTE terminal server.
3 Terminal settings on the console port cannot be changed in the software and are set as follows:
• 115200 baud rate
• No parity
• 8 data bits
• 1 stop bit
• No flow control
Getting Started 51

Dell S4048T Specifications

General

Switching Capacity	1.44 Tbps
Rack Units	1U
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Optional
Product Type	Switch
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, VRRP, PIM-SM, IGMP
Remote Management Protocol	SNMP, RMON, Telnet, SSH
Features	Quality of Service (QoS), Jumbo Frames Support, Virtual Route Redundancy Protocol (VRRP), VLAN support, sFlow, Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae
Dimensions (W x D x H)	17.3 in x 16 in x 1.7 in
Operating Temperature	0°C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
