Dell S4048T - Configuring Vxlan Gateway; Connecting to an NVP Controller

A logical switch port provides a logical connection point for a VM interface (VIF) and a L2 gateway
connection to an external network. It binds the virtual access ports in the GW to logical network (VXLAN)
and VLAN.

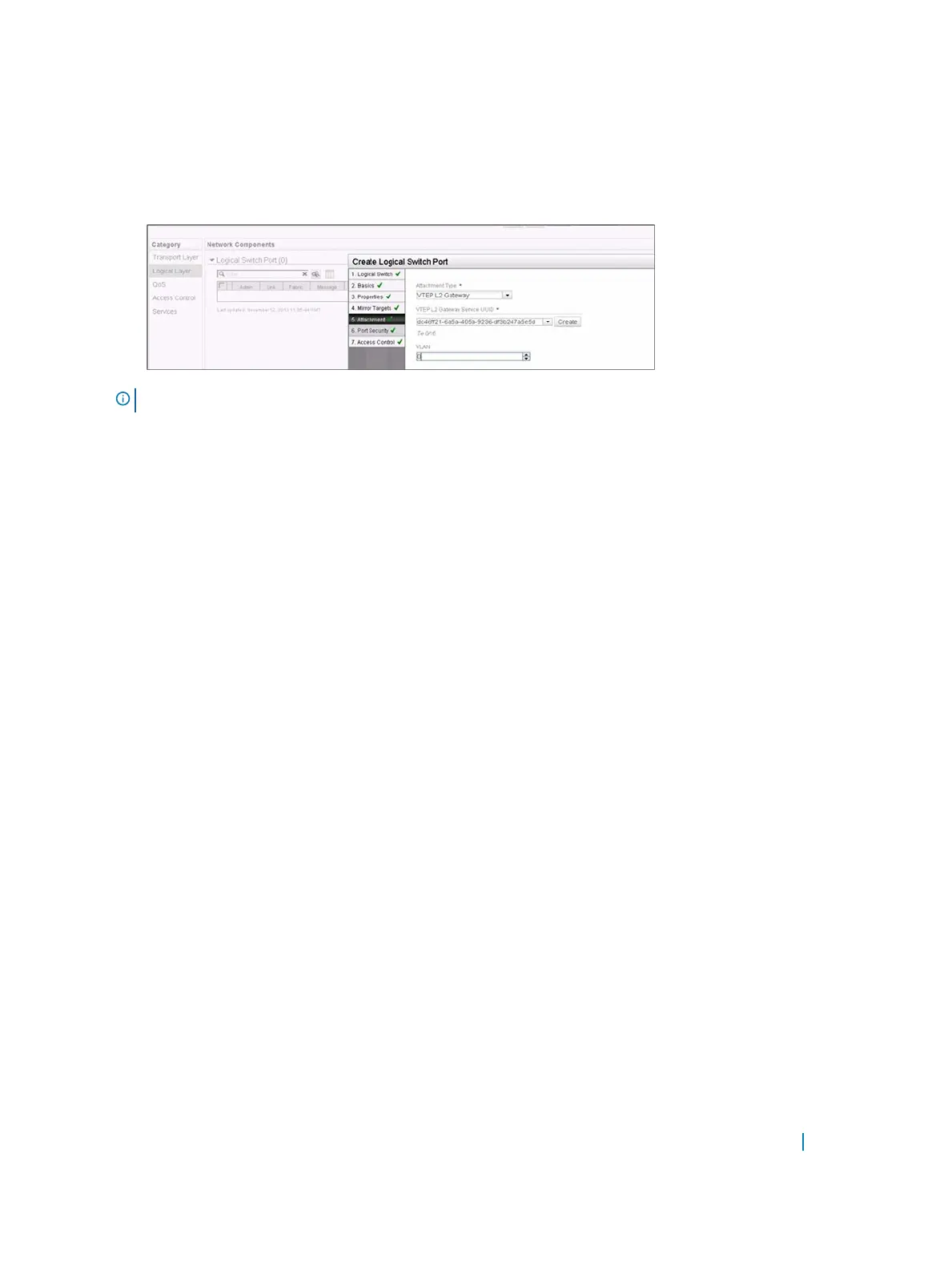

Figure 153. Create Logical Switch Port
NOTE: For more details about NVP controller configuration, refer to the NVP user guide from VMWare .
Configuring VxLAN Gateway
To configure the VxLAN gateway on the switch, follow these steps:
1 Connecting to NVP controller
2 Advertising VXLAN access ports to controller
Connecting to an NVP Controller
To connect to an NVP controller, use the following commands.
1 feature vxlan
CONFIGURATION mode
feature vxlan
You must configure feature VXLAN to configure vxlan-instance.
2 vxlan-instance
CONFIGURATION mode
vxlan-instance instance ID
The platform supports only the instance ID 1 in the initial release.
3 controller
VxLAN INSTANCE mode
controller controller IDip address port port-number tcp|ptcp|pssl|ssl
The port number range is from 1 to 6632. The default port number is 6632. The default connection type
is ssl.
