Enabling 802.1X

Enable 802.1X globally.

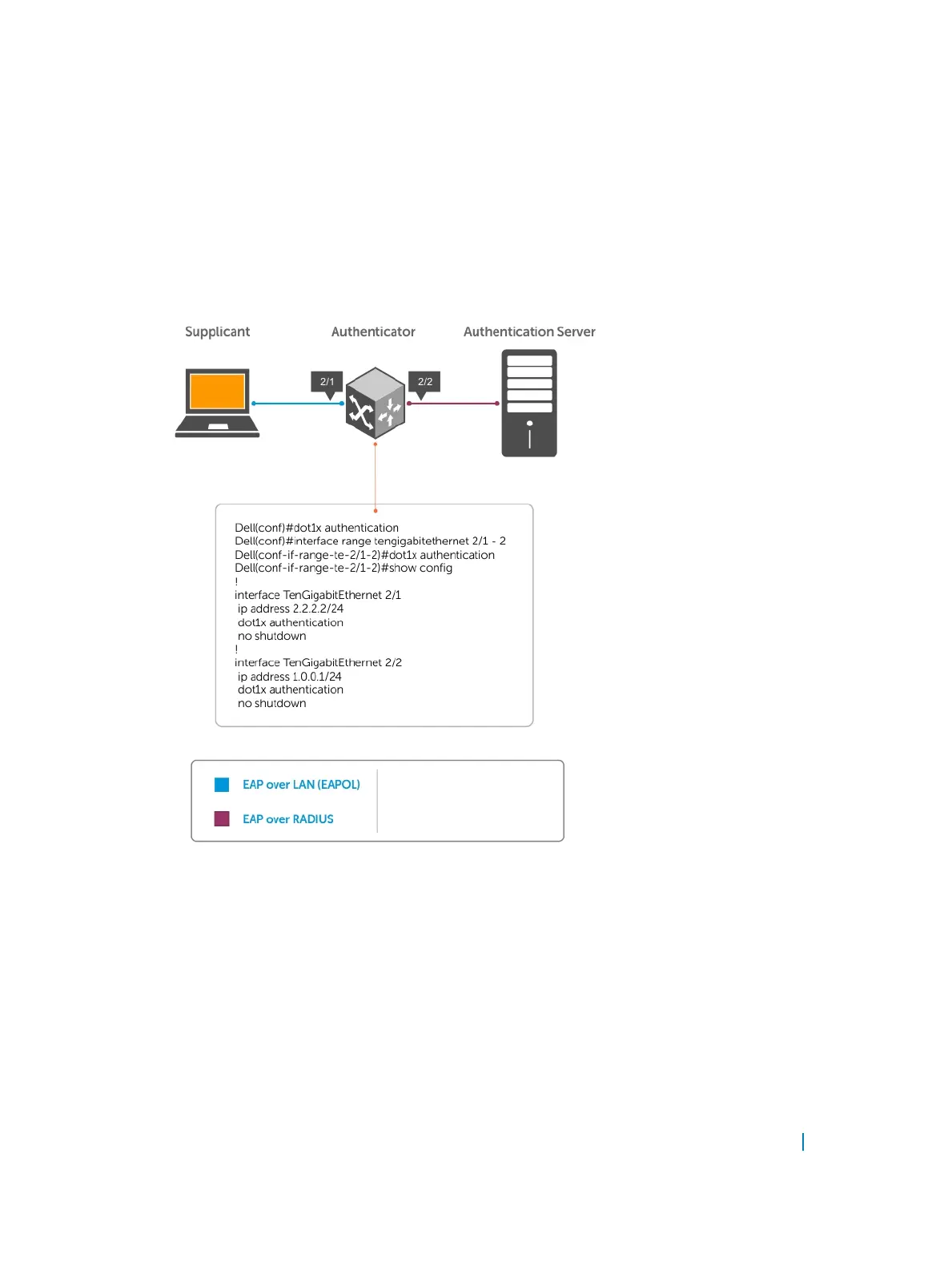

Figure 11. 802.1X Enabled

Enable 802.1X globally.

CONFIGURATION mode

dot1x authentication

2 Enter INTERFACE mode on an interface or a range of interfaces.

INTERFACE mode

interface [range]

3 Enable 802.1X on the supplicant interface only.

802.1X 120
