FIP Function Description
Logout On receiving a FLOGI packet, FSB deletes all existing
sessions from the ENode to the FCF.

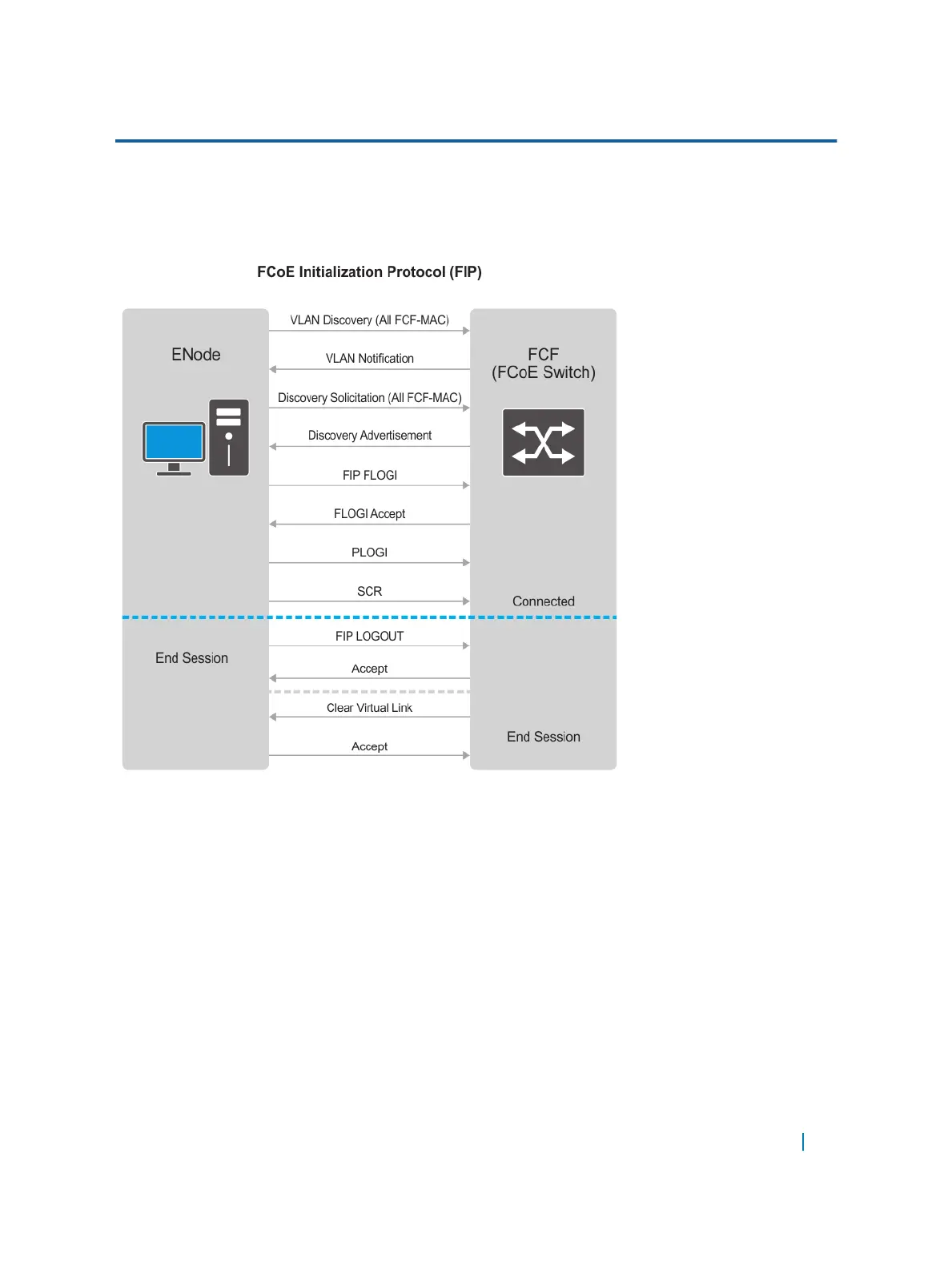

Figure 42. FIP Discovery and Login Between an ENode and an FCF
FIP Snooping on Ethernet Bridges
In a converged Ethernet network, intermediate Ethernet bridges can snoop on FIP packets during the login
process on an FCF. Then, using ACLs, a transit bridge can permit only authorized FCoE traffic to be
transmitted between an FCoE end-device and an FCF. An Ethernet bridge that provides these functions is
called a FIP snooping bridge (FSB).
On a FIP snooping bridge, ACLs are created dynamically as FIP login frames are processed. The ACLs are
installed on switch ports configured for ENode mode for server-facing ports and FCF mode for a trusted port
directly connected to an FCF.
Enable FIP snooping on the switch, configure the FIP snooping parameters, and configure CAM allocation for
FCoE. When you enable FIP snooping, all ports on the switch by default become ENode ports.
FIP Snooping 379
